SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

PowerEdge 860 (Intel Xeon X3220, 2.40 GHz)

CPU2006 license: 55 Test date: Jan-2007
Test sponsor: Dell Inc. Hardware Availability: Jan-2007
Tested by: Dell Inc. Software Availability: Oct-2006

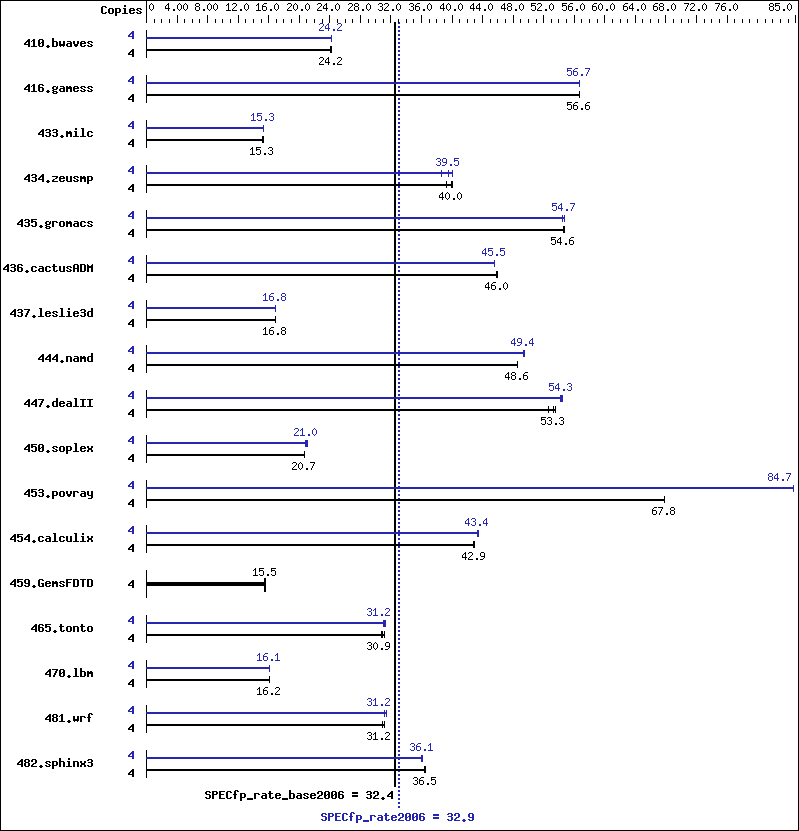

Benchmark results graph
Hardware
CPU Name: Intel Xeon X3220
CPU Characteristics: 1066MHz system bus
CPU MHz: 2400
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 4 GB (4x1 GB 667MHz ECC DDR2 SDRAM)
Disk Subsystem: 1 x 73GB SAS 10000 RPM
Other Hardware: None
Software
Operating System: Windows Server 2003 Standard Edition
Compiler: Intel C++ Compiler 9.1 for IA32 (20061103Z)
Intel FORTRAN Compiler 9.1 for IA32 (20061103Z)
Microsoft Visual Studio 2005 (8.0.50727.42)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: MicroQuill SmartHeap Library 8.0

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 2263 24.0 2244 24.2 2244 24.2 4 2243 24.2 2244 24.2 2244 24.2
416.gamess 4 1383 56.6 1382 56.7 1383 56.6 4 1383 56.6 1382 56.7 1383 56.7
433.milc 4 2413 15.2 2408 15.3 2407 15.3 4 2406 15.3 2408 15.3 2407 15.3
434.zeusmp 4 910 40.0 925 39.3 910 40.0 4 942 38.6 922 39.5 909 40.1
435.gromacs 4 523 54.6 523 54.6 522 54.7 4 522 54.7 522 54.7 524 54.5
436.cactusADM 4 1045 45.8 1039 46.0 1039 46.0 4 1050 45.5 1050 45.5 1049 45.6
437.leslie3d 4 2234 16.8 2233 16.8 2232 16.8 4 2233 16.8 2233 16.8 2232 16.8
444.namd 4 660 48.6 660 48.6 661 48.6 4 649 49.4 649 49.4 649 49.4
447.dealII 4 858 53.3 855 53.5 869 52.7 4 843 54.3 845 54.1 839 54.5
450.soplex 4 1617 20.6 1608 20.7 1614 20.7 4 1598 20.9 1586 21.0 1588 21.0
453.povray 4 314 67.8 314 67.8 314 67.8 4 251 84.7 251 84.7 251 84.7
454.calculix 4 771 42.8 769 42.9 769 42.9 4 761 43.4 761 43.3 760 43.4
459.GemsFDTD 4 2742 15.5 2733 15.5 2728 15.6 4 2742 15.5 2733 15.5 2728 15.6
465.tonto 4 1263 31.2 1278 30.8 1275 30.9 4 1262 31.2 1270 31.0 1259 31.3
470.lbm 4 3401 16.2 3400 16.2 3401 16.2 4 3403 16.1 3406 16.1 3403 16.2
481.wrf 4 1432 31.2 1434 31.2 1443 31.0 4 1434 31.2 1436 31.1 1420 31.5
482.sphinx3 4 2135 36.5 2146 36.3 2134 36.5 4 2161 36.1 2162 36.1 2161 36.1

General Notes

 Adjacent Sector Prefetch disabled in BIOS, default enabled
 32-bit binaries were built on Windows XP Professional x64 Edition

Base Compiler Invocation

C benchmarks:

 icl   -Qc99

C++ benchmarks:

 icl

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 -fast   /F512000000   shlW32M.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F512000000   shlW32M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   /F1000000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -fast   /F1000000000    -link /FORCE:MULTIPLE

Peak Compiler Invocation

C benchmarks:

 icl   -Qc99

C++ benchmarks:

 icl

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qc99   ifort

Peak Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

 ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F512000000   shlW32M.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx_features   /F512000000   shlW32M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F1000000000    -link /FORCE:MULTIPLE
416.gamess:  ONESTEP   -fast   /F1000000000    -link /FORCE:MULTIPLE
434.zeusmp:  Same as 410.bwaves
437.leslie3d:  Same as 410.bwaves
459.GemsFDTD:  basepeak = yes
465.tonto:  Same as 410.bwaves

Benchmarks using both Fortran and C:

435.gromacs:  -fast   /F1000000000    -link /FORCE:MULTIPLE
436.cactusADM:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F1000000000    -link /FORCE:MULTIPLE
454.calculix:  Same as 436.cactusADM
481.wrf:  Same as 435.gromacs

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/dell.cpu2006.ic91.flags.20090715.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/dell.cpu2006.ic91.flags.20090715.xml.
