SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

HP Integrity BL860c
(1.6GHz/18MB Dual-Core Intel Itanium 2)

SPECint®2006 = 15.2

CPU2006 license: 03 Test date: Jan-2007
Test sponsor: Hewlett-Packard Company Hardware Availability: Feb-2007
Tested by: Hewlett-Packard Company Software Availability: Feb-2007

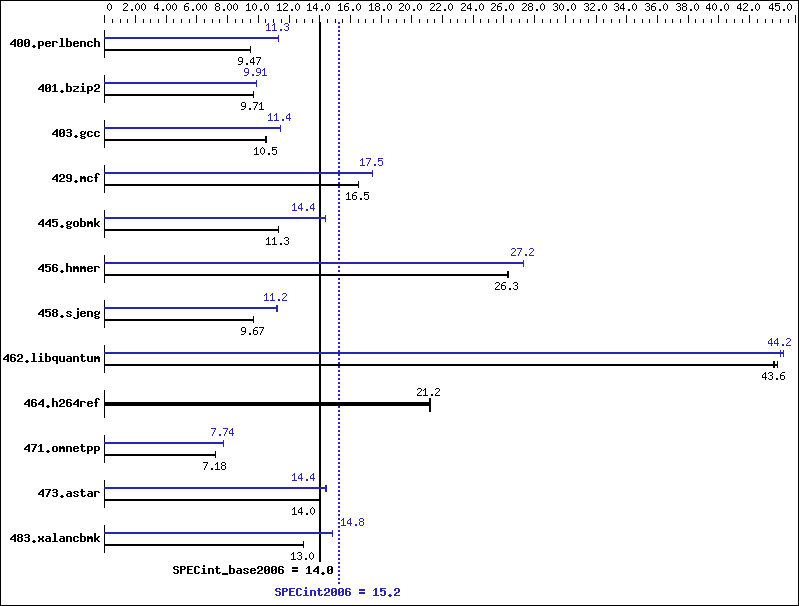

Benchmark results graph
Hardware
CPU Name: Dual-Core Intel Itanium 2 9040
CPU Characteristics: 1.6GHz/18MB, 533MHz FSB
CPU MHz: 1600
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1-2 chips
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 1 MB I + 256 KB D on chip per core
L3 Cache: 9 MB I+D on chip per core
Other Cache: None
Memory: 12 GB (12x1GB DIMMs)
Disk Subsystem: 73GB 10K RPM SAS
Other Hardware: None
Software
Operating System: HPUX11i-TCOE B.11.23.0609
Compiler: HP C/aC++ Developer's Bundle C.11.23.12
Auto Parallel: No
File System: vxfs
System State: Multi-user
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: MicroQuill Smartheap 8.0

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 1033 9.46 1031 9.48 1031 9.47 865 11.3  865 11.3  865 11.3
401.bzip2 994 9.71 994 9.70 994 9.71 974 9.91 974 9.91 974 9.91
403.gcc 765 10.5  767 10.5  765 10.5  704 11.4  703 11.5  704 11.4
429.mcf 552 16.5  552 16.5  552 16.5  522 17.5  524 17.4  522 17.5
445.gobmk 928 11.3  928 11.3  927 11.3  731 14.4  731 14.3  730 14.4
456.hmmer 355 26.3  355 26.3  355 26.3  342 27.2  342 27.2  342 27.2
458.sjeng 1252 9.66 1252 9.67 1251 9.67 1079 11.2  1079 11.2  1078 11.2
462.libquantum 475 43.6  476 43.6  473 43.8  469 44.2  469 44.2  471 44.0
464.h264ref 1046 21.2  1045 21.2  1044 21.2  1046 21.2  1045 21.2  1044 21.2
471.omnetpp 870 7.18 870 7.18 870 7.18 808 7.74 808 7.73 807 7.74
473.astar 503 14.0  503 14.0  503 14.0  487 14.4  487 14.4  487 14.4
483.xalancbmk 532 13.0  533 13.0  532 13.0  466 14.8  465 14.8  465 14.8

Operating System Notes

   The system had the September 2006 HP-UX 11i v2 Technical Computing
   Operating Environment (TCOE) and compilers installed, along with
   the following patches:

   PHSS_34858  linker + fdp cumulative patch
   PHSS_34853  Math Library Cumulative Patch
   PHSS_34854  Integrity Unwind Library
   PHSS_34855  HP C Compiler (A.06.12)
   PHSS_34856  aC++ Compiler (A.06.12)
   PHSS_34857  u2comp/be/plugin library patch
   PHSS_34395  FORTRAN I/O Library [libIO77]
   PHSS_34397  FORTRAN Intrinsics [libF90 B.11.23.17]
   PHSS_34399  Fortran Product Patch, v3.1 to v3.1.1
   PHKL_34020  Perfmon enhancements and Itanium Dual-Core

   The following kernel tunables were set, in addition to the defaults
   set by the Technical Computing OE:

   dbc_max_pct=20
   dbc_min_pct=20
   maxdsiz=3221225472
   maxssiz=401604608

Platform Notes

 The "cpuconfig" EFI command was used prior to booting
   to deconfigure processors.

Base Compiler Invocation

C benchmarks:

 /opt/ansic/bin/cc -Ae

C++ benchmarks:

 /opt/aCC/bin/aCC -Aa

Base Portability Flags

400.perlbench:  -DSPEC_CPU_HPUX_IA64
403.gcc:  -DSPEC_CPU_HPUX
462.libquantum:  -DSPEC_CPU_HPUX
483.xalancbmk:  -DSPEC_CPU_HPUX_IA64

Base Optimization Flags

C benchmarks:

 +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   -Wl,-N

C++ benchmarks:

 +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   -Wl,-N   /usr/lib/hpux32/libCsup.a /opt/smartheap/SmartHeap_8/lib/libsmartheap.a

Peak Compiler Invocation

C benchmarks:

 /opt/ansic/bin/cc -Ae

C++ benchmarks:

 /opt/aCC/bin/aCC -Aa

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_HPUX_IA64
403.gcc:  -DSPEC_CPU_HPUX
462.libquantum:  -DSPEC_CPU_HPUX
483.xalancbmk:  -DSPEC_CPU_HPUX_IA64

Peak Optimization Flags

C benchmarks:

400.perlbench:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   -Wl,-N
401.bzip2:  Same as 400.perlbench
403.gcc:  Same as 400.perlbench
429.mcf:  Same as 400.perlbench
445.gobmk:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Odataprefetch=direct
456.hmmer:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M
458.sjeng:  Same as 445.gobmk
462.libquantum:  Same as 456.hmmer
464.h264ref:  basepeak = yes

C++ benchmarks:

471.omnetpp:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   /usr/lib/hpux32/libCsup.a /opt/smartheap/SmartHeap_8/lib/libsmartheap.a
473.astar:  +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Onoparmsoverlap   /usr/lib/hpux32/libCsup.a /opt/smartheap/SmartHeap_8/lib/libsmartheap.a
483.xalancbmk:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Onoparmsoverlap   /usr/lib/hpux32/libCsup.a /opt/smartheap/SmartHeap_8/lib/libsmartheap.a

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.07.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.07.xml.
