| CPU2006 license: | 13 | Test date: | Jan-2007 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Aug-2006 |
| Tested by: | Intel Corporation | Software Availability: | Aug-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Pentium D 950 |
| CPU Characteristics: | 3.4 GHz, 800 MHz bus |
| CPU MHz: | 3400 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 12 K micro-ops I + 16 KB D on chip per core |
| Secondary Cache: | 2 MB I+D on chip per core |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 2 GB (2 1GB Micron MT16HTF12864AY-80ED4 DDR2 800, CL5) |
| Disk Subsystem: | Maxtor DiamondMax 10 6B300S0 300GB NCQ Serial ATA (7200 RPM, 16MB cache) |
| Other Hardware: | SoundBlaster Live! PCI card |
| Software | |
|---|---|
| Operating System: | Windows XP Professional w/ SP2 |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Build no 20060816 Microsoft Visual Studio .Net 2003 (for libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | Not Applicable |
| Other Software: | SmartHeap Library Version 8.0 from http://www.microquill.com/ |

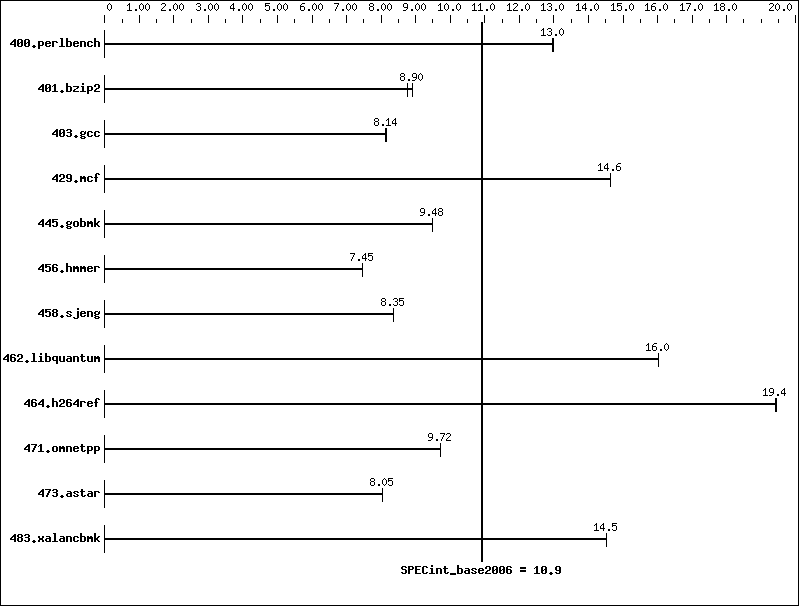

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 754 | 13.0 | 753 | 13.0 | 753 | 13.0 | ||||||
| 401.bzip2 | 1084 | 8.90 | 1101 | 8.77 | 1085 | 8.90 | ||||||
| 403.gcc | 989 | 8.14 | 992 | 8.12 | 989 | 8.14 | ||||||
| 429.mcf | 623 | 14.6 | 623 | 14.6 | 623 | 14.6 | ||||||
| 445.gobmk | 1107 | 9.48 | 1107 | 9.48 | 1107 | 9.48 | ||||||
| 456.hmmer | 1253 | 7.45 | 1253 | 7.45 | 1253 | 7.45 | ||||||
| 458.sjeng | 1450 | 8.35 | 1449 | 8.35 | 1449 | 8.35 | ||||||
| 462.libquantum | 1293 | 16.0 | 1293 | 16.0 | 1293 | 16.0 | ||||||
| 464.h264ref | 1140 | 19.4 | 1139 | 19.4 | 1139 | 19.4 | ||||||
| 471.omnetpp | 643 | 9.72 | 643 | 9.72 | 643 | 9.72 | ||||||
| 473.astar | 873 | 8.05 | 872 | 8.05 | 873 | 8.04 | ||||||
| 483.xalancbmk | 475 | 14.5 | 475 | 14.5 | 476 | 14.5 | ||||||
General Notes
Tested systems can be used with Shin-G ATX case, Antec NeoPower 480W power supply Product description located as of 1/2007: http://www.intel.com/products/motherboard/DG965WH/index.htm The system bus runs at 800 MHz
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
