SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Intel Corporation

Intel DG965WH motherboard
(3.2 GHz, Intel Pentium D processor 940)

SPECfp®2006 = Not Run

CPU2006 license: 13 Test date: Jan-2007
Test sponsor: Intel Corporation Hardware Availability: Aug-2006
Tested by: Intel Corporation Software Availability: Aug-2006

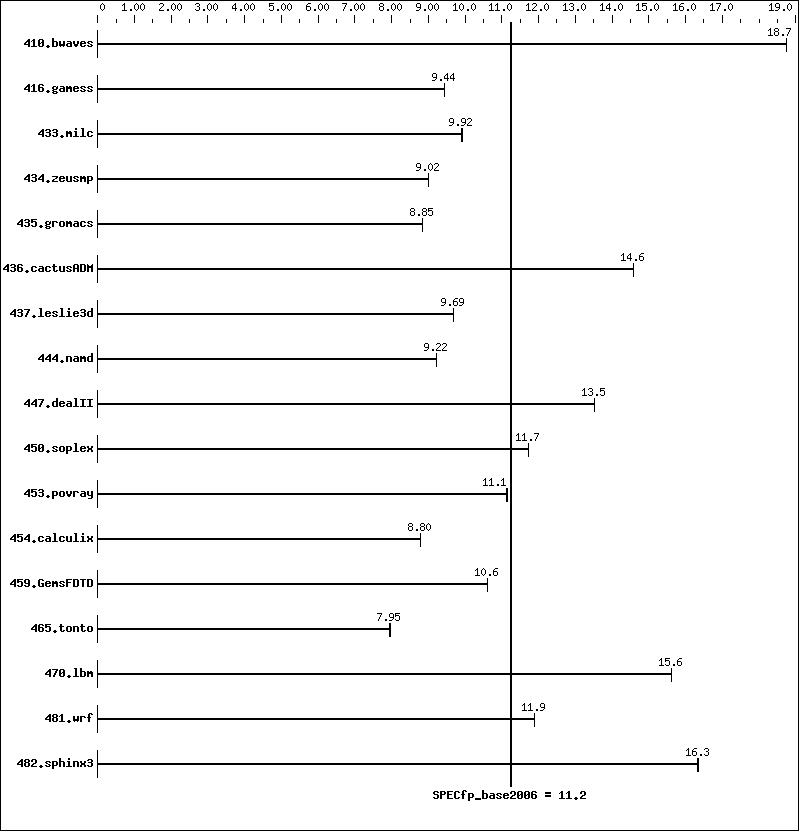

Benchmark results graph
Hardware
CPU Name: Intel Pentium D 940
CPU Characteristics: 3.20 GHz, 800 MHz bus
CPU MHz: 3200
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 12 K micro-ops I + 16 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 2 GB (2 1GB Micron MT16HTF12864AY-80ED4 DDR2 800,
CL5)
Disk Subsystem: Maxtor DiamondMax 10 6B300S0 300GB NCQ Serial ATA
(7200 RPM, 16MB cache)
Other Hardware: SoundBlaster Live! PCI card
Software
Operating System: Windows XP Professional w/ SP2
Compiler: Intel C++ and Fortran Compiler for IA32 version
9.1
Build no 20060816
Microsoft Visual Studio .Net 2003 (for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: Not Applicable
Other Software: SmartHeap Library Version 8.0 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 725 18.7  725 18.7  725 18.8
416.gamess 2074 9.44 2074 9.44 2074 9.44
433.milc 926 9.92 926 9.92 926 9.91
434.zeusmp 1009 9.02 1009 9.02 1009 9.02
435.gromacs 807 8.85 807 8.85 807 8.85
436.cactusADM 820 14.6  820 14.6  820 14.6
437.leslie3d 969 9.70 970 9.69 970 9.69
444.namd 870 9.22 870 9.22 870 9.22
447.dealII 847 13.5  847 13.5  847 13.5
450.soplex 711 11.7  712 11.7  712 11.7
453.povray 478 11.1  478 11.1  478 11.1
454.calculix 938 8.80 938 8.80 938 8.80
459.GemsFDTD 1000 10.6  1000 10.6  1000 10.6
465.tonto 1238 7.95 1236 7.96 1238 7.95
470.lbm 880 15.6  881 15.6  880 15.6
481.wrf 939 11.9  939 11.9  939 11.9
482.sphinx3 1193 16.3  1193 16.3  1192 16.4

General Notes

 Tested systems can be used with Shin-G ATX case, Antec NeoPower 480W power supply
 Product description located as of 1/2007:
 http://www.intel.com/products/motherboard/DG965WH/index.htm
 The system bus runs at 800 MHz
 System was configured with Single nVidia Quad SLI Geforce 7950 GX2

Base Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc7.1   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 -fast   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   /F950000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -fast   /F950000000    -link /FORCE:MULTIPLE

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic91-flags.20090715.06.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic91-flags.20090715.06.xml.
