SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM BladeCenter HS21 XM (Intel Xeon E5310)

SPECfp®_rate2006 = Not Run

CPU2006 license: 11 Test date: Jan-2007
Test sponsor: IBM Corporation Hardware Availability: Feb-2007
Tested by: IBM Corporation Software Availability: Aug-2006

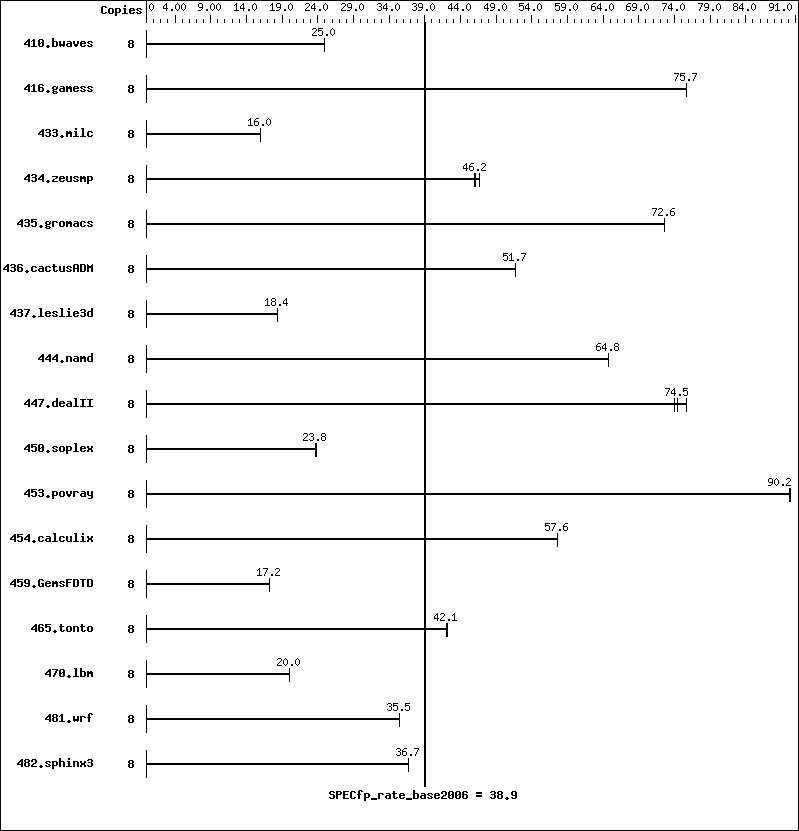

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5310
CPU Characteristics: 1066MHz system bus
CPU MHz: 1600
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8 x 2GB DDR2-5300F ECC)
Disk Subsystem: 1 x 74 GB SAS, 1000 RPM
Other Hardware: None
Software
Operating System: Microsoft Windows Server 2003 Enterprise x64
Edition + SP1 (64-bit)
Compiler: Intel C++ Compiler for IA32 version 9.1
Build no 20060816
Intel Fortran Compiler for IA32 version 9.1
Build no 20060816
Microsoft Visual Studio .Net 2003 (for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: Not Applicable
Other Software: Smart Heap Library, Version 8

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 4352 25.0 4351 25.0 4351 25.0
416.gamess 8 2068 75.7 2069 75.7 2068 75.8
433.milc 8 4592 16.0 4596 16.0 4594 16.0
434.zeusmp 8 1560 46.7 1586 45.9 1577 46.2
435.gromacs 8 787 72.6 787 72.6 787 72.6
436.cactusADM 8 1849 51.7 1849 51.7 1848 51.7
437.leslie3d 8 4086 18.4 4086 18.4 4085 18.4
444.namd 8 990 64.8 990 64.8 990 64.8
447.dealII 8 1209 75.7 1236 74.0 1229 74.5
450.soplex 8 2809 23.8 2809 23.7 2808 23.8
453.povray 8 471 90.3 472 90.2 472 90.2
454.calculix 8 1146 57.6 1146 57.6 1145 57.7
459.GemsFDTD 8 4939 17.2 4932 17.2 4937 17.2
465.tonto 8 1865 42.2 1872 42.1 1871 42.1
470.lbm 8 5487 20.0 5488 20.0 5487 20.0
481.wrf 8 2524 35.4 2518 35.5 2518 35.5
482.sphinx3 8 4244 36.7 4246 36.7 4243 36.7

Base Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc7.1   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 -fast   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   /F950000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -fast   /F950000000    -link /FORCE:MULTIPLE

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic91-flags.20090714.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic91-flags.20090714.xml.
