SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM BladeCenter HS21 XM (Intel Xeon 5160)

SPECfp®_rate2006 = Not Run

CPU2006 license: 11 Test date: Jan-2007
Test sponsor: IBM Corporation Hardware Availability: Feb-2007
Tested by: IBM Corporation Software Availability: Aug-2006

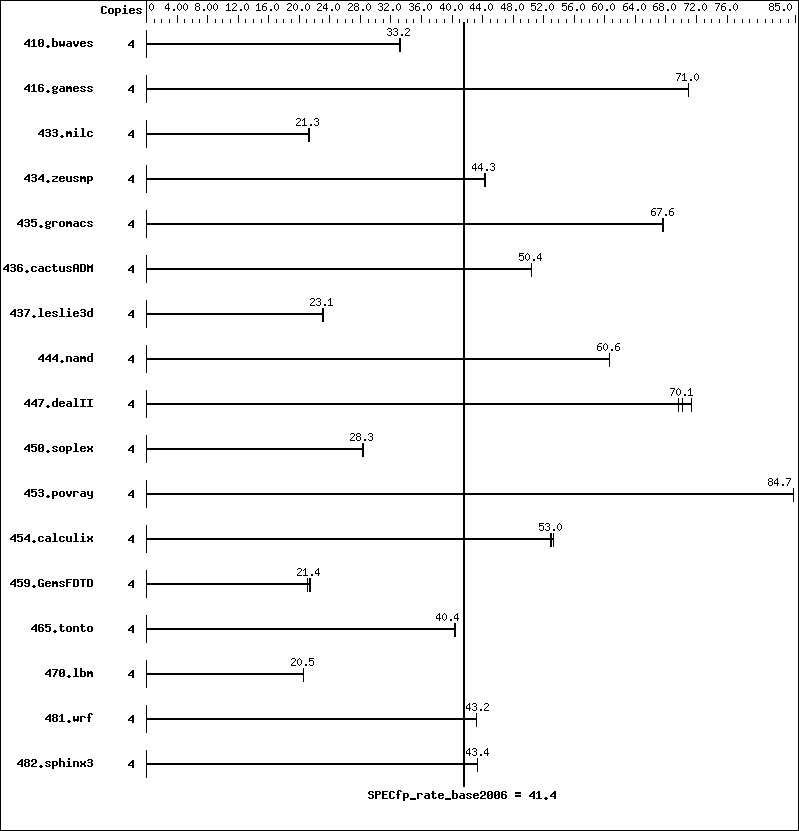

Benchmark results graph
Hardware
CPU Name: Intel Xeon 5160
CPU Characteristics: 1333MHz system bus
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 16 GB (8 x 2GB DDR2-5300F ECC)
Disk Subsystem: 1 x 74 GB SAS, 1000 RPM
Other Hardware: None
Software
Operating System: Microsoft Windows Server 2003 Enterprise x64
Edition + SP1 (64-bit)
Compiler: Intel C++ Compiler for IA32 version 9.1
Build no 20060816
Intel Fortran Compiler for IA32 version 9.1
Build no 20060816
Microsoft Visual Studio .Net 2003 (for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: Not Applicable
Other Software: Smart Heap Library, Version 8

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 1638 33.2 1637 33.2 1642 33.1
416.gamess 4 1103 71.0 1103 71.0 1103 71.0
433.milc 4 1728 21.2 1727 21.3 1723 21.3
434.zeusmp 4 822 44.3 820 44.4 823 44.2
435.gromacs 4 422 67.7 422 67.6 423 67.6
436.cactusADM 4 949 50.4 949 50.4 949 50.4
437.leslie3d 4 1627 23.1 1628 23.1 1629 23.1
444.namd 4 529 60.7 529 60.6 530 60.6
447.dealII 4 652 70.1 642 71.3 657 69.6
450.soplex 4 1178 28.3 1178 28.3 1172 28.5
453.povray 4 251 84.8 251 84.7 251 84.7
454.calculix 4 620 53.3 622 53.0 624 52.8
459.GemsFDTD 4 1983 21.4 2011 21.1 1982 21.4
465.tonto 4 978 40.3 974 40.4 972 40.5
470.lbm 4 2680 20.5 2680 20.5 2680 20.5
481.wrf 4 1035 43.2 1035 43.2 1034 43.2
482.sphinx3 4 1796 43.4 1797 43.4 1797 43.4

Base Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc7.1   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 -fast   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   /F950000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -fast   /F950000000    -link /FORCE:MULTIPLE

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic91-flags.20090714.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic91-flags.20090714.xml.
