SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

ProLiant ML370 G5
(2.66 GHz, Intel Xeon processor X5355)

CPU2006 license: 3 Test date: Feb-2007
Test sponsor: Hewlett-Packard Company Hardware Availability: Jan-2007
Tested by: Hewlett-Packard Company Software Availability: Nov-2006

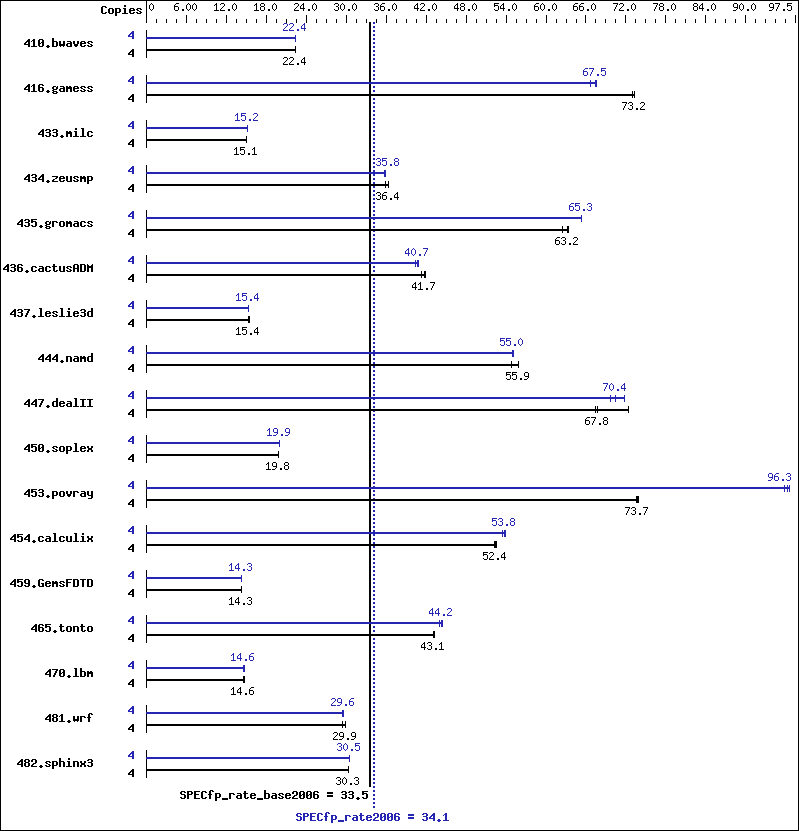

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5355
CPU Characteristics: 2.66 GHz, 2x4 MB L2 shared, 1333MHz system bus
CPU MHz: 2666
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2 GB PC2-5300 CL5)
Disk Subsystem: 2x72 GB 10k SAS
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (x86_64)
kernel 2.6.16.21-0.8-smp
Compiler: Intel C++ Compiler for Intel EM64T-based
applications, Version 9.1
Build 20061101, Package ID: l_cc_c_9.1.045
Intel Fortran Compiler for Intel EM64T-based
applications, Version 9.1
Build 20061101, Package ID: l_fc_c_9.1.040
Auto Parallel: No
File System: ext2
System State: Multi-user run level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 2428 22.4 2432 22.4 2431 22.4 4 2431 22.4 2432 22.4 2425 22.4
416.gamess 4 1074 72.9 1069 73.3 1069 73.2 4 1173 66.7 1160 67.5 1159 67.6
433.milc 4 2439 15.1 2438 15.1 2440 15.0 4 2421 15.2 2419 15.2 2419 15.2
434.zeusmp 4 1001 36.4 1013 35.9 1000 36.4 4 1019 35.7 1014 35.9 1018 35.8
435.gromacs 4 451 63.4 457 62.5 452 63.2 4 437 65.3 437 65.4 437 65.3
436.cactusADM 4 1139 42.0 1145 41.7 1158 41.3 4 1182 40.4 1172 40.8 1173 40.7
437.leslie3d 4 2433 15.5 2449 15.4 2451 15.3 4 2446 15.4 2446 15.4 2446 15.4
444.namd 4 574 55.9 574 55.9 585 54.9 4 583 55.0 582 55.1 584 55.0
447.dealII 4 679 67.4 675 67.8 632 72.4 4 656 69.7 650 70.4 637 71.9
450.soplex 4 1678 19.9 1682 19.8 1686 19.8 4 1674 19.9 1675 19.9 1675 19.9
453.povray 4 289 73.7 289 73.6 288 73.9 4 221 96.5 221 96.3 222 95.8
454.calculix 4 628 52.5 630 52.4 632 52.2 4 612 53.9 613 53.8 617 53.4
459.GemsFDTD 4 2969 14.3 2965 14.3 2963 14.3 4 2965 14.3 2972 14.3 2964 14.3
465.tonto 4 909 43.3 914 43.1 913 43.1 4 886 44.4 890 44.2 895 44.0
470.lbm 4 3755 14.6 3765 14.6 3754 14.6 4 3754 14.6 3765 14.6 3753 14.6
481.wrf 4 1515 29.5 1496 29.9 1496 29.9 4 1517 29.4 1508 29.6 1512 29.6
482.sphinx3 4 2567 30.4 2573 30.3 2571 30.3 4 2560 30.4 2559 30.5 2559 30.5

Platform Notes

Power Regulator set to Static High Performance Mode in BIOS.
Adjacent Sector Prefetch Disabled in BIOS.
"start /b /wait /affinity" used to bind processes to CPU(s).
"ulimit -s unlimited" set

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

C++ benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

Fortran benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast

Benchmarks using both Fortran and C:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/hp-ic91-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/hp-ic91-flags.xml.
