SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Bull SAS

Bull Escala PL250R+ (2100 MHz, 2 CPU)

CPU2006 license: 20 Test date: Feb-2007
Test sponsor: Bull SAS Hardware Availability: Feb-2006
Tested by: Bull SAS Software Availability: Dec-2006

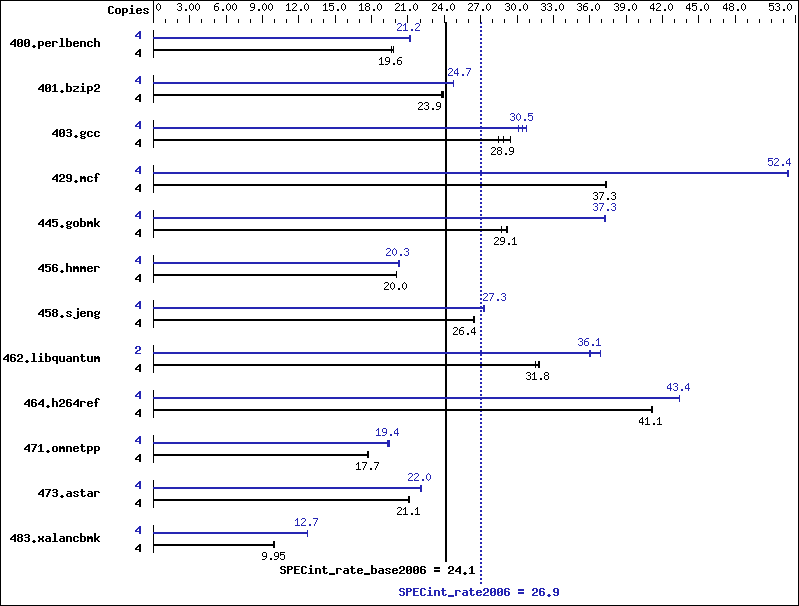

Benchmark results graph
Hardware
CPU Name: POWER5+
CPU Characteristics:
CPU MHz: 2100
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip, 2 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 64 KB I + 32 KB D on chip per core
Secondary Cache: 1920 KB I+D on chip per chip
L3 Cache: 36 MB I+D off chip per chip
Other Cache: None
Memory: 32 GB (8x4 GB)
Disk Subsystem: 1x73 GB SCSI, 15K RPM
Other Hardware: None
Software
Operating System: AIX 5L V5.3
Compiler: XL C/C++ Enterprise Edition Version 8.0 for AIX
with the December 2006 PTF
XL Fortran Enterprise Edition Version 10.1 for AIX
with the November 2006 PTF
Auto Parallel: No
File System: AIX/JFS2
System State: Multi-user
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: ESSL 4.2.0.4

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 4 1993 19.6  1992 19.6  1974 19.8  4 1844 21.2 1847 21.2 1848 21.1
401.bzip2 4 1617 23.9  1612 23.9  1622 23.8  4 1557 24.8 1561 24.7 1560 24.7
403.gcc 4 1094 29.4  1115 28.9  1130 28.5  4 1056 30.5 1046 30.8 1069 30.1
429.mcf 4 976 37.4  979 37.3  978 37.3  4 696 52.4 696 52.4 697 52.4
445.gobmk 4 1440 29.1  1460 28.7  1436 29.2  4 1129 37.2 1124 37.3 1126 37.3
456.hmmer 4 1862 20.0  1864 20.0  1861 20.1  4 1844 20.2 1843 20.3 1842 20.3
458.sjeng 4 1830 26.4  1831 26.4  1830 26.5  4 1775 27.3 1775 27.3 1774 27.3
462.libquantum 4 2601 31.9  2608 31.8  2630 31.5  2 1124 36.9 1149 36.1 1152 36.0
464.h264ref 4 2155 41.1  2151 41.1  2152 41.1  4 2038 43.4 2039 43.4 2040 43.4
471.omnetpp 4 1410 17.7  1410 17.7  1415 17.7  4 1285 19.5 1294 19.3 1287 19.4
473.astar 4 1328 21.1  1331 21.1  1337 21.0  4 1276 22.0 1268 22.1 1274 22.0
483.xalancbmk 4 2775 9.95 2773 9.95 2783 9.92 4 2174 12.7 2172 12.7 2172 12.7

Operating System Notes


 ulimits set to unlimited

 bindprocessor command used on submit to bind each copy to a
 unique processor.

 Large page mode was set as follows:
 vmo -r -o lgpg_regions=900 -o lgpg_size=16777216
 SMT was ebabled using the AIX commands
 smtctl -m on -w boot
 bosboot -aD
 shutdown -rF

Base Compiler Invocation

C benchmarks:

 /usr/vac/bin/xlc

C++ benchmarks:

 /usr/vacpp/bin/xlC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_AIX
462.libquantum:  -DSPEC_CPU_AIX
464.h264ref:  -DSPEC_CPU_AIX   -qchars=signed
483.xalancbmk:  -DSPEC_CPU_AIX

Base Optimization Flags

C benchmarks:

 -qlanglvl=extc99   -O4   -qlargepage   -D_ILS_MACROS   -qalloca   -qipa=noobject   -blpdata   -qipa=threads

C++ benchmarks:

 -O4   -qlargepage   -D_ILS_MACROS   -qrtti=all   -qipa=noobject   -blpdata   -qipa=threads

Base Other Flags

C benchmarks:

 -bmaxdata:0x50000000   -qalias=noansi   -qsuppress=1500-036

C++ benchmarks:

 -bmaxdata:0x20000000   -qsuppress=1500-036

Peak Compiler Invocation

C benchmarks:

 /usr/vac/bin/xlc

C++ benchmarks:

 /usr/vacpp/bin/xlC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_AIX
462.libquantum:  -DSPEC_CPU_AIX
464.h264ref:  -DSPEC_CPU_AIX   -qchars=signed
483.xalancbmk:  -DSPEC_CPU_AIX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -qlanglvl=extc99   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -D_ILS_MACROS   -qipa=noobject   -blpdata   -qipa=threads
401.bzip2:  Same as 400.perlbench
403.gcc:  -qlanglvl=extc99   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -D_ILS_MACROS   -qalloca   -qipa=noobject   -blpdata   -qipa=threads
429.mcf:  -qlanglvl=extc99   -O5   -qlargepage   -D_ILS_MACROS   -qarch=pwr4   -qipa=noobject   -blpdata   -qipa=threads
445.gobmk:  -qlanglvl=extc99   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qlargepage   -D_ILS_MACROS   -qipa=noobject   -blpdata   -qipa=threads
456.hmmer:  -qlanglvl=extc99   -O4   -qlargepage   -D_ILS_MACROS   -qipa=noobject   -blpdata   -qipa=threads
458.sjeng:  Same as 445.gobmk
462.libquantum:  -qlanglvl=extc99   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qlargepage   -D_ILS_MACROS   -q64   -qipa=noobject   -blpdata   -qipa=threads
464.h264ref:  Same as 400.perlbench

C++ benchmarks:

471.omnetpp:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -D_ILS_MACROS   -qalign=natural   -qrtti=all   -D__IBM_FAST_VECTOR   -qipa=noobject   -blpdata   -qipa=threads
473.astar:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -D_ILS_MACROS   -D__IBM_ENABLE_POOLED_ALLOCATORS__   -qipa=noobject   -blpdata   -qipa=threads
483.xalancbmk:  Same as 473.astar

Peak Other Flags

C benchmarks (except as noted below):

 -qfdpr   -qsuppress=1500-036
400.perlbench:  -bmaxdata:0x50000000   -qalias=noansi   -qsuppress=1500-036
401.bzip2:  -bmaxdata:0x50000000   -qsuppress=1500-036
403.gcc:  -bmaxdata:0x50000000   -qsuppress=1500-036
429.mcf:  -bmaxdata:0x50000000   -qfdpr   -qsuppress=1500-036
458.sjeng:  -qsuppress=1500-036
464.h264ref:  -qsuppress=1500-036

C++ benchmarks:

 -bmaxdata:0x20000000   -qsuppress=1500-036

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.19.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.19.xml.
