SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

ProLiant BL480c
(2.66 GHz, Intel Xeon processor X5355)

SPECfp®2006 = 14.5

CPU2006 license: 3 Test date: Feb-2007
Test sponsor: Hewlett-Packard Company Hardware Availability: Jan-2007
Tested by: Hewlett-Packard Company Software Availability: Nov-2006

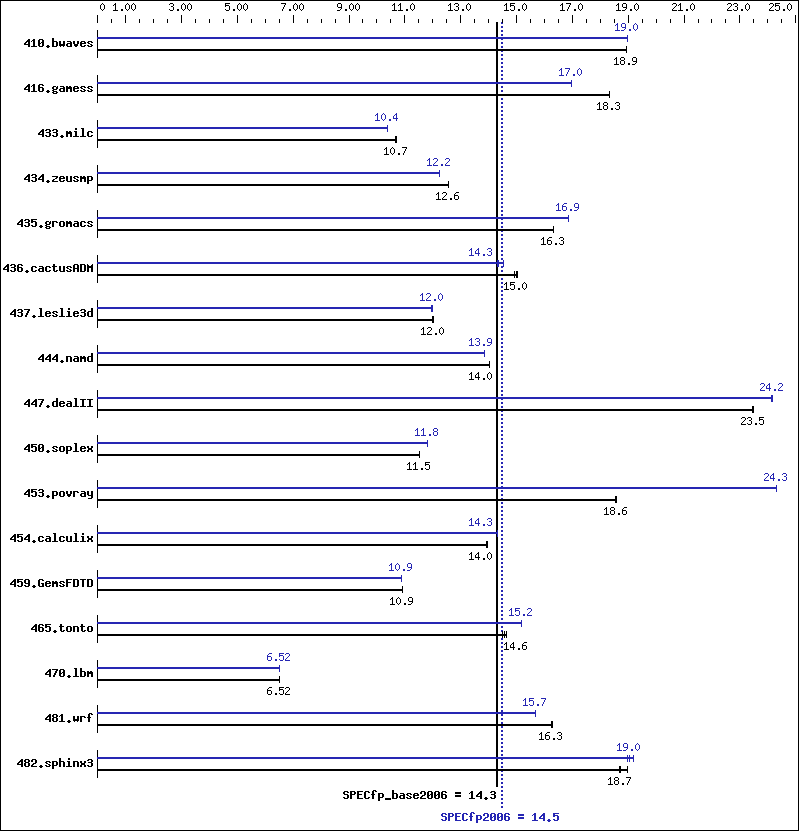

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5355
CPU Characteristics: 2.66 GHz, 2x4 MB L2 shared, 1333MHz system bus
CPU MHz: 2666
FPU: Integrated
CPU(s) enabled: 1 core, 1 chip, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2 GB PC2-5300F CL5)
Disk Subsystem: 1x72 GB 10k SAS
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (x86_64)
kernel 2.6.16.21-0.8-default
Compiler: Intel C++ Compiler for Intel EM64T-based
applications, Version 9.1
Build 20061101, Package ID: l_cc_c_9.1.045
Intel Fortran Compiler for Intel EM64T-based
applications, Version 9.1
Build 20061101, Package ID: l_fc_c_9.1.040
Auto Parallel: No
File System: ext2
System State: Multi-user run level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 718 18.9  718 18.9  717 18.9  716 19.0  716 19.0  716 19.0
416.gamess 1068 18.3  1068 18.3  1068 18.3  1154 17.0  1155 17.0  1154 17.0
433.milc 859 10.7  859 10.7  859 10.7  885 10.4  885 10.4  886 10.4
434.zeusmp 723 12.6  724 12.6  723 12.6  743 12.2  744 12.2  744 12.2
435.gromacs 437 16.3  437 16.3  438 16.3  424 16.8  423 16.9  423 16.9
436.cactusADM 796 15.0  797 15.0  801 14.9  834 14.3  833 14.3  822 14.5
437.leslie3d 782 12.0  784 12.0  783 12.0  784 12.0  784 12.0  786 12.0
444.namd 571 14.0  571 14.0  571 14.0  579 13.9  580 13.8  579 13.9
447.dealII 487 23.5  488 23.4  487 23.5  473 24.2  473 24.2  474 24.1
450.soplex 723 11.5  723 11.5  723 11.5  706 11.8  706 11.8  706 11.8
453.povray 287 18.5  286 18.6  287 18.6  219 24.3  219 24.3  219 24.3
454.calculix 591 14.0  592 13.9  591 14.0  577 14.3  576 14.3  576 14.3
459.GemsFDTD 971 10.9  971 10.9  971 10.9  976 10.9  976 10.9  976 10.9
465.tonto 673 14.6  679 14.5  676 14.6  648 15.2  648 15.2  649 15.2
470.lbm 2106 6.52 2107 6.52 2107 6.52 2105 6.53 2107 6.52 2107 6.52
481.wrf 688 16.2  686 16.3  687 16.3  713 15.7  712 15.7  712 15.7
482.sphinx3 1028 19.0  1044 18.7  1040 18.7  1015 19.2  1023 19.0  1027 19.0

Platform Notes

Power Regulator set to Static High Performance Mode in BIOS.
Adjacent Sector Prefetch Disabled in BIOS.
"/usr/bin/taskset" used to bind processes to CPUs.
Environment stack size set to 'unlimited'
Single user Kernel used

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

C++ benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

Fortran benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast

Benchmarks using both Fortran and C:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/hp-ic91-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/hp-ic91-flags.xml.
