SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

ProLiant BL480c
(2.66 GHz, Intel Xeon processor X5355)

CPU2006 license: 3 Test date: Feb-2007
Test sponsor: Hewlett-Packard Company Hardware Availability: Jan-2007
Tested by: Hewlett-Packard Company Software Availability: Nov-2006

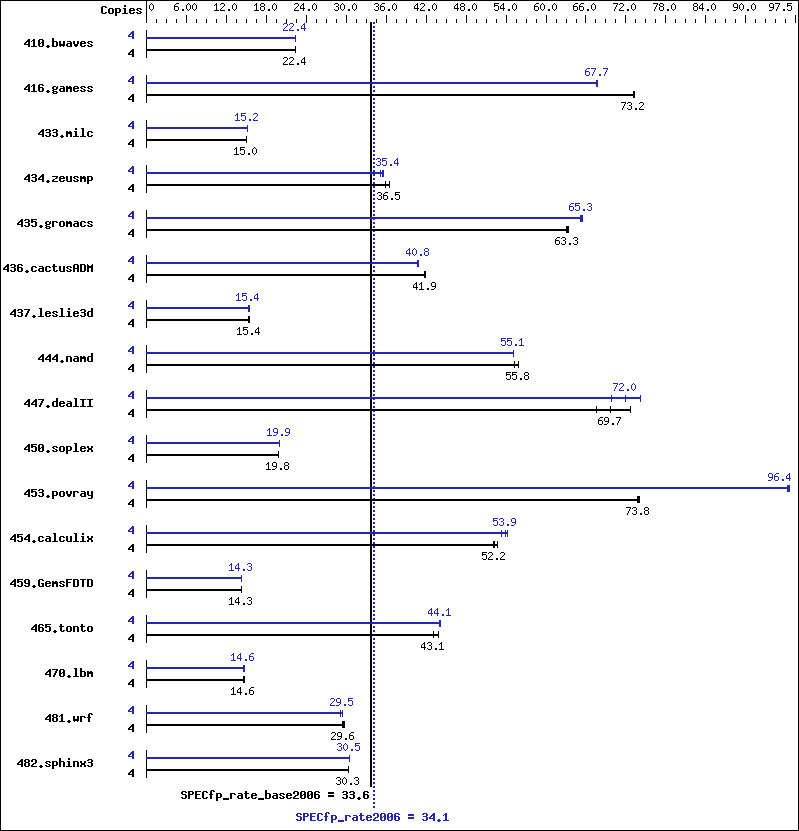

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5355
CPU Characteristics: 2.66 GHz, 2x4 MB L2 shared, 1333MHz system bus
CPU MHz: 2666
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2 GB PC2-5300F CL5)
Disk Subsystem: 1x72 GB 10k SAS
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (x86_64)
kernel 2.6.16.21-0.8-smp
Compiler: Intel C++ Compiler for Intel EM64T-based
applications, Version 9.1
Build 20061101, Package ID: l_cc_c_9.1.045
Intel Fortran Compiler for Intel EM64T-based
applications, Version 9.1
Build 20061101, Package ID: l_fc_c_9.1.040
Auto Parallel: No
File System: ext2
System State: Multi-user run level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 2434 22.3 2429 22.4 2431 22.4 4 2430 22.4 2428 22.4 2433 22.3
416.gamess 4 1069 73.2 1070 73.2 1070 73.2 4 1157 67.7 1157 67.7 1160 67.5
433.milc 4 2447 15.0 2444 15.0 2444 15.0 4 2420 15.2 2420 15.2 2420 15.2
434.zeusmp 4 997 36.5 996 36.5 1013 35.9 4 1021 35.6 1035 35.2 1028 35.4
435.gromacs 4 453 63.1 451 63.3 451 63.3 4 438 65.3 436 65.5 438 65.2
436.cactusADM 4 1144 41.8 1142 41.9 1140 41.9 4 1172 40.8 1170 40.9 1175 40.7
437.leslie3d 4 2435 15.4 2442 15.4 2443 15.4 4 2445 15.4 2452 15.3 2442 15.4
444.namd 4 574 55.9 580 55.3 575 55.8 4 583 55.1 582 55.1 582 55.2
447.dealII 4 676 67.6 657 69.7 629 72.7 4 636 72.0 616 74.3 655 69.9
450.soplex 4 1681 19.8 1681 19.8 1682 19.8 4 1671 20.0 1675 19.9 1673 19.9
453.povray 4 288 73.8 288 74.0 288 73.8 4 221 96.2 221 96.4 220 96.5
454.calculix 4 626 52.7 632 52.2 632 52.2 4 608 54.3 612 53.9 619 53.3
459.GemsFDTD 4 2968 14.3 2966 14.3 2969 14.3 4 2968 14.3 2968 14.3 2975 14.3
465.tonto 4 914 43.1 898 43.8 912 43.1 4 892 44.1 893 44.1 892 44.1
470.lbm 4 3753 14.6 3765 14.6 3773 14.6 4 3754 14.6 3753 14.6 3769 14.6
481.wrf 4 1511 29.6 1505 29.7 1517 29.5 4 1534 29.1 1517 29.5 1516 29.5
482.sphinx3 4 2569 30.3 2570 30.3 2573 30.3 4 2558 30.5 2559 30.5 2557 30.5

Platform Notes

Power Regulator set to Static High Performance Mode in BIOS.
Adjacent Sector Prefetch Disabled in BIOS.
"/usr/bin/taskset" used to bind processes to CPUs.
Environment stack size set to 'unlimited'

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

C++ benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

Fortran benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast

Benchmarks using both Fortran and C:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/hp-ic91-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/hp-ic91-flags.xml.
