| CPU2006 license: | 3 | Test date: | Mar-2007 |
|---|---|---|---|
| Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Jan-2007 |
| Tested by: | Hewlett-Packard Company | Software Availability: | Nov-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5320 |
| CPU Characteristics: | 1.86 GHz, 2x4 MB L2 shared, 1066 MHz system bus |
| CPU MHz: | 1860 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB PC2-5300F CL5) |
| Disk Subsystem: | 1x72 GB 10 K SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise x64 Edition SP1 |
| Compiler: | Intel C++ Compiler for 32-bit applications, Version 9.1, Build 20061103Z Package ID: W_CC_C_9.1.033 Microsoft Visual Studio .NET 2003 (v7.1.3088, for libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 |

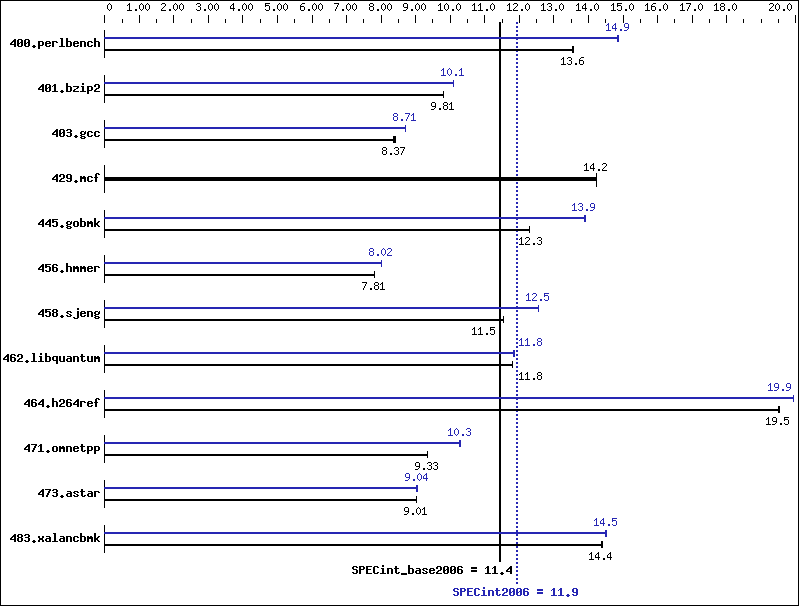

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 720 | 13.6 | 721 | 13.6 | 721 | 13.5 | 657 | 14.9 | 657 | 14.9 | 658 | 14.9 |
| 401.bzip2 | 983 | 9.81 | 984 | 9.81 | 983 | 9.81 | 955 | 10.1 | 955 | 10.1 | 956 | 10.1 |
| 403.gcc | 958 | 8.40 | 962 | 8.37 | 962 | 8.37 | 925 | 8.70 | 924 | 8.71 | 924 | 8.71 |
| 429.mcf | 640 | 14.2 | 641 | 14.2 | 640 | 14.2 | 640 | 14.2 | 641 | 14.2 | 640 | 14.2 |
| 445.gobmk | 853 | 12.3 | 854 | 12.3 | 853 | 12.3 | 755 | 13.9 | 755 | 13.9 | 755 | 13.9 |
| 456.hmmer | 1195 | 7.81 | 1195 | 7.81 | 1196 | 7.80 | 1163 | 8.02 | 1164 | 8.01 | 1164 | 8.02 |
| 458.sjeng | 1049 | 11.5 | 1049 | 11.5 | 1049 | 11.5 | 964 | 12.5 | 964 | 12.6 | 964 | 12.5 |
| 462.libquantum | 1755 | 11.8 | 1755 | 11.8 | 1756 | 11.8 | 1749 | 11.8 | 1748 | 11.9 | 1750 | 11.8 |
| 464.h264ref | 1135 | 19.5 | 1134 | 19.5 | 1135 | 19.5 | 1110 | 19.9 | 1110 | 19.9 | 1110 | 19.9 |
| 471.omnetpp | 670 | 9.33 | 669 | 9.34 | 670 | 9.33 | 608 | 10.3 | 609 | 10.3 | 608 | 10.3 |
| 473.astar | 778 | 9.02 | 779 | 9.01 | 779 | 9.01 | 777 | 9.04 | 777 | 9.04 | 777 | 9.04 |
| 483.xalancbmk | 480 | 14.4 | 479 | 14.4 | 480 | 14.4 | 475 | 14.5 | 475 | 14.5 | 476 | 14.5 |
Platform Notes
Power Regulator set to Static High Performance Mode in BIOS. Adjacent Sector Prefetch disabled in BIOS.
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Base Optimization Flags
C benchmarks:
| -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | Same as 400.perlbench |
| 403.gcc: | Same as 400.perlbench |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | Same as 400.perlbench |
| 456.hmmer: | Same as 400.perlbench |
| 458.sjeng: | Same as 400.perlbench |
| 462.libquantum: | Same as 400.perlbench |
| 464.h264ref: | Same as 400.perlbench |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
