SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

PRIMERGY RX200 S3, Intel Xeon processor L5320,
1.86 GHz

CPU2006 license: 22 Test date: Mar-2007
Test sponsor: Fujitsu Siemens Computers Hardware Availability: Mar-2007
Tested by: Fujitsu Siemens Computers Software Availability: Jan-2007

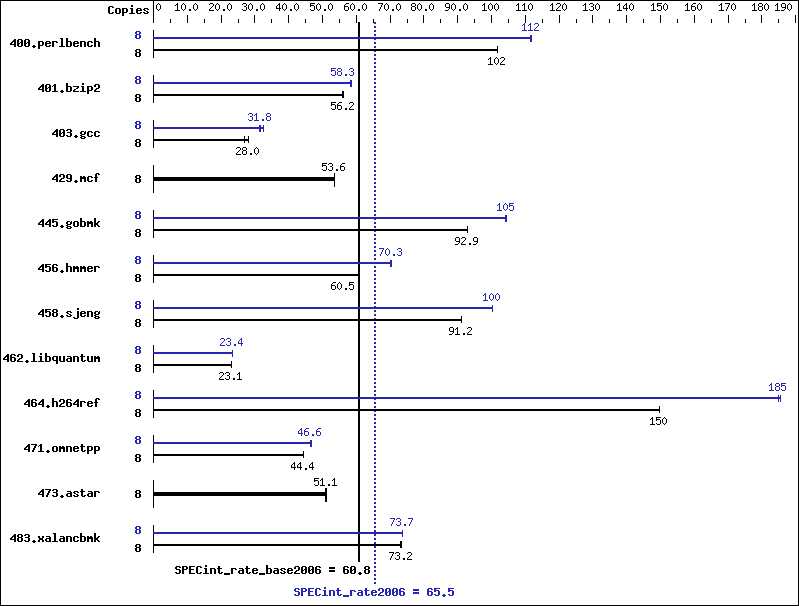

Benchmark results graph
Hardware
CPU Name: Intel Xeon L5320
CPU Characteristics: L5320
CPU MHz: 1867
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2 GB DDR2 PC2-5300F, 2 rank, CAS 5-5-5,
with ECC)
Disk Subsystem: SAS (73GB 15400 rpm)
Other Hardware: None
Software
Operating System: Windows Server 2003 x64 Enterprise Edition + SP1
(64-bit)
Compiler: Intel C++ Compiler for IA32-based applications,
Version 9.1 - built 20070109Z, Package-ID:
W_CC_C_9.1.034
Intel C++ Compiler for EM64T-based applications,
Version 9.1 - built 20070109, Package-ID:
W_CC_C_9.1.034
Microsoft Visual Studio 2005 (libraries & linker)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: Smart Heap Library, Version 8.1
Microsoft Platform SDK (libraries)

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 8 767 102   767 102   767 102   8 702 111   700 112   699 112
401.bzip2 8 1373 56.2 1378 56.0 1372 56.3 8 1325 58.3 1323 58.3 1319 58.5
403.gcc 8 2302 28.0 2403 26.8 2301 28.0 8 1986 32.4 2026 31.8 2058 31.3
429.mcf 8 1359 53.7 1361 53.6 1361 53.6 8 1359 53.7 1361 53.6 1361 53.6
445.gobmk 8 902 93.0 903 92.9 903 92.9 8 803 105   806 104   802 105
456.hmmer 8 1234 60.5 1233 60.5 1233 60.5 8 1062 70.3 1063 70.2 1062 70.3
458.sjeng 8 1062 91.2 1062 91.2 1062 91.2 8 966 100   966 100   967 100
462.libquantum 8 7172 23.1 7168 23.1 7163 23.1 8 7072 23.4 7071 23.4 7072 23.4
464.h264ref 8 1183 150   1183 150   1183 150   8 955 185   958 185   958 185
471.omnetpp 8 1124 44.5 1125 44.4 1126 44.4 8 1075 46.5 1073 46.6 1074 46.6
473.astar 8 1100 51.1 1101 51.0 1099 51.1 8 1100 51.1 1101 51.0 1099 51.1
483.xalancbmk 8 754 73.2 754 73.2 754 73.2 8 749 73.7 750 73.6 749 73.7

General Notes


 The system bus runs at 1067 MHz

 All binaries were built with 32-bit Intel compiler except:
 401.bzip2, 456.hmmer, 462.libquantum and 464.h264ref in peak were built with
 64-bit Intel compiler by changing the path for include and library files.

 BIOS configuration:
 Hardware Prefetch = Disable, Adjacent Sector Prefetch = Disable

 For information about Fujitsu Siemens Computers in your country please see:
 http://www.fujitsu-siemens.com/countries

Base Compiler Invocation

C benchmarks:

 icl   -Qvc8   -Qc99

C++ benchmarks:

 icl   -Qvc8

Base Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DWIN32   -DSPEC_CPU_NO_INTTYPES
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Base Optimization Flags

C benchmarks:

 -fast   -F512000000   shlW32M.lib   -link -FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx-features   -F512000000   shlW32M.lib   -link -FORCE:MULTIPLE

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icl   -Qvc8   -Qc99
401.bzip2:  icl   -Qvc8   -Qc99   -link -LIBPATH:"C:\\Program Files (x86)\\Intel\\Compiler\\C++\\9.1\\EM64T\\Lib"   -link -LIBPATH:"C:\\Program Files\\Microsoft Platform SDK\\Lib\\AMD64"   -link -LIBPATH:"C:\\Program Files\\Microsoft Platform SDK\\Lib\\AMD64\\atlmfc"
456.hmmer:  icl   -Qvc8   -Qc99   -link -LIBPATH:"C:\\Program Files (x86)\\Intel\\Compiler\\C++\\9.1\\EM64T\\Lib"   -link -LIBPATH:"C:\\Program Files\\Microsoft Platform SDK\\Lib\\AMD64"   -link -LIBPATH:"C:\\Program Files\\Microsoft Platform SDK\\Lib\\AMD64\\atlmfc"
462.libquantum:  icl   -Qvc8   -Qc99   -link -LIBPATH:"C:\\Program Files (x86)\\Intel\\Compiler\\C++\\9.1\\EM64T\\Lib"   -link -LIBPATH:"C:\\Program Files\\Microsoft Platform SDK\\Lib\\AMD64"   -link -LIBPATH:"C:\\Program Files\\Microsoft Platform SDK\\Lib\\AMD64\\atlmfc"
464.h264ref:  icl   -Qvc8   -Qc99   -link -LIBPATH:"C:\\Program Files (x86)\\Intel\\Compiler\\C++\\9.1\\EM64T\\Lib"   -link -LIBPATH:"C:\\Program Files\\Microsoft Platform SDK\\Lib\\AMD64"   -link -LIBPATH:"C:\\Program Files\\Microsoft Platform SDK\\Lib\\AMD64\\atlmfc"

C++ benchmarks:

 icl   -Qvc8

Peak Portability Flags

401.bzip2:  -DSPEC_CPU_P64
403.gcc:  -DSPEC_CPU_WIN32
456.hmmer:  -DSPEC_CPU_P64
462.libquantum:  -DSPEC_CPU_P64
464.h264ref:  -DWIN32   -DSPEC_CPU_NO_INTTYPES   -DSPEC_CPU_P64
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Peak Optimization Flags

C benchmarks:

400.perlbench:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -F512000000   shlW32M.lib   -link -FORCE:MULTIPLE
401.bzip2:  -fast   -F512000000   shlSMP64Mt.lib   bufferoverflowu.lib   -link -FORCE:MULTIPLE
403.gcc:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -F512000000   -link -FORCE:MULTIPLE
429.mcf:  basepeak = yes
445.gobmk:  Same as 400.perlbench
456.hmmer:  Same as 401.bzip2
458.sjeng:  Same as 400.perlbench
462.libquantum:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -F512000000   bufferoverflowu.lib   -link -FORCE:MULTIPLE
464.h264ref:  Same as 462.libquantum

C++ benchmarks:

471.omnetpp:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx-features   -F512000000   shlW32M.lib   -link -FORCE:MULTIPLE
473.astar:  basepeak = yes
483.xalancbmk:  Same as 471.omnetpp

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.24.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.24.xml.
