SPEC® CFP2006 Result

Copyright 2006-2016 Standard Performance Evaluation Corporation

Tyan (Test Sponsor: Advanced Micro Devices)

n4250QE (S4985) AMD Opteron 2222 SE

CPU2006 license: 49 Test date: Feb-2007
Test sponsor: Advanced Micro Devices Hardware Availability: May-2007
Tested by: Advanced Micro Devices Software Availability: Mar-2007

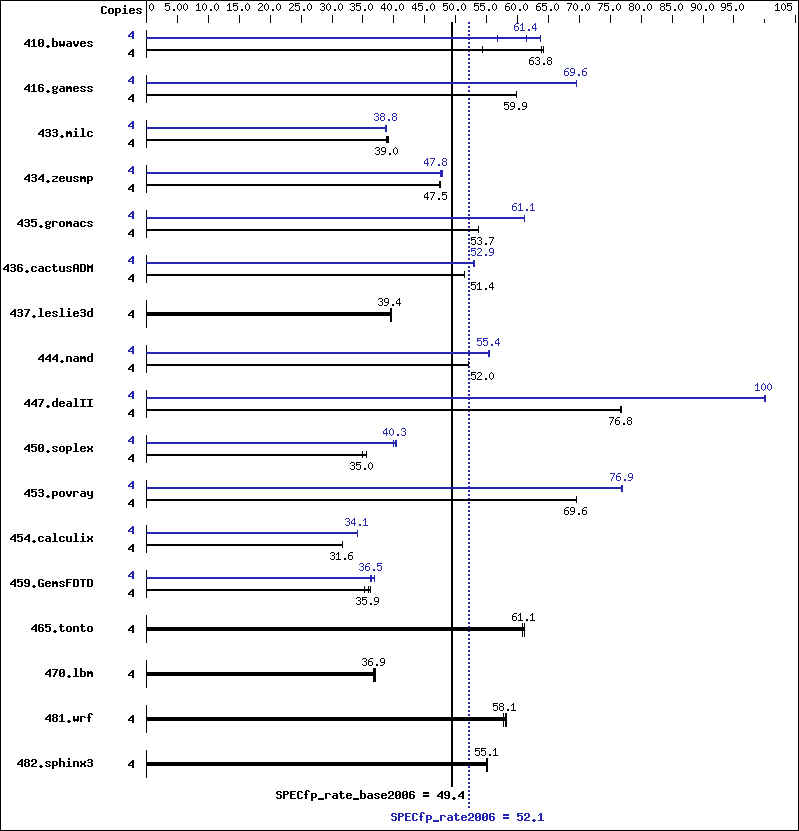

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2222 SE
CPU Characteristics:
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 8 GB (8x1GB, DDR2-667 CL4 ECC Reg Dual Rank)
Disk Subsystem: SATA, 80 GB
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 9 SP3 64-bit kernel
Compiler: QLogic PathScale
Compiler Suite, Release 3.0
Auto Parallel: No
File System: ext3
System State: Multi-user, run level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 852 63.8 1001 54.3 847 64.2 4 853 63.8 885 61.4 959 56.7
416.gamess 4 1308 59.9 1308 59.9 1308 59.9 4 1126 69.6 1126 69.5 1126 69.6
433.milc 4 942 39.0 939 39.1 947 38.8 4 946 38.8 950 38.7 945 38.8
434.zeusmp 4 765 47.6 766 47.5 768 47.4 4 762 47.8 761 47.8 765 47.6
435.gromacs 4 532 53.7 532 53.7 532 53.7 4 467 61.1 467 61.1 467 61.2
436.cactusADM 4 930 51.4 930 51.4 929 51.4 4 904 52.9 901 53.1 903 52.9
437.leslie3d 4 954 39.4 954 39.4 948 39.7 4 954 39.4 954 39.4 948 39.7
444.namd 4 617 52.0 617 52.0 616 52.0 4 579 55.4 579 55.4 579 55.4
447.dealII 4 597 76.6 596 76.8 596 76.8 4 457 100   458 100   458 100
450.soplex 4 953 35.0 957 34.9 939 35.5 4 836 39.9 825 40.4 827 40.3
453.povray 4 306 69.6 306 69.5 306 69.6 4 276 77.0 277 76.9 277 76.9
454.calculix 4 1043 31.6 1043 31.6 1043 31.6 4 967 34.1 968 34.1 968 34.1
459.GemsFDTD 4 1203 35.3 1172 36.2 1183 35.9 4 1173 36.2 1149 36.9 1164 36.5
465.tonto 4 644 61.1 643 61.2 647 60.9 4 644 61.1 643 61.2 647 60.9
470.lbm 4 1491 36.9 1482 37.1 1496 36.7 4 1491 36.9 1482 37.1 1496 36.7
481.wrf 4 768 58.2 769 58.1 774 57.7 4 768 58.2 769 58.1 774 57.7
482.sphinx3 4 1414 55.1 1416 55.1 1418 55.0 4 1414 55.1 1416 55.1 1418 55.0

General Notes

 taskset utility used to bind cores to processes
 All memory slots filled on all used CPU sockets

 The tested system can be assembled using an SSI-MEB case and
 a Silverstone Zeus 650 watt ST65ZF ATX 12V Power Supply.

Base Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Fortran benchmarks:

 pathf95

Benchmarks using both Fortran and C:

 pathcc   pathf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64   -DSPEC_CPU_TABLE_WORKAROUND
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -Ofast

C++ benchmarks:

 -Ofast

Fortran benchmarks:

 -Ofast   -OPT:malloc_alg=1

Benchmarks using both Fortran and C:

 -Ofast   -OPT:malloc_alg=1

Peak Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Fortran benchmarks:

 pathf95

Benchmarks using both Fortran and C:

 pathcc   pathf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_TABLE_WORKAROUND
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  -Ofast   -CG:cflow=off   -LNO:prefetch=1   -OPT:malloc_alg=1
470.lbm:  basepeak = yes
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -fno-exceptions
447.dealII:  -Ofast   -INLINE:aggressive=on   -LNO:opt=0   -OPT:alias=disjoint   -m32   -fno-exceptions
450.soplex:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -m32   -O3   -OPT:IEEE_arith=3   -CG:load_exe=0   -CG:movnti=1   -LNO:minvariant=off   -LNO:prefetch=1   -fno-exceptions
453.povray:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -fno-fast-math

Fortran benchmarks:

410.bwaves:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:Ofast   -OPT:IEEE_arith=3   -LNO:blocking=off   -LNO:ignore_feedback=off
416.gamess:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O2   -OPT:Ofast   -OPT:ro=3   -OPT:unroll_size=256
434.zeusmp:  -Ofast   -CG:local_fwd_sched=on   -LNO:blocking=off   -LNO:interchange=off   -LNO:fu=10   -LNO:full_unroll_outer=on
437.leslie3d:  basepeak = yes
459.GemsFDTD:  -Ofast   -LNO:fission=2   -LNO:prefetch=0
465.tonto:  basepeak = yes

Benchmarks using both Fortran and C:

435.gromacs:  -O3   -OPT:rsqrt=2   -OPT:ro=3
436.cactusADM:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:prefetch=3   -LNO:prefetch_ahead=5   -LNO:ou_prod_max=10   -LNO:full_unroll=5   -ipa
454.calculix:  -Ofast   -LNO:simd=0   -WOPT:mem_opnds=on
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.26.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.26.xml.
