SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

PRIMERGY TX300 S3, Intel Xeon processor X5355,
2.66 GHz

CPU2006 license: 22 Test date: Mar-2007
Test sponsor: Fujitsu Siemens Computers Hardware Availability: Jan-2007
Tested by: Fujitsu Siemens Computers Software Availability: Feb-2007

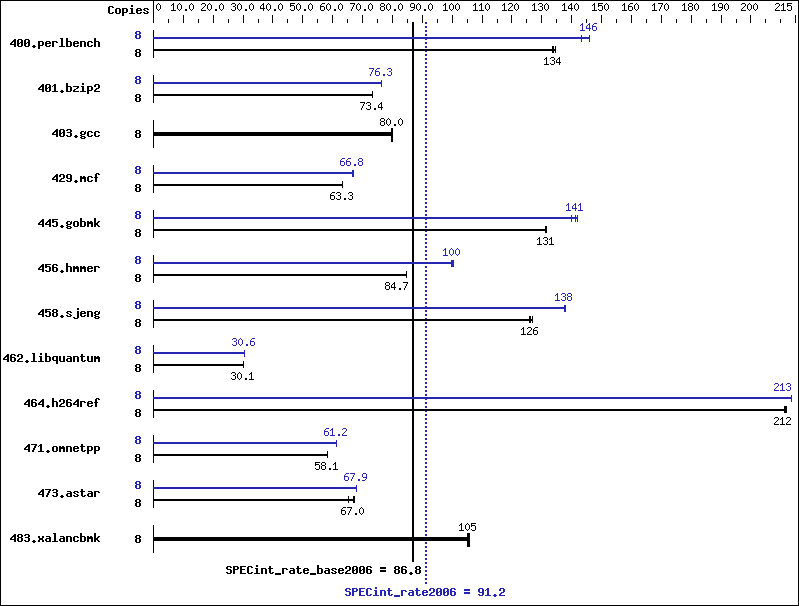

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5355
CPU Characteristics: X5355
CPU MHz: 2667
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2 GB DDR2 PC2-5300F, 2 rank, CAS 5-5-5,
with ECC)
Disk Subsystem: SAS (73GB 15400 rpm)
Other Hardware: None
Software
Operating System: 64-Bit SUSE LINUX Enterprise Server 10, Kernel
2.6.16.21-0.8-smp on an x86_64
Compiler: Intel C++ Compiler for IA32/EM64T application,
Version 9.1 - Build 20070215, Package-ID:
l_cc_p_9.1.047
Auto Parallel: No
File System: ext2
System State: Multiuser, Runlevel 3
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: Smart Heap Library, Version 8.1

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 8 581 135   584 134   586 133   8 545 143   535 146   535 146
401.bzip2 8 1051 73.4 1054 73.3 1051 73.4 8 1012 76.3 1013 76.2 1010 76.4
403.gcc 8 805 80.0 809 79.6 803 80.2 8 805 80.0 809 79.6 803 80.2
429.mcf 8 1152 63.3 1152 63.3 1151 63.4 8 1092 66.8 1093 66.8 1093 66.7
445.gobmk 8 640 131   639 131   638 131   8 594 141   592 142   599 140
456.hmmer 8 882 84.6 882 84.7 880 84.8 8 746 100   744 100   748 99.8
458.sjeng 8 768 126   763 127   768 126   8 702 138   703 138   704 137
462.libquantum 8 5509 30.1 5509 30.1 5512 30.1 8 5424 30.6 5424 30.6 5424 30.6
464.h264ref 8 835 212   838 211   836 212   8 828 214   829 213   829 213
471.omnetpp 8 860 58.1 860 58.2 861 58.1 8 817 61.2 817 61.2 816 61.2
473.astar 8 861 65.2 833 67.4 838 67.0 8 827 67.9 827 67.9 827 67.9
483.xalancbmk 8 522 106   525 105   524 105   8 522 106   525 105   524 105

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' used to bind processes to CPUs

General Notes


 The system bus runs at 1333 MHz

 All binaries were built with 32-bit Intel compiler except:
 401.bzip2, 456.hmmer and 462.libquantum in peak were built with
 64-bit Intel compiler by changing the path for include and library files.

 BIOS configuration:
 Hardware Prefetch = Disable, Adjacent Sector Prefetch = Disable

 This result was measured on the PRIMERGY RX300 S3. The PRIMERGY RX300 S3 and
 the PRIMERGY TX300 S3 are electronically equivalent.

 For information about Fujitsu Siemens Computers in your country please see:
 http://www.fujitsu-siemens.com/countries

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_X64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -xP   -O3   -ipo   -no-prec-div   -L/opt/SmartHeap_8_1/lib -lsmartheap

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/cce/9.1.047/bin/icc   -I/opt/intel/cce/9.1.047/include   -L/opt/intel/cce/9.1.047/lib
456.hmmer:  /opt/intel/cce/9.1.047/bin/icc   -I/opt/intel/cce/9.1.047/include   -L/opt/intel/cce/9.1.047/lib
462.libquantum:  /opt/intel/cce/9.1.047/bin/icc   -I/opt/intel/cce/9.1.047/include   -L/opt/intel/cce/9.1.047/lib

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
401.bzip2:  -fast
403.gcc:  basepeak = yes
429.mcf:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -L/opt/SmartHeap_8_1/lib -lsmartheap
445.gobmk:  Same as 429.mcf
456.hmmer:  Same as 400.perlbench
458.sjeng:  Same as 429.mcf
462.libquantum:  Same as 400.perlbench
464.h264ref:  Same as 429.mcf

C++ benchmarks:

471.omnetpp:  -prof_gen(pass 1)   -prof_use(pass 2)   -xP   -O3   -ipo   -no-prec-div   -L/opt/SmartHeap_8_1/lib -lsmartheap
473.astar:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -L/opt/SmartHeap_8_1/lib -lsmartheap
483.xalancbmk:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.09.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.09.xml.
