SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

PowerEdge 1950 (Intel Xeon processor 5140,
2.33GHz)

SPECfp®_rate2006 = Not Run

CPU2006 license: 55 Test date: Mar-2007
Test sponsor: Dell Inc. Hardware Availability: Jul-2006
Tested by: Dell Inc. Software Availability: Nov-2006

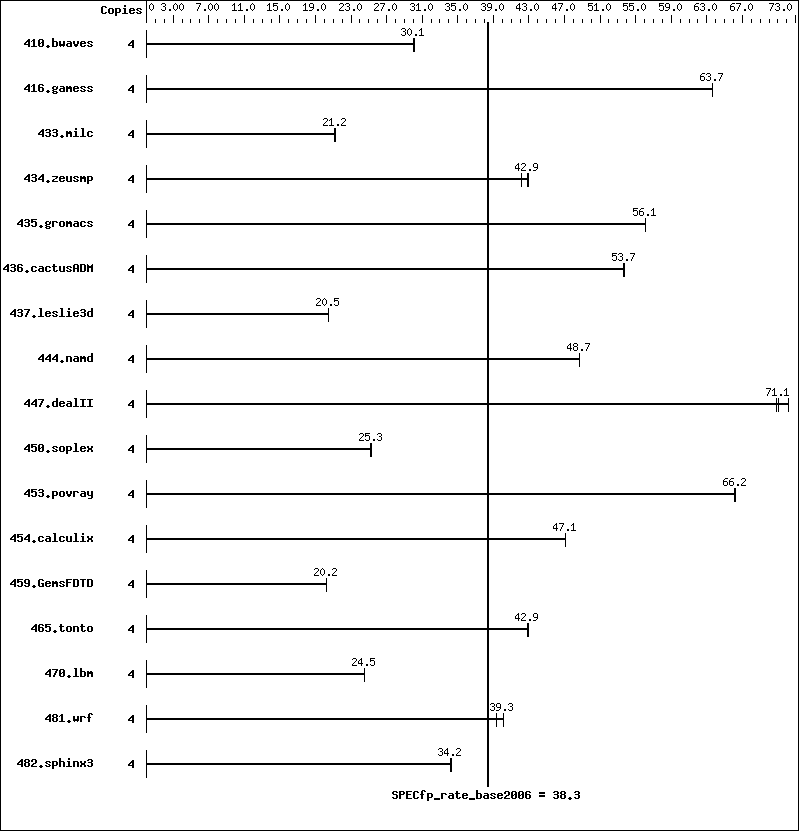

Benchmark results graph
Hardware
CPU Name: Intel Xeon 5140
CPU Characteristics: 1333 MHz Bus Speed
CPU MHz: 2333
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 16 GB (8 x 2 GB 667MHz CL5 DDR2 FB-DIMM SDRAM)
Disk Subsystem: 1 x 73 GB SAS 15k RPM
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux 4 Advanced Server Update
3 EM64T
kernel 2.6.9-34-smp
Compiler: Intel C++ Compiler for Intel EM64T-based
applications, Version 9.1
Package ID l_cc_c_9.1.045 Build no 20061101
Intel Fortran Compiler for Intel EM64T-based
applications, Version 9.1
Package ID l_fc_c_9.1.040 Build no 20061101
Auto Parallel: No
File System: ext3
System State: Run level 3
Base Pointers: 64-bit
Peak Pointers: Not Applicable
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 1810 30.0 1809 30.1 1806 30.1
416.gamess 4 1230 63.7 1230 63.7 1230 63.7
433.milc 4 1731 21.2 1729 21.2 1733 21.2
434.zeusmp 4 848 42.9 862 42.2 849 42.9
435.gromacs 4 509 56.1 509 56.1 509 56.1
436.cactusADM 4 889 53.7 890 53.7 890 53.7
437.leslie3d 4 1839 20.4 1838 20.5 1838 20.5
444.namd 4 658 48.7 658 48.7 658 48.7
447.dealII 4 646 70.9 634 72.2 644 71.1
450.soplex 4 1321 25.3 1320 25.3 1322 25.2
453.povray 4 322 66.2 322 66.2 322 66.2
454.calculix 4 701 47.1 701 47.1 701 47.1
459.GemsFDTD 4 2098 20.2 2099 20.2 2098 20.2
465.tonto 4 916 43.0 919 42.8 918 42.9
470.lbm 4 2247 24.5 2245 24.5 2247 24.5
481.wrf 4 1113 40.2 1137 39.3 1136 39.3
482.sphinx3 4 2277 34.2 2280 34.2 2279 34.2

Platform Notes

Snoop Filter enabled in BIOS
"ulimit -s unlimited" set

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/hp-ic91-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/hp-ic91-flags.xml.
