SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

PRIMERGY TX300 S3, Intel Xeon processor E5335,
2.0 GHz

CPU2006 license: 22 Test date: Apr-2007
Test sponsor: Fujitsu Siemens Computers Hardware Availability: Feb-2007
Tested by: Fujitsu Siemens Computers Software Availability: Feb-2007

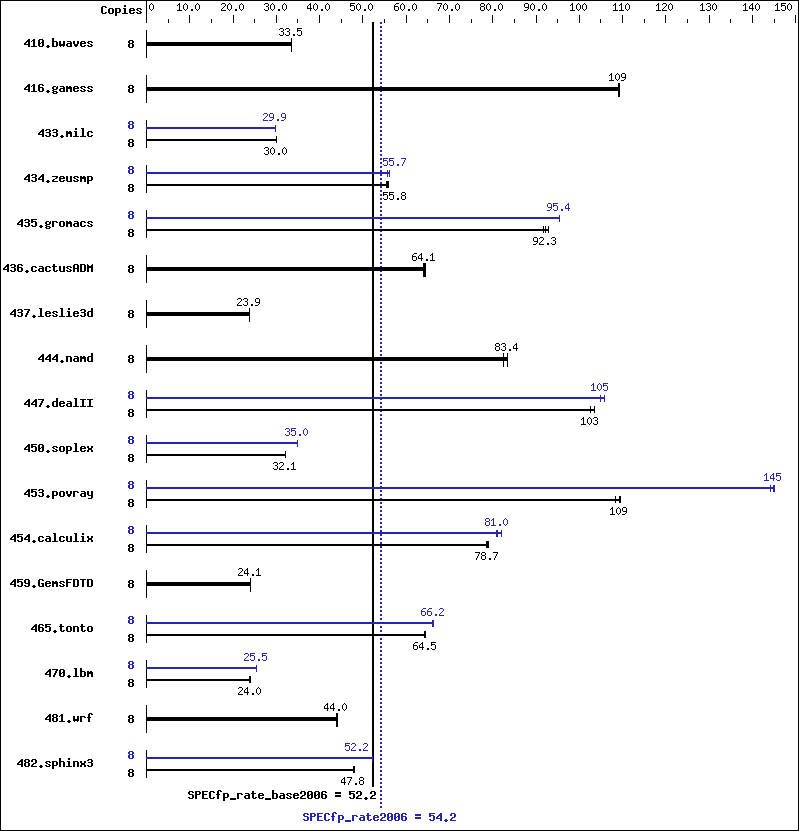

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5335
CPU Characteristics: 1333 MHz system bus
CPU MHz: 2000
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2 GB DDR2 PC2-5300F, 2 rank, CAS 5-5-5,
with ECC)
Disk Subsystem: SAS (73GB 15400 rpm)
Other Hardware: None
Software
Operating System: 64-Bit SUSE LINUX Enterprise Server 10, Kernel
2.6.16.21-0.8-smp on an x86_64
Compiler: Intel C++ Compiler for IA32/EM64T application,
Version 9.1 - Build 20070215, Package-ID:
l_cc_p_9.1.047
Intel Fortran Compiler for IA32/EM64T application,
Version 9.1 - Build 20070215, Package ID:
l_fc_p_9.1.043
Auto Parallel: No
File System: ext2
System State: Multiuser, Runlevel 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 3245 33.5 3245 33.5 3243 33.5 8 3245 33.5 3245 33.5 3243 33.5
416.gamess 8 1433 109   1437 109   1435 109   8 1433 109   1437 109   1435 109
433.milc 8 2448 30.0 2452 30.0 2447 30.0 8 2456 29.9 2455 29.9 2455 29.9
434.zeusmp 8 1315 55.3 1300 56.0 1305 55.8 8 1306 55.7 1297 56.1 1307 55.7
435.gromacs 8 619 92.3 615 92.8 623 91.7 8 598 95.5 599 95.4 599 95.3
436.cactusADM 8 1491 64.1 1484 64.4 1491 64.1 8 1491 64.1 1484 64.4 1491 64.1
437.leslie3d 8 3150 23.9 3163 23.8 3148 23.9 8 3150 23.9 3163 23.8 3148 23.9
444.namd 8 778 82.5 769 83.4 769 83.4 8 778 82.5 769 83.4 769 83.4
447.dealII 8 892 103   892 103   885 103   8 866 106   872 105   873 105
450.soplex 8 2079 32.1 2076 32.1 2078 32.1 8 1907 35.0 1909 34.9 1907 35.0
453.povray 8 392 108   390 109   389 109   8 295 144   293 145   294 145
454.calculix 8 839 78.7 835 79.0 840 78.5 8 817 80.8 815 81.0 805 81.9
459.GemsFDTD 8 3527 24.1 3527 24.1 3527 24.1 8 3527 24.1 3527 24.1 3527 24.1
465.tonto 8 1224 64.3 1221 64.5 1221 64.5 8 1189 66.2 1193 66.0 1189 66.2
470.lbm 8 4588 24.0 4588 24.0 4600 23.9 8 4315 25.5 4315 25.5 4315 25.5
481.wrf 8 2032 44.0 2034 43.9 2023 44.2 8 2032 44.0 2034 43.9 2023 44.2
482.sphinx3 8 3266 47.7 3251 48.0 3259 47.8 8 2990 52.1 2984 52.3 2985 52.2

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' used to bind processes to CPUs

General Notes


 The system bus runs at 1333 MHz

 All binaries were built with 64-bit Intel compiler except:
 433.milc, 434.zeusmp, 450.soplex, 470.lbm and 482.sphinx3 in peak were built with
 32-bit Intel compiler by changing the path for include and library files.

 BIOS configuration:
 Hardware Prefetch = Disable, Adjacent Sector Prefetch = Disable

 This result was measured on the PRIMERGY RX300 S3. The PRIMERGY RX300 S3 and
 the PRIMERGY TX300 S3 are electronically equivalent.

 For information about Fujitsu Siemens Computers in your country please see:
 http://www.fujitsu-siemens.com/countries

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks:

 /opt/intel/cc/9.1.047/bin/icc   -I/opt/intel/cc/9.1.047/include   -L/opt/intel/cc/9.1.047/lib

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /opt/intel/cc/9.1.047/bin/icpc   -I/opt/intel/cc/9.1.047/include   -L/opt/intel/cc/9.1.047/lib

Fortran benchmarks (except as noted below):

 ifort
434.zeusmp:  /opt/intel/fc/9.1.043/bin/ifort   -I/opt/intel/fc/9.1.043/include   -L/opt/intel/fc/9.1.043/lib

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
470.lbm:  Same as 433.milc
482.sphinx3:  -fast

C++ benchmarks:

444.namd:  basepeak = yes
447.dealII:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
450.soplex:  Same as 447.dealII
453.povray:  Same as 447.dealII

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  basepeak = yes
434.zeusmp:  -fast
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast

Benchmarks using both Fortran and C:

435.gromacs:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
436.cactusADM:  basepeak = yes
454.calculix:  Same as 435.gromacs
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.09.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.09.xml.
