| CPU2006 license: | 49 | Test date: | Apr-2007 |
|---|---|---|---|
| Test sponsor: | Advanced Micro Devices | Hardware Availability: | Feb-2007 |
| Tested by: | Advanced Micro Devices | Software Availability: | Feb-2007 |
| Hardware | |
|---|---|
| CPU Name: | AMD Opteron 890 |
| CPU Characteristics: | |
| CPU MHz: | 2800 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per core |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (8x1GB, DDR-400 CL3 ECC Reg Dual Rank) |
| Disk Subsystem: | SATA, 250 GB |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 10 64-bit kernel |
| Compiler: | QLogic PathScale Compiler Suite, Release 3.0 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap 8.0 32 bit Library for Linux |

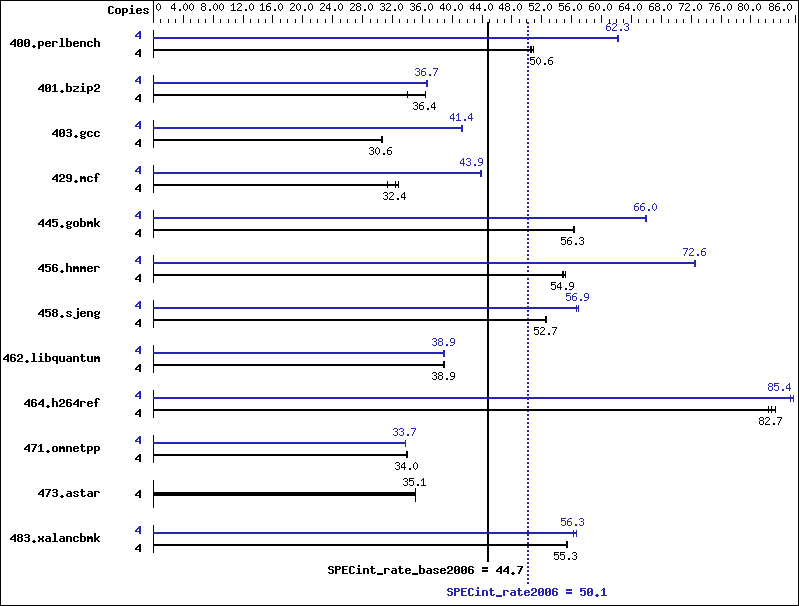

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 774 | 50.5 | 773 | 50.6 | 768 | 50.9 | 4 | 628 | 62.2 | 627 | 62.3 | 627 | 62.3 |
| 401.bzip2 | 4 | 1137 | 33.9 | 1060 | 36.4 | 1059 | 36.5 | 4 | 1056 | 36.5 | 1052 | 36.7 | 1051 | 36.7 |
| 403.gcc | 4 | 1055 | 30.5 | 1048 | 30.7 | 1053 | 30.6 | 4 | 782 | 41.2 | 779 | 41.4 | 777 | 41.4 |
| 429.mcf | 4 | 1165 | 31.3 | 1125 | 32.4 | 1113 | 32.8 | 4 | 831 | 43.9 | 832 | 43.8 | 830 | 43.9 |
| 445.gobmk | 4 | 746 | 56.3 | 745 | 56.3 | 747 | 56.2 | 4 | 637 | 65.9 | 636 | 66.0 | 636 | 66.0 |
| 456.hmmer | 4 | 676 | 55.2 | 681 | 54.8 | 680 | 54.9 | 4 | 514 | 72.6 | 514 | 72.6 | 515 | 72.5 |
| 458.sjeng | 4 | 919 | 52.7 | 921 | 52.6 | 919 | 52.7 | 4 | 850 | 56.9 | 851 | 56.9 | 854 | 56.7 |
| 462.libquantum | 4 | 2128 | 38.9 | 2133 | 38.9 | 2129 | 38.9 | 4 | 2129 | 38.9 | 2128 | 39.0 | 2131 | 38.9 |
| 464.h264ref | 4 | 1063 | 83.3 | 1075 | 82.4 | 1070 | 82.7 | 4 | 1037 | 85.4 | 1038 | 85.3 | 1034 | 85.6 |
| 471.omnetpp | 4 | 735 | 34.0 | 735 | 34.0 | 738 | 33.9 | 4 | 741 | 33.7 | 742 | 33.7 | 741 | 33.7 |
| 473.astar | 4 | 800 | 35.1 | 801 | 35.1 | 800 | 35.1 | 4 | 800 | 35.1 | 801 | 35.1 | 800 | 35.1 |
| 483.xalancbmk | 4 | 498 | 55.4 | 499 | 55.3 | 499 | 55.3 | 4 | 490 | 56.3 | 487 | 56.7 | 490 | 56.3 |
General Notes
taskset utility used to bind cores to processes All memory slots filled on all used CPU sockets. Memory bank interleave is enabled. The tested system can be assembled using an SSI-MEB case and a Emacs PSL-6701P 700 watt ATX 12V Power Supply.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -Ofast -OPT:malloc_alg=1 |
C++ benchmarks:
| -Ofast -m32 -L/cpu2006/mpaton/1.0/amd514K8.lib/32 -lsmartheap |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:opt=0 |
| 401.bzip2: | -O3 -LNO:ou_prod_max=10 -OPT:Ofast -OPT:alias=disjoint |
| 403.gcc: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -m32 -O3 -OPT:Ofast |
| 429.mcf: | -m32 -O3 -ipa -L/cpu2006/mpaton/1.0/amd514K8.lib/32 -lsmartheap |
| 445.gobmk: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -OPT:alias=disjoint -LNO:simd=0 -LNO:minvariant=off -WOPT:retype_expr=on |
| 456.hmmer: | -O2 -OPT:alias=disjoint -OPT:malloc_alg=1 -CG:cflow=0 |
| 458.sjeng: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -IPA:plimit=50000 -IPA:pu_reorder=2 |
| 462.libquantum: | -O3 -ipa -CG:local_fwd_sched=on -IPA:space=1000 |
| 464.h264ref: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -IPA:plimit=20000 -OPT:alias=disjoint -LNO:prefetch=0 |
C++ benchmarks:
| 471.omnetpp: | -Ofast -CG:gcm=off -m32 -L/cpu2006/mpaton/1.0/amd514K8.lib/32 -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | -Ofast -m32 -OPT:unroll_times_max=8 -L/cpu2006/mpaton/1.0/amd514K8.lib/32 -lsmartheap |
