SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

PRIMERGY RX200 S3, Intel Xeon processor 5130, 2.0
GHz

CPU2006 license: 22 Test date: Apr-2007
Test sponsor: Fujitsu Siemens Computers Hardware Availability: Jul-2006
Tested by: Fujitsu Siemens Computers Software Availability: Feb-2007

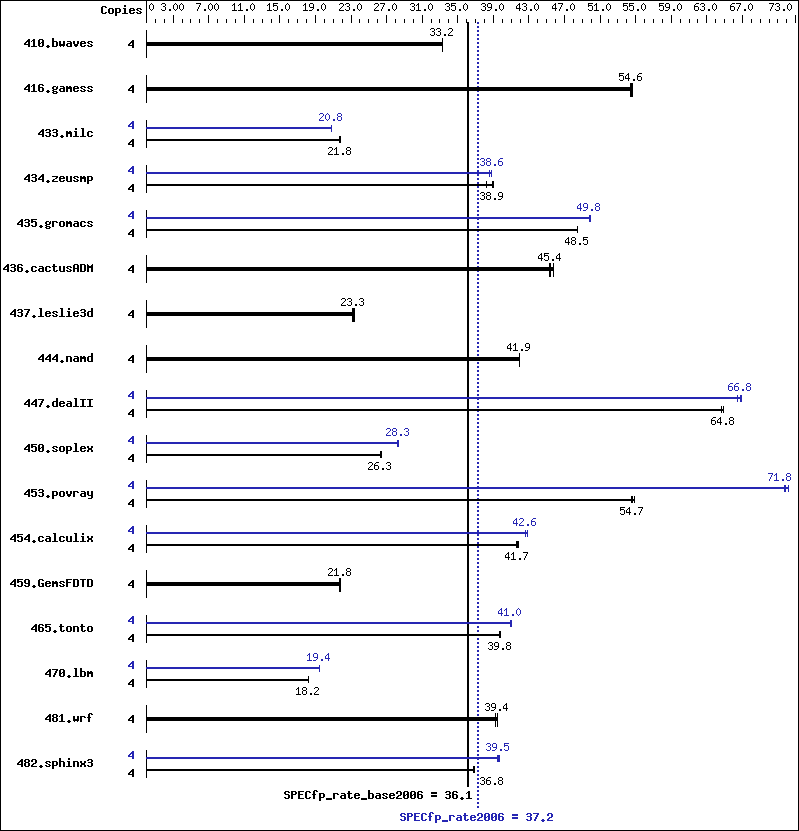

Benchmark results graph
Hardware
CPU Name: Intel Xeon 5130
CPU Characteristics: 1333 MHz system bus
CPU MHz: 2000
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 8 GB (8x1 GB DDR2 PC2-5300F, 2 rank, CAS 5-5-5,
with ECC)
Disk Subsystem: SAS (73GB 15400 rpm)
Other Hardware: None
Software
Operating System: 64-Bit SUSE LINUX Enterprise Server 10, Kernel
2.6.16.21-0.8-smp on an x86_64
Compiler: Intel C++ Compiler for IA32/EM64T application,
Version 9.1 - Build 20070215, Package-ID:
l_cc_p_9.1.047
Intel Fortran Compiler for IA32/EM64T application,
Version 9.1 - Build 20070215, Package ID:
l_fc_p_9.1.043
Auto Parallel: No
File System: ext2
System State: Multiuser, Runlevel 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 1633 33.3 1635 33.2 1636 33.2 4 1633 33.3 1635 33.2 1636 33.2
416.gamess 4 1436 54.6 1438 54.5 1432 54.7 4 1436 54.6 1438 54.5 1432 54.7
433.milc 4 1691 21.7 1681 21.8 1687 21.8 4 1770 20.7 1764 20.8 1765 20.8
434.zeusmp 4 952 38.3 935 38.9 932 39.1 4 943 38.6 943 38.6 939 38.7
435.gromacs 4 589 48.5 589 48.5 589 48.5 4 572 49.9 573 49.8 574 49.8
436.cactusADM 4 1052 45.4 1055 45.3 1045 45.7 4 1052 45.4 1055 45.3 1045 45.7
437.leslie3d 4 1614 23.3 1609 23.4 1627 23.1 4 1614 23.3 1609 23.4 1627 23.1
444.namd 4 765 41.9 765 42.0 765 41.9 4 765 41.9 765 42.0 765 41.9
447.dealII 4 705 64.9 708 64.7 706 64.8 4 684 66.9 686 66.8 689 66.4
450.soplex 4 1263 26.4 1268 26.3 1266 26.3 4 1181 28.3 1179 28.3 1179 28.3
453.povray 4 389 54.7 390 54.5 388 54.8 4 296 71.8 295 72.2 297 71.7
454.calculix 4 789 41.8 792 41.7 793 41.6 4 775 42.6 771 42.8 775 42.6
459.GemsFDTD 4 1947 21.8 1960 21.6 1947 21.8 4 1947 21.8 1960 21.6 1947 21.8
465.tonto 4 988 39.8 988 39.8 992 39.7 4 960 41.0 961 41.0 961 41.0
470.lbm 4 3018 18.2 3018 18.2 3017 18.2 4 2831 19.4 2829 19.4 2828 19.4
481.wrf 4 1132 39.5 1138 39.3 1133 39.4 4 1132 39.5 1138 39.3 1133 39.4
482.sphinx3 4 2122 36.7 2113 36.9 2121 36.8 4 1972 39.5 1965 39.7 1973 39.5

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' used to bind processes to CPUs

General Notes


 The system bus runs at 1333 MHz

 All binaries were built with 64-bit Intel compiler except:
 433.milc, 434.zeusmp, 450.soplex, 470.lbm and 482.sphinx3 in peak were built with
 32-bit Intel compiler by changing the path for include and library files.

 For information about Fujitsu Siemens Computers in your country please see:
 http://www.fujitsu-siemens.com/countries

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks:

 /opt/intel/cc/9.1.047/bin/icc   -I/opt/intel/cc/9.1.047/include   -L/opt/intel/cc/9.1.047/lib

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /opt/intel/cc/9.1.047/bin/icpc   -I/opt/intel/cc/9.1.047/include   -L/opt/intel/cc/9.1.047/lib

Fortran benchmarks (except as noted below):

 ifort
434.zeusmp:  /opt/intel/fc/9.1.043/bin/ifort   -I/opt/intel/fc/9.1.043/include   -L/opt/intel/fc/9.1.043/lib

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
470.lbm:  Same as 433.milc
482.sphinx3:  -fast

C++ benchmarks:

444.namd:  basepeak = yes
447.dealII:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
450.soplex:  Same as 447.dealII
453.povray:  Same as 447.dealII

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  basepeak = yes
434.zeusmp:  -fast
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast

Benchmarks using both Fortran and C:

435.gromacs:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
436.cactusADM:  basepeak = yes
454.calculix:  Same as 435.gromacs
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.09.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.09.xml.
