SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

PRIMERGY TX150 S5, Intel Xeon processor 3040,
1.86 GHz

CPU2006 license: 22 Test date: May-2007
Test sponsor: Fujitsu Siemens Computers Hardware Availability: Sep-2006
Tested by: Fujitsu Siemens Computers Software Availability: Feb-2007

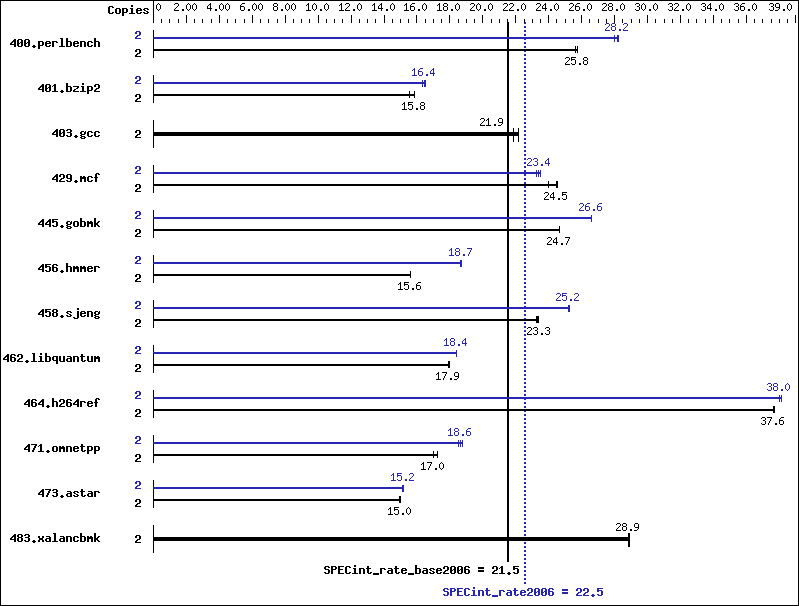

Benchmark results graph
Hardware
CPU Name: Intel Xeon 3040
CPU Characteristics: 1067 MHz system bus
CPU MHz: 1867
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 8 GB (4x2 GB DDR2 PC2-4200E, 2 rank, CAS 4-4-4,
with ECC)
Disk Subsystem: SATA (160 GB 7200 rpm)
Other Hardware: None
Software
Operating System: 64-Bit SUSE LINUX Enterprise Server 10, Kernel
2.6.16.21-0.8-smp on an x86_64
Compiler: Intel C++ Compiler for IA32/EM64T application,
Version 9.1 - Build 20070215, Package-ID:
l_cc_p_9.1.047
Auto Parallel: No
File System: ReiserFS
System State: Multiuser, Runlevel 3
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: Smart Heap Library, Version 8.1

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 2 759 25.8 758 25.8 762 25.6 2 698 28.0 694 28.2 692 28.2
401.bzip2 2 1218 15.8 1242 15.5 1218 15.9 2 1182 16.3 1174 16.4 1170 16.5
403.gcc 2 737 21.8 727 22.2 736 21.9 2 737 21.8 727 22.2 736 21.9
429.mcf 2 760 24.0 746 24.5 743 24.5 2 785 23.2 780 23.4 777 23.5
445.gobmk 2 850 24.7 850 24.7 850 24.7 2 789 26.6 789 26.6 789 26.6
456.hmmer 2 1195 15.6 1194 15.6 1196 15.6 2 998 18.7 1001 18.6 999 18.7
458.sjeng 2 1036 23.4 1042 23.2 1039 23.3 2 961 25.2 958 25.3 959 25.2
462.libquantum 2 2313 17.9 2309 17.9 2314 17.9 2 2255 18.4 2251 18.4 2249 18.4
464.h264ref 2 1176 37.6 1176 37.6 1174 37.7 2 1161 38.1 1165 38.0 1164 38.0
471.omnetpp 2 736 17.0 725 17.2 735 17.0 2 674 18.5 666 18.8 671 18.6
473.astar 2 939 15.0 938 15.0 934 15.0 2 927 15.1 926 15.2 926 15.2
483.xalancbmk 2 477 28.9 478 28.9 478 28.9 2 477 28.9 478 28.9 478 28.9

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' used to bind processes to CPUs

General Notes


 The system bus runs at 1067 MHz

 All binaries were built with 32-bit Intel compiler except:
 401.bzip2, 456.hmmer and 462.libquantum in peak were built with
 64-bit Intel compiler by changing the path for include and library files.

 For information about Fujitsu Siemens Computers in your country please see:
 http://www.fujitsu-siemens.com/countries

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_X64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -xP   -O3   -ipo   -no-prec-div   -L/opt/SmartHeap_8_1/lib -lsmartheap

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/cce/9.1.047/bin/icc   -I/opt/intel/cce/9.1.047/include   -L/opt/intel/cce/9.1.047/lib
456.hmmer:  /opt/intel/cce/9.1.047/bin/icc   -I/opt/intel/cce/9.1.047/include   -L/opt/intel/cce/9.1.047/lib
462.libquantum:  /opt/intel/cce/9.1.047/bin/icc   -I/opt/intel/cce/9.1.047/include   -L/opt/intel/cce/9.1.047/lib

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
401.bzip2:  -fast
403.gcc:  basepeak = yes
429.mcf:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -L/opt/SmartHeap_8_1/lib -lsmartheap
445.gobmk:  Same as 429.mcf
456.hmmer:  Same as 400.perlbench
458.sjeng:  Same as 429.mcf
462.libquantum:  Same as 400.perlbench
464.h264ref:  Same as 429.mcf

C++ benchmarks:

471.omnetpp:  -prof_gen(pass 1)   -prof_use(pass 2)   -xP   -O3   -ipo   -no-prec-div   -L/opt/SmartHeap_8_1/lib -lsmartheap
473.astar:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -L/opt/SmartHeap_8_1/lib -lsmartheap
483.xalancbmk:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.09.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.09.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 11:39:38 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 29 May 2007.
