SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM System p 570 (4.7 GHz, 16 core)

CPU2006 license: 11 Test date: May-2007
Test sponsor: IBM Corporation Hardware Availability: Jun-2007
Tested by: IBM Corporation Software Availability: Jun-2007

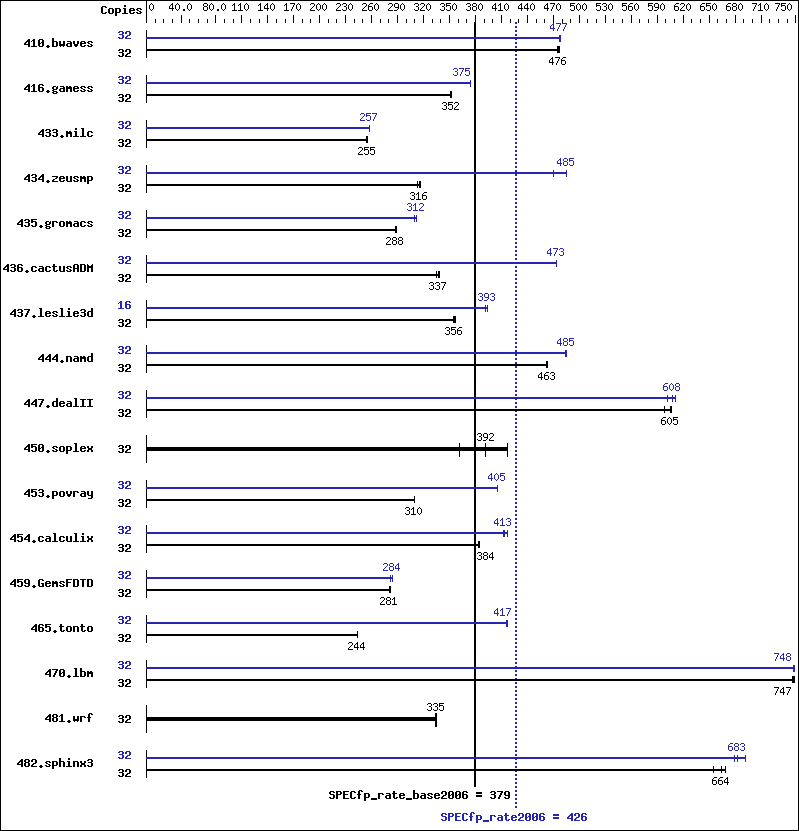

Benchmark results graph
Hardware
CPU Name: POWER6
CPU Characteristics:
CPU MHz: 4700
FPU: Integrated
CPU(s) enabled: 16 cores, 8 chips, 2 cores/chip, 2 threads/core
CPU(s) orderable: 2,4,8,12,16 cores
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per core
L3 Cache: 32 MB I+D off chip per chip
Other Cache: None
Memory: 128 GB (64x2 GB) DDR2 667 MHz
Disk Subsystem: 2x73 GB 2x146 GB SAS 15K RPM
Other Hardware: None
Software
Operating System: IBM AIX 5L V5.3
Compiler: XL C/C++ Enterprise Edition Version 9.0 for AIX
XL Fortran Enterprise Edition Version 11.1 for AIX
Auto Parallel: No
File System: AIX/JFS2
System State: Multi-user
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: --

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 32 912 477 914 476 915 475 32 913 477 912 477 910 478
416.gamess 32 1779 352 1779 352 1781 352 32 1673 375 1673 374 1672 375
433.milc 32 1154 255 1153 255 1153 255 32 1142 257 1141 257 1142 257
434.zeusmp 32 929 313 922 316 920 317 32 601 485 600 485 619 470
435.gromacs 32 792 288 793 288 793 288 32 738 310 733 312 733 312
436.cactusADM 32 1131 338 1133 337 1141 335 32 808 473 808 474 808 473
437.leslie3d 32 844 356 847 355 846 356 16 382 394 382 393 384 391
444.namd 32 554 463 555 463 554 463 32 529 485 530 484 529 485
447.dealII 32 604 606 611 599 605 605 32 608 602 600 611 602 608
450.soplex 32 681 392 738 361 640 417 32 681 392 738 361 640 417
453.povray 32 549 310 549 310 551 309 32 420 405 420 406 420 405
454.calculix 32 687 384 687 384 688 384 32 639 413 632 417 641 412
459.GemsFDTD 32 1210 281 1205 282 1208 281 32 1206 281 1197 284 1195 284
465.tonto 32 1293 243 1291 244 1292 244 32 756 416 756 417 755 417
470.lbm 32 589 746 589 747 588 748 32 588 748 588 747 588 748
481.wrf 32 1071 334 1067 335 1068 335 32 1071 334 1067 335 1068 335
482.sphinx3 32 940 664 952 655 932 669 32 917 680 913 683 901 692

General Notes

 AIX 5L V5.3 updated with the 5300-06 Technology Level.
 See flags file for details on following settings.
 all ulimits set to unlimited
 Envionment variables set before executing benchmarks:
   MALLOCOPTIONS=pool
   MEMORY_AFFINITY=MCM
   XLFRTEOPTS=intrinthds=1
 System set to "Enhanced" mode when defining partition on HMC
 6144 pages of size 16M defined on systems with vmo command
 fdpr binary optimization tool used for peak versions of
   410.bwaves 434.zeusmp 453.povray 470.lbm 482.sphinx3
 submit used to bind benchmark to a processor using "bindprocessor"
 The "IBM System p 570" and "IBM System i 570" are electronically equivalent.
 The results have been measured on the "IBM System p 570" model.

Base Compiler Invocation

C benchmarks:

 /usr/vac/bin/xlc   -qlanglvl=extc99

C++ benchmarks:

 /usr/vacpp/bin/xlC

Fortran benchmarks:

 /usr/bin/xlf95

Benchmarks using both Fortran and C:

 /usr/vac/bin/xlc   -qlanglvl=extc99   /usr/bin/xlf95

Base Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -qfixed   -qextname
437.leslie3d:  -qfixed
454.calculix:  -qfixed   -qextname
481.wrf:  -DSPEC_CPU_AIX   -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Base Optimization Flags

C benchmarks:

 -bmaxdata:0x40000000   -O5   -qlargepage   -D_ILS_MACROS   -blpdata

C++ benchmarks:

 -bmaxdata:0x50000000   -O5   -qlargepage   -D_ILS_MACROS   -qrtti=all   -D__IBM_FAST_VECTOR   -blpdata

Fortran benchmarks:

 -bmaxdata:0x60000000   -O5   -qlargepage   -qsmallstack=dynlenonheap   -qalias=nostd   -blpdata

Benchmarks using both Fortran and C:

 -bmaxdata:0x60000000   -O5   -qlargepage   -D_ILS_MACROS   -qsmallstack=dynlenonheap   -qalias=nostd   -blpdata

Base Other Flags

C benchmarks:

 -qipa=noobject   -qipa=threads   -qsuppress=1500-036

C++ benchmarks:

 -qipa=noobject   -qipa=threads   -qsuppress=1500-036

Fortran benchmarks:

 -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qipa=threads   -qsuppress=1500-036

Benchmarks using both Fortran and C:

 -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qipa=threads   -qsuppress=1500-036

Peak Compiler Invocation

C benchmarks:

 /usr/vac/bin/xlc   -qlanglvl=extc99

C++ benchmarks:

 /usr/vacpp/bin/xlC

Fortran benchmarks:

 /usr/bin/xlf95

Benchmarks using both Fortran and C:

 /usr/vac/bin/xlc   -qlanglvl=extc99   /usr/bin/xlf95

Peak Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -qfixed   -qextname
437.leslie3d:  -qfixed
454.calculix:  -qfixed   -qextname
481.wrf:  -DSPEC_CPU_AIX   -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Peak Optimization Flags

C benchmarks:

433.milc:  -bmaxdata:0x40000000   -O5   -qlargepage   -D_ILS_MACROS   -qalign=natural   -blpdata
470.lbm:  -O5   -qlargepage   -D_ILS_MACROS   -q64   -blpdata
482.sphinx3:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -qenablevmx   -qvecnvol   -D_ILS_MACROS   -blpdata

C++ benchmarks:

444.namd:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -qenablevmx   -qvecnvol   -D_ILS_MACROS   -blpdata
447.dealII:  -bmaxdata:0x50000000   -O5   -qlargepage   -D_ILS_MACROS   -qrtti=all   -D__IBM_FAST_VECTOR   -blpdata
450.soplex:  basepeak = yes
453.povray:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -qenablevmx   -qvecnvol   -D_ILS_MACROS   -qalign=natural   -blpdata

Fortran benchmarks:

410.bwaves:  -bmaxdata:0x50000000   -O5   -qlargepage   -qenablevmx   -qvecnvol   -qsmallstack=dynlenonheap   -blpdata
416.gamess:  -bmaxdata:0x40000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -qalias=nostd   -blpdata
434.zeusmp:  -bmaxdata:0x40000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -qenablevmx   -qvecnvol   -qxlf90=nosignedzero   -blpdata
437.leslie3d:  -O5   -qlargepage   -q64   -blpdata
459.GemsFDTD:  -bmaxdata:0x50000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -qenablevmx   -qvecnvol   -blpdata
465.tonto:  -bmaxdata:0x20000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -blpdata

Benchmarks using both Fortran and C:

435.gromacs:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -qenablevmx   -qvecnvol   -D_ILS_MACROS   -blpdata
436.cactusADM:  -bmaxdata:0x60000000   -D_ILS_MACROS   -blpdata
454.calculix:  -O4   -qlargepage   -q64   -D_ILS_MACROS   -blpdata
481.wrf:  basepeak = yes

Peak Other Flags

C benchmarks:

 -qipa=noobject   -qipa=threads   -qsuppress=1500-036

C++ benchmarks:

 -qipa=noobject   -qipa=threads   -qsuppress=1500-036

Fortran benchmarks:

 -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qipa=threads   -qsuppress=1500-036

Benchmarks using both Fortran and C:

 -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qipa=threads   -qsuppress=1500-036

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.xml.
