SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

PRIMERGY TX150 S5, Intel Xeon processor 3060,
2.40 GHz

CPU2006 license: 22 Test date: May-2007
Test sponsor: Fujitsu Siemens Computers Hardware Availability: Sep-2006
Tested by: Fujitsu Siemens Computers Software Availability: Mar-2007

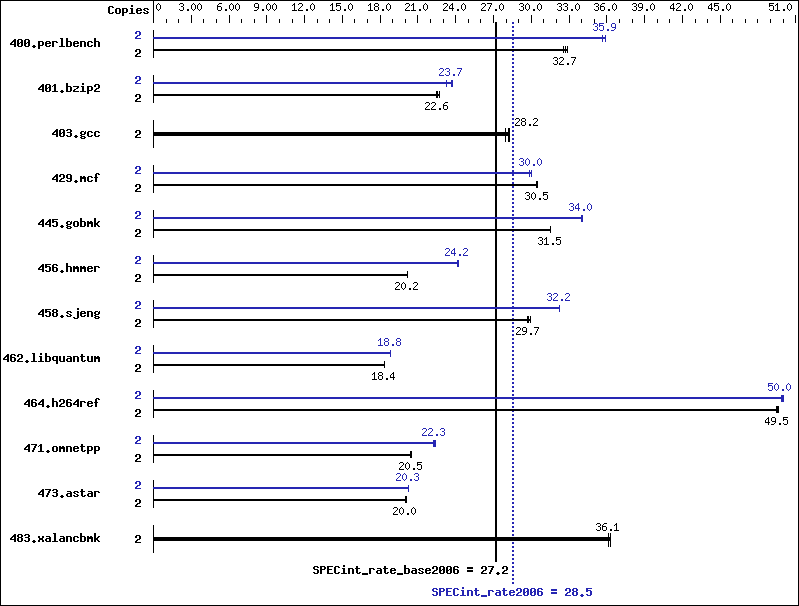

Benchmark results graph
Hardware
CPU Name: Intel Xeon 3060
CPU Characteristics: 1067 MHz system bus
CPU MHz: 2400
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 8 GB (4x2 GB DDR2 PC2-4200E, 2 rank, CAS 4-4-4,
with ECC)
Disk Subsystem: SATA (160 GB 7200 rpm)
Other Hardware: None
Software
Operating System: 64-Bit SUSE LINUX Enterprise Server 10, Kernel
2.6.16.21-0.8-smp on an x86_64
Compiler: Intel C++ Compiler for IA32/EM64T application,
Version 9.1 - Build 20070215, Package-ID:
l_cc_p_9.1.047
Auto Parallel: No
File System: ReiserFS
System State: Multiuser, Runlevel 3
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: Smart Heap Library, Version 8.1

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 2 595 32.9 600 32.6 598 32.7 2 544 35.9 544 35.9 548 35.6
401.bzip2 2 859 22.5 855 22.6 849 22.7 2 828 23.3 816 23.7 812 23.8
403.gcc 2 576 28.0 572 28.2 570 28.2 2 576 28.0 572 28.2 570 28.2
429.mcf 2 600 30.4 599 30.5 598 30.5 2 611 29.9 608 30.0 608 30.0
445.gobmk 2 666 31.5 666 31.5 666 31.5 2 617 34.0 617 34.0 617 34.0
456.hmmer 2 926 20.2 926 20.2 925 20.2 2 773 24.1 772 24.2 771 24.2
458.sjeng 2 814 29.7 814 29.7 807 30.0 2 750 32.3 751 32.2 752 32.2
462.libquantum 2 2257 18.4 2255 18.4 2256 18.4 2 2205 18.8 2205 18.8 2205 18.8
464.h264ref 2 894 49.5 894 49.5 892 49.6 2 886 50.0 887 49.9 884 50.1
471.omnetpp 2 611 20.5 611 20.5 612 20.4 2 562 22.2 558 22.4 561 22.3
473.astar 2 701 20.0 699 20.1 702 20.0 2 693 20.3 693 20.2 692 20.3
483.xalancbmk 2 380 36.3 382 36.1 382 36.1 2 380 36.3 382 36.1 382 36.1

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' used to bind processes to CPUs

General Notes


 The system bus runs at 1067 MHz

 All binaries were built with 32-bit Intel compiler except:
 401.bzip2, 456.hmmer and 462.libquantum in peak were built with
 64-bit Intel compiler by changing the path for include and library files.

 BIOS configuration:
 Adjacent Sector Prefetch = Disable

 For information about Fujitsu Siemens Computers in your country please see:
 http://www.fujitsu-siemens.com/countries

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_X64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -xP   -O3   -ipo   -no-prec-div   -L/opt/SmartHeap_8_1/lib -lsmartheap

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/cce/9.1.047/bin/icc   -I/opt/intel/cce/9.1.047/include   -L/opt/intel/cce/9.1.047/lib
456.hmmer:  /opt/intel/cce/9.1.047/bin/icc   -I/opt/intel/cce/9.1.047/include   -L/opt/intel/cce/9.1.047/lib
462.libquantum:  /opt/intel/cce/9.1.047/bin/icc   -I/opt/intel/cce/9.1.047/include   -L/opt/intel/cce/9.1.047/lib

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
401.bzip2:  -fast
403.gcc:  basepeak = yes
429.mcf:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -L/opt/SmartHeap_8_1/lib -lsmartheap
445.gobmk:  Same as 429.mcf
456.hmmer:  Same as 400.perlbench
458.sjeng:  Same as 429.mcf
462.libquantum:  Same as 400.perlbench
464.h264ref:  Same as 429.mcf

C++ benchmarks:

471.omnetpp:  -prof_gen(pass 1)   -prof_use(pass 2)   -xP   -O3   -ipo   -no-prec-div   -L/opt/SmartHeap_8_1/lib -lsmartheap
473.astar:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -L/opt/SmartHeap_8_1/lib -lsmartheap
483.xalancbmk:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.09.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.09.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 11:08:48 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 12 June 2007.
