CPU2006 license: | 22 | Test date: | May-2007 |
---|---|---|---|
Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Aug-2006 |
Tested by: | Fujitsu Siemens Computers | Software Availability: | Mar-2007 |
Hardware | |
---|---|
CPU Name: | Intel Xeon 7130M |
CPU Characteristics: | 800 MHz system bus |
CPU MHz: | 3200 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2,4 chips |
Primary Cache: | 12 K micro-ops I + 16 KB D on chip per core |
Secondary Cache: | 1 MB I+D on chip per core |
L3 Cache: | 8 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 32 GB (16x2 GB DDR2 PC2-3200R, 2 rank, CAS 3-3-3, with ECC) |
Disk Subsystem: | Seagate ST973401SS (SAS 73GB 10 krpm) |
Other Hardware: | None |
Software | |
---|---|
Operating System: | 64-Bit SUSE LINUX Enterprise Server 10, Kernel 2.6.16.21-0.8-smp on an x86_64 |
Compiler: | Intel C++ Compiler for IA32/EM64T application, Version 9.1 - Build 20070215, Package-ID: l_cc_p_9.1.047 |
Auto Parallel: | No |
File System: | ReiserFS |
System State: | Multiuser Runlevel 3 |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Smart Heap Library, Version 8.1 |

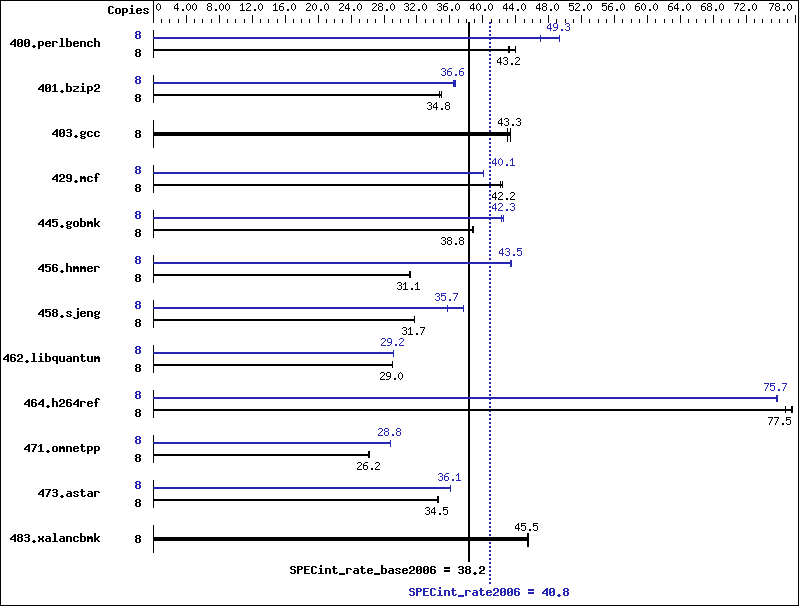

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 8 | 1810 | 43.2 | 1809 | 43.2 | 1776 | 44.0 | 8 | 1586 | 49.3 | 1663 | 47.0 | 1586 | 49.3 |
401.bzip2 | 8 | 2221 | 34.8 | 2224 | 34.7 | 2211 | 34.9 | 8 | 2121 | 36.4 | 2105 | 36.7 | 2111 | 36.6 |
403.gcc | 8 | 1486 | 43.3 | 1496 | 43.1 | 1484 | 43.4 | 8 | 1486 | 43.3 | 1496 | 43.1 | 1484 | 43.4 |
429.mcf | 8 | 1722 | 42.4 | 1730 | 42.2 | 1730 | 42.2 | 8 | 1819 | 40.1 | 1821 | 40.1 | 1819 | 40.1 |
445.gobmk | 8 | 2158 | 38.9 | 2169 | 38.7 | 2161 | 38.8 | 8 | 1973 | 42.5 | 1984 | 42.3 | 1986 | 42.3 |
456.hmmer | 8 | 2400 | 31.1 | 2389 | 31.2 | 2401 | 31.1 | 8 | 1721 | 43.4 | 1716 | 43.5 | 1718 | 43.5 |
458.sjeng | 8 | 3054 | 31.7 | 3055 | 31.7 | 3052 | 31.7 | 8 | 2713 | 35.7 | 2710 | 35.7 | 2572 | 37.6 |
462.libquantum | 8 | 5720 | 29.0 | 5710 | 29.0 | 5718 | 29.0 | 8 | 5682 | 29.2 | 5684 | 29.2 | 5678 | 29.2 |
464.h264ref | 8 | 2283 | 77.5 | 2308 | 76.7 | 2283 | 77.5 | 8 | 2340 | 75.7 | 2336 | 75.8 | 2339 | 75.7 |
471.omnetpp | 8 | 1907 | 26.2 | 1907 | 26.2 | 1915 | 26.1 | 8 | 1737 | 28.8 | 1735 | 28.8 | 1734 | 28.8 |
473.astar | 8 | 1629 | 34.5 | 1628 | 34.5 | 1625 | 34.6 | 8 | 1556 | 36.1 | 1555 | 36.1 | 1556 | 36.1 |
483.xalancbmk | 8 | 1212 | 45.5 | 1214 | 45.5 | 1214 | 45.5 | 8 | 1212 | 45.5 | 1214 | 45.5 | 1214 | 45.5 |
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run '/usr/bin/taskset' used to bind processes to CPUs
The system bus runs at 800 MHz All binaries were built with 32-bit Intel compiler except: 401.bzip2, 456.hmmer and 462.libquantum in peak were built with 64-bit Intel compiler by changing the path for include and library files. BIOS configuration: Hardware Prefetch = Enable The PRIMERGY RX600 S3 and the PRIMERGY TX600 S3 are electronically equivalent. For information about Fujitsu Siemens Computers in your country please see: http://www.fujitsu-siemens.com/countries
400.perlbench: | -DSPEC_CPU_LINUX_X64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-fast |
-xP -O3 -ipo -no-prec-div -L/opt/SmartHeap_8_1/lib -lsmartheap |
icpc |
400.perlbench: | -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -prof_gen(pass 1) -prof_use(pass 2) -fast |
401.bzip2: | -fast |
403.gcc: | basepeak = yes |
429.mcf: | -prof_gen(pass 1) -prof_use(pass 2) -fast -L/opt/SmartHeap_8_1/lib -lsmartheap |
445.gobmk: | Same as 429.mcf |
456.hmmer: | Same as 400.perlbench |
458.sjeng: | Same as 429.mcf |
462.libquantum: | Same as 400.perlbench |
464.h264ref: | Same as 429.mcf |
471.omnetpp: | -prof_gen(pass 1) -prof_use(pass 2) -xP -O3 -ipo -no-prec-div -L/opt/SmartHeap_8_1/lib -lsmartheap |
473.astar: | -prof_gen(pass 1) -prof_use(pass 2) -fast -L/opt/SmartHeap_8_1/lib -lsmartheap |
483.xalancbmk: | basepeak = yes |
