SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Bull SAS

NovaScale T820
(Intel Xeon processor 3040, 1.86GHz)

SPECfp®2006 = 12.5

CPU2006 license: 20 Test date: May-2007
Test sponsor: Bull SAS Hardware Availability: Mar-2007
Tested by: Bull SAS Software Availability: Dec-2006

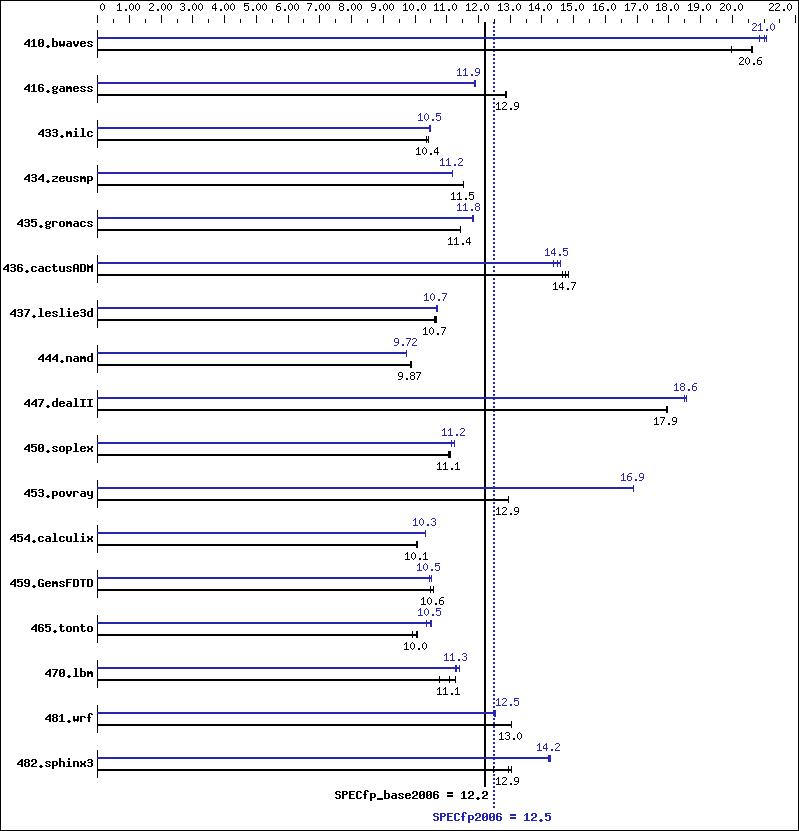

Benchmark results graph
Hardware
CPU Name: Intel Xeon 3040
CPU Characteristics: 1.86 GHz, 4 MB L2, 1066 MHz system bus
CPU MHz: 1860
FPU: Integrated
CPU(s) enabled: 1 core, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 4 GB (4x1 GB) PC2-4200E ECC CL4
Disk Subsystem: 1x160 GB SATA2, 7200 RPM
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (EM64T)
kernel 2.6.16.21-0.8-smp
Compiler: Intel C++ Compiler for Intel EM64T-based
applications, Version 9.1
Package ID l_cc_c_9.1.045 Build no 20061101
Intel Fortran Compiler for Intel EM64T-based
applications, Version 9.1
Package ID l_fc_c_9.1.040 Build no 20061101
Auto Parallel: No
File System: ext2
System State: Multi-user run level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 681 20.0  660 20.6  659 20.6  651 20.9  646 21.0  645 21.1
416.gamess 1520 12.9  1525 12.8  1521 12.9  1648 11.9  1649 11.9  1645 11.9
433.milc 887 10.4  881 10.4  880 10.4  876 10.5  878 10.5  875 10.5
434.zeusmp 790 11.5  790 11.5  790 11.5  813 11.2  814 11.2  814 11.2
435.gromacs 625 11.4  624 11.4  624 11.4  605 11.8  603 11.8  603 11.8
436.cactusADM 810 14.7  815 14.7  806 14.8  832 14.4  825 14.5  818 14.6
437.leslie3d 887 10.6  882 10.7  881 10.7  879 10.7  880 10.7  881 10.7
444.namd 814 9.86 812 9.88 813 9.87 825 9.72 824 9.73 825 9.72
447.dealII 638 17.9  638 17.9  637 17.9  616 18.6  618 18.5  616 18.6
450.soplex 750 11.1  753 11.1  753 11.1  747 11.2  742 11.2  741 11.2
453.povray 411 12.9  411 12.9  411 13.0  315 16.9  315 16.9  315 16.9
454.calculix 820 10.1  819 10.1  819 10.1  798 10.3  800 10.3  799 10.3
459.GemsFDTD 1010 10.5  1002 10.6  1002 10.6  1015 10.5  1014 10.5  1008 10.5
465.tonto 992 9.92 978 10.1  981 10.0  950 10.4  939 10.5  936 10.5
470.lbm 1238 11.1  1220 11.3  1275 10.8  1218 11.3  1214 11.3  1205 11.4
481.wrf 857 13.0  857 13.0  857 13.0  893 12.5  894 12.5  890 12.5
482.sphinx3 1561 12.5  1496 13.0  1506 12.9  1373 14.2  1366 14.3  1369 14.2

Operating System Notes

 Environment stack size set to 'unlimited'

 system was booted uniprocessor by setting "maxcpus=0"
 kernel parameter in menu.lst

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

C++ benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

Fortran benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast

Benchmarks using both Fortran and C:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/EM64T_Intel91_flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/EM64T_Intel91_flags.xml.
