SPEC® CFP2006 Result

Fujitsu Siemens Computers

PRIMERGY TX120, Intel Celeron processor 440, 2.0
GHz

SPECfp®2006 = 11.5

SPECfp_base2006 = 11.4

CPU2006 license:	22	Test date:	Jun-2007
Test sponsor:	Fujitsu Siemens Computers	Hardware Availability:	Jul-2007
Tested by:	Fujitsu Siemens Computers	Software Availability:	Mar-2007

Hardware
CPU Name:	Intel Celeron 440
CPU Characteristics:	800 MHz system bus
CPU MHz:	2000
FPU:	Integrated
CPU(s) enabled:	1 core, 1 chip, 1 core/chip
CPU(s) orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per chip
Secondary Cache:	512 KB I+D on chip per chip
L3 Cache:	None
Other Cache:	None
Memory:	8 GB (4x2 GB DDR2 PC2-4200E, 2 rank, CAS 4-4-4, with ECC)
Disk Subsystem:	Seagate ST973401SS (SAS, 73GB 10000rpm)
Other Hardware:	None

Software
Operating System:	64-Bit SUSE LINUX Enterprise Server 10, Kernel 2.6.16.21-0.8-smp on an x86_64
Compiler:	Intel C++ Compiler for IA32/EM64T application, Version 9.1 - Build 20070215, Package-ID: l_cc_p_9.1.047 Intel Fortran Compiler for IA32/EM64T application, Version 9.1 - Build 20070215, Package ID: l_fc_p_9.1.043
Auto Parallel:	No
File System:	ReiserFS
System State:	Multiuser, Runlevel 3
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

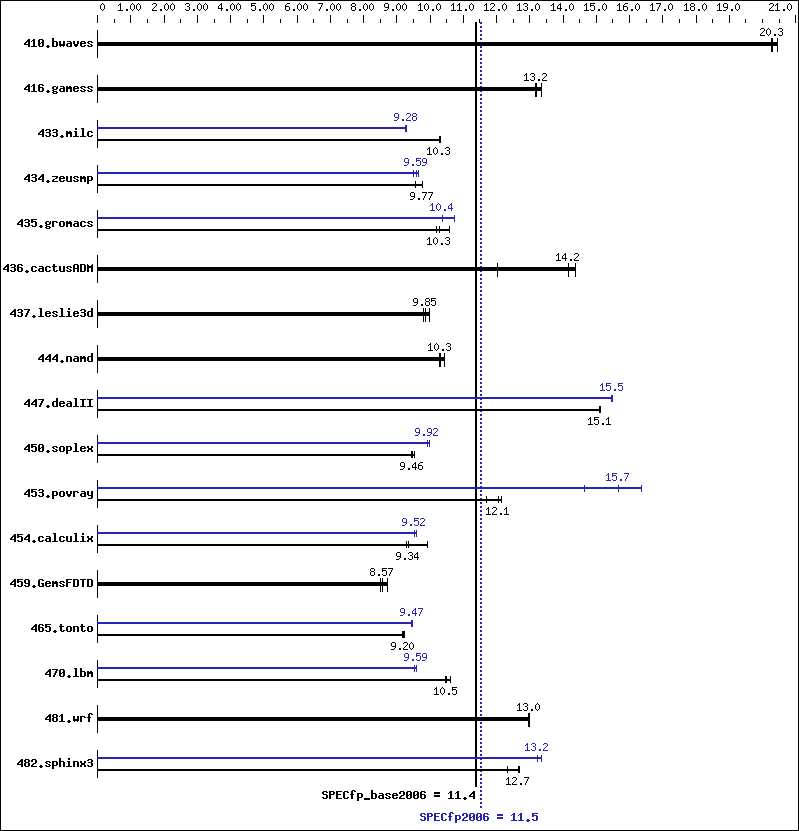

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	665	20.4	670	20.3	671	20.3	665	20.4	670	20.3	671	20.3
416.gamess	1482	13.2	1467	13.3	1486	13.2	1482	13.2	1467	13.3	1486	13.2
433.milc	890	10.3	893	10.3	894	10.3	989	9.28	989	9.28	990	9.27
434.zeusmp	953	9.55	931	9.77	930	9.78	949	9.59	959	9.49	944	9.64
435.gromacs	675	10.6	700	10.2	695	10.3	665	10.7	689	10.4	689	10.4
436.cactusADM	832	14.4	843	14.2	994	12.0	832	14.4	843	14.2	994	12.0
437.leslie3d	942	9.97	954	9.85	958	9.81	942	9.97	954	9.85	958	9.81
444.namd	769	10.4	777	10.3	780	10.3	769	10.4	777	10.3	780	10.3
447.dealII	756	15.1	757	15.1	757	15.1	739	15.5	739	15.5	740	15.5
450.soplex	874	9.54	882	9.46	882	9.45	835	9.99	840	9.92	840	9.92
453.povray	438	12.1	441	12.1	455	11.7	325	16.4	363	14.6	340	15.7
454.calculix	833	9.91	884	9.34	889	9.28	859	9.60	867	9.52	867	9.52
459.GemsFDTD	1217	8.72	1246	8.52	1238	8.57	1217	8.72	1246	8.52	1238	8.57
465.tonto	1070	9.20	1068	9.22	1074	9.16	1038	9.48	1039	9.47	1041	9.45
470.lbm	1294	10.6	1308	10.5	1314	10.5	1440	9.54	1433	9.59	1432	9.59
481.wrf	861	13.0	859	13.0	859	13.0	861	13.0	859	13.0	859	13.0
482.sphinx3	1539	12.7	1535	12.7	1581	12.3	1472	13.2	1461	13.3	1474	13.2

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run

General Notes


 The system bus runs at 800 MHz

 All binaries were built with 64-bit Intel compiler except:
 433.milc, 434.zeusmp, 450.soplex, 470.lbm and 482.sphinx3 in peak were built with
 32-bit Intel compiler by changing the path for include and library files.

 For information about Fujitsu Siemens Computers in your country please see:
 http://www.fujitsu-siemens.com/countries

Base Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icc ifort

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

-fast

C++ benchmarks:

-fast

Fortran benchmarks:

-fast

Benchmarks using both Fortran and C:

-fast

Peak Compiler Invocation

C benchmarks:

/opt/intel/cc/9.1.047/bin/icc -I/opt/intel/cc/9.1.047/include -L/opt/intel/cc/9.1.047/lib

C++ benchmarks (except as noted below):

	icpc
450.soplex:	/opt/intel/cc/9.1.047/bin/icpc -I/opt/intel/cc/9.1.047/include -L/opt/intel/cc/9.1.047/lib

Fortran benchmarks (except as noted below):

	ifort
434.zeusmp:	/opt/intel/fc/9.1.043/bin/ifort -I/opt/intel/fc/9.1.043/include -L/opt/intel/fc/9.1.043/lib

Benchmarks using both Fortran and C:

icc ifort

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:	-prof_gen(pass 1) -prof_use(pass 2) -fast
470.lbm:	Same as 433.milc
482.sphinx3:	-fast

C++ benchmarks:

444.namd:	basepeak = yes
447.dealII:	-prof_gen(pass 1) -prof_use(pass 2) -fast
450.soplex:	Same as 447.dealII
453.povray:	Same as 447.dealII

Fortran benchmarks:

410.bwaves:	basepeak = yes
416.gamess:	basepeak = yes
434.zeusmp:	-fast
437.leslie3d:	basepeak = yes
459.GemsFDTD:	basepeak = yes
465.tonto:	-prof_gen(pass 1) -prof_use(pass 2) -fast

Benchmarks using both Fortran and C:

435.gromacs:	-prof_gen(pass 1) -prof_use(pass 2) -fast
436.cactusADM:	basepeak = yes
454.calculix:	Same as 435.gromacs
481.wrf:	basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.09.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.09.xml.
