SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

NEC Corporation

Express5800/120Ri-2
(Intel Xeon processor 5140)

CPU2006 license: 9006 Test date: Jul-2007
Test sponsor: NEC Corporation Hardware Availability: May-2007
Tested by: NEC Corporation Software Availability: Apr-2007

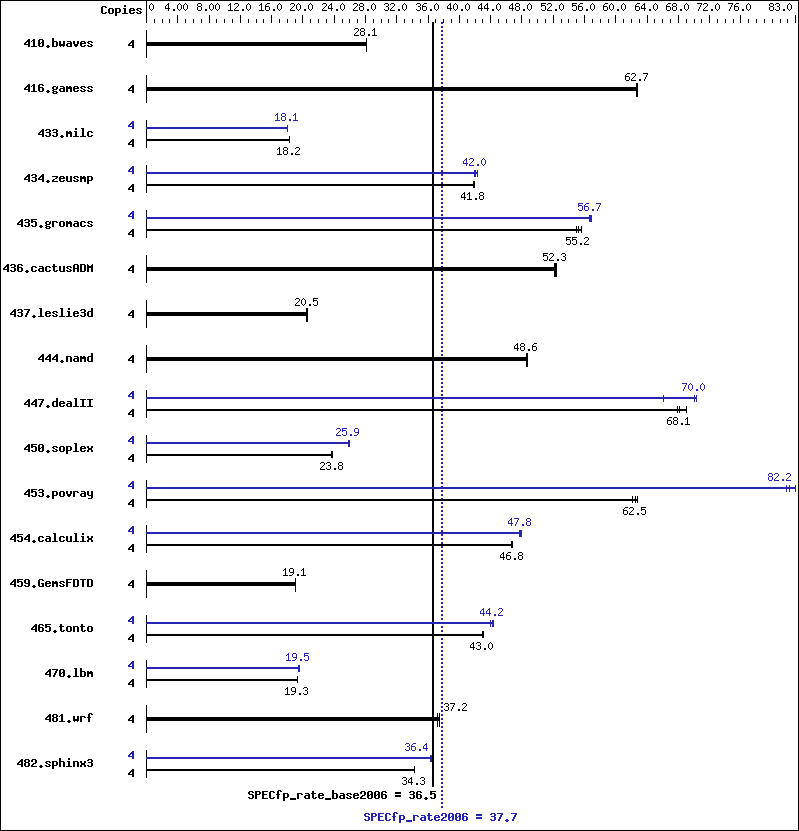

Benchmark results graph
Hardware
CPU Name: Intel Xeon 5140
CPU Characteristics: 2.33 GHz, 4MB L2, 1333MHz bus
CPU MHz: 2333
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 8 GB (4x2 GB DDR2 5300F, 2 rank, CL5-5-5, ECC)
Disk Subsystem: 1x73.2 GB SAS, 15000RPM
Other Hardware: None
Software
Operating System: 64-Bit SUSE LINUX Enterprise Server 10, Kernel
2.6.16.21-0.8-smp for x86_64
Compiler: Intel C++ Compiler for IA32/EM64T application,
Version 9.1 - Build 20070320, Package-ID:
l_cc_c_9.1.049
Intel Fortran Compiler for IA32/EM64T application,
Version 9.1 - Build 20070320, Package ID:
l_fc_c_9.1.045
Auto Parallel: No
File System: ext2
System State: Multiuser, Runlevel 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 1937 28.1 1937 28.1 1935 28.1 4 1937 28.1 1937 28.1 1935 28.1
416.gamess 4 1250 62.7 1248 62.8 1248 62.7 4 1250 62.7 1248 62.8 1248 62.7
433.milc 4 2014 18.2 2013 18.2 2013 18.2 4 2036 18.0 2034 18.1 2034 18.1
434.zeusmp 4 872 41.8 870 41.8 869 41.9 4 866 42.0 867 42.0 860 42.3
435.gromacs 4 518 55.2 520 54.9 514 55.6 4 504 56.7 502 56.9 503 56.7
436.cactusADM 4 913 52.4 914 52.3 917 52.1 4 913 52.4 914 52.3 917 52.1
437.leslie3d 4 1831 20.5 1829 20.6 1834 20.5 4 1831 20.5 1829 20.6 1834 20.5
444.namd 4 659 48.6 661 48.6 660 48.6 4 659 48.6 661 48.6 660 48.6
447.dealII 4 663 69.0 672 68.1 675 67.8 4 692 66.1 651 70.3 653 70.0
450.soplex 4 1405 23.8 1408 23.7 1404 23.8 4 1289 25.9 1286 25.9 1291 25.8
453.povray 4 342 62.2 341 62.5 339 62.7 4 257 82.9 259 82.2 260 81.8
454.calculix 4 707 46.7 705 46.8 705 46.8 4 689 47.9 690 47.8 692 47.7
459.GemsFDTD 4 2226 19.1 2227 19.1 2226 19.1 4 2226 19.1 2227 19.1 2226 19.1
465.tonto 4 916 43.0 916 43.0 915 43.0 4 889 44.3 891 44.2 894 44.0
470.lbm 4 2848 19.3 2847 19.3 2847 19.3 4 2817 19.5 2821 19.5 2823 19.5
481.wrf 4 1191 37.5 1202 37.2 1201 37.2 4 1191 37.5 1202 37.2 1201 37.2
482.sphinx3 4 2271 34.3 2274 34.3 2274 34.3 4 2144 36.4 2142 36.4 2145 36.3

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' used to bind processes to CPUs

General Notes

 The system bus runs at 1333 MHz
 All binaries were built with 64-bit Intel compiler except:
 433.milc, 434.zeusmp, 450.soplex, 470.lbm and 482.sphinx3 in peak were built with
 32-bit Intel compiler by changing the path for include and library files.

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks:

 /opt/intel/cc/9.1.049/bin/icc   -I/opt/intel/cc/9.1.049/include   -L/opt/intel/cc/9.1.049/lib

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /opt/intel/cc/9.1.049/bin/icpc   -I/opt/intel/cc/9.1.049/include   -L/opt/intel/cc/9.1.049/lib

Fortran benchmarks (except as noted below):

 ifort
434.zeusmp:  /opt/intel/fc/9.1.045/bin/ifort   -I/opt/intel/fc/9.1.045/include   -L/opt/intel/fc/9.1.045/lib

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
470.lbm:  Same as 433.milc
482.sphinx3:  -fast

C++ benchmarks:

444.namd:  basepeak = yes
447.dealII:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
450.soplex:  Same as 447.dealII
453.povray:  Same as 447.dealII

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  basepeak = yes
434.zeusmp:  -fast
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast

Benchmarks using both Fortran and C:

435.gromacs:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
436.cactusADM:  basepeak = yes
454.calculix:  Same as 435.gromacs
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/NEC-ic91-linux-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/NEC-ic91-linux-flags.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 12:44:05 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 8 August 2007.
