SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Intel Corporation

Intel DQ965GF motherboard (Intel Core 2 Quad
Q6700)

SPECfp®2006 = 16.6

CPU2006 license: 13 Test date: Jul-2007
Test sponsor: Intel Corporation Hardware Availability: Jul-2007
Tested by: Intel Corporation Software Availability: Aug-2006

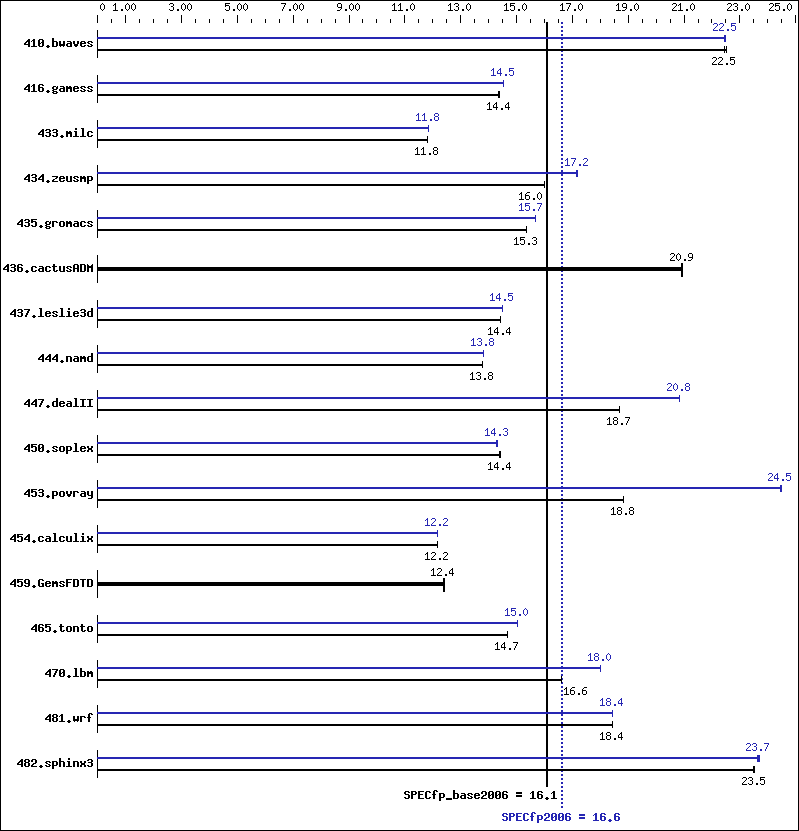

Benchmark results graph
Hardware
CPU Name: Intel Core 2 Quad Q6700
CPU Characteristics: 2.67 GHz, 1066 MHz bus
CPU MHz: 2667
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 2 GB (2 1GB Micron MT16HTF12864AY-80ED4 DDR2 800,
CL5)
Disk Subsystem: Seagate ST3320620AS 320GB Barracuda 7200.10 NCQ
SATA II
Other Hardware: None
Software
Operating System: Windows Vista32 Ultimate
Compiler: Intel C++ Compiler for IA32 version 10.0
Build 20070426 Package ID: W_CC_P_10.0.025
Intel Fortran Compiler for IA32 version 10.0
Build 20070426 Package ID: W_FC_P_10.0.025
Microsoft Visual Studio .Net 2003 (for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: SmartHeap Library Version 8.0 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 604 22.5 605 22.5 605 22.5 605 22.5 605 22.5 604 22.5
416.gamess 1363 14.4 1362 14.4 1362 14.4 1347 14.5 1348 14.5 1347 14.5
433.milc 777 11.8 777 11.8 777 11.8 775 11.8 775 11.8 775 11.8
434.zeusmp 569 16.0 569 16.0 569 16.0 530 17.2 530 17.2 530 17.2
435.gromacs 465 15.3 465 15.3 465 15.3 456 15.7 456 15.7 456 15.7
436.cactusADM 572 20.9 571 20.9 570 21.0 572 20.9 571 20.9 570 21.0
437.leslie3d 652 14.4 651 14.4 652 14.4 648 14.5 649 14.5 648 14.5
444.namd 582 13.8 582 13.8 581 13.8 581 13.8 580 13.8 580 13.8
447.dealII 613 18.7 612 18.7 613 18.7 549 20.8 549 20.8 549 20.8
450.soplex 579 14.4 579 14.4 578 14.4 583 14.3 583 14.3 583 14.3
453.povray 283 18.8 282 18.8 282 18.8 217 24.5 217 24.5 218 24.4
454.calculix 679 12.2 679 12.2 678 12.2 678 12.2 678 12.2 678 12.2
459.GemsFDTD 856 12.4 855 12.4 856 12.4 856 12.4 855 12.4 856 12.4
465.tonto 670 14.7 670 14.7 670 14.7 654 15.0 654 15.0 655 15.0
470.lbm 827 16.6 827 16.6 827 16.6 763 18.0 763 18.0 763 18.0
481.wrf 606 18.4 606 18.4 605 18.5 606 18.4 606 18.4 605 18.5
482.sphinx3 829 23.5 828 23.5 828 23.5 822 23.7 824 23.6 823 23.7

General Notes

 Tested systems can be used with Shin-G ATX case, Antec NeoPower 480W power supply
 Product description located as of 7/2007:
 http://www.intel.com/products/motherboard/DQ965GF/index.htm
 The system bus runs at 1066 MHz
 System was configured with integrated graphics card
 Binaries were built on Windows XP Professional SP2 with 4GB of RAM and /3GB boot switch

Base Compiler Invocation

C benchmarks:

 icl -Qvc7.1   -Qc99

C++ benchmarks:

 icl -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc7.1   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 -fast   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   /F950000000

Benchmarks using both Fortran and C:

 -fast   /F950000000

Peak Compiler Invocation

C benchmarks:

 icl -Qvc7.1   -Qc99

C++ benchmarks:

 icl -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc7.1   -Qc99   ifort

Peak Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

433.milc:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Oa   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
470.lbm:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Qscalar-rep-   -Qprefetch   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
482.sphinx3:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

444.namd:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Oa   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
447.dealII:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qprefetch   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
450.soplex:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE
453.povray:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qansi-alias   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  -fast   /F950000000
416.gamess:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F950000000
434.zeusmp:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxT   -O2   -Qprec_div-   -Qunroll0   -Qscalar-rep-   /F950000000
437.leslie3d:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F950000000
459.GemsFDTD:  basepeak = yes
465.tonto:  Same as 437.leslie3d

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Oa   /F950000000
436.cactusADM:  basepeak = yes
454.calculix:  -fast   /F950000000
481.wrf:  Same as 454.calculix

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.42.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.42.xml.
