| CPU2006 license: | 13 | Test date: | Jun-2007 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Aug-2006 |
| Tested by: | Intel Corporation | Software Availability: | Aug-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Core 2 Duo E6700 |
| CPU Characteristics: | 2.67 GHz, 1066 MHz bus |
| CPU MHz: | 2667 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 2 GB (2 1GB Micron MT16HTF12864AY-80ED4 DDR2 800, CL5) |
| Disk Subsystem: | Seagate ST3320620AS 320GB Barracuda 7200.10 NCQ SATA II |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Vista32 Ultimate |
| Compiler: | Intel C++ Compiler for IA32 version 10.0 Build 20070426 Package ID: W_CC_P_10.0.025 Microsoft Visual Studio .Net 2003 (for libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | SmartHeap Library Version 8.0 from http://www.microquill.com/ |

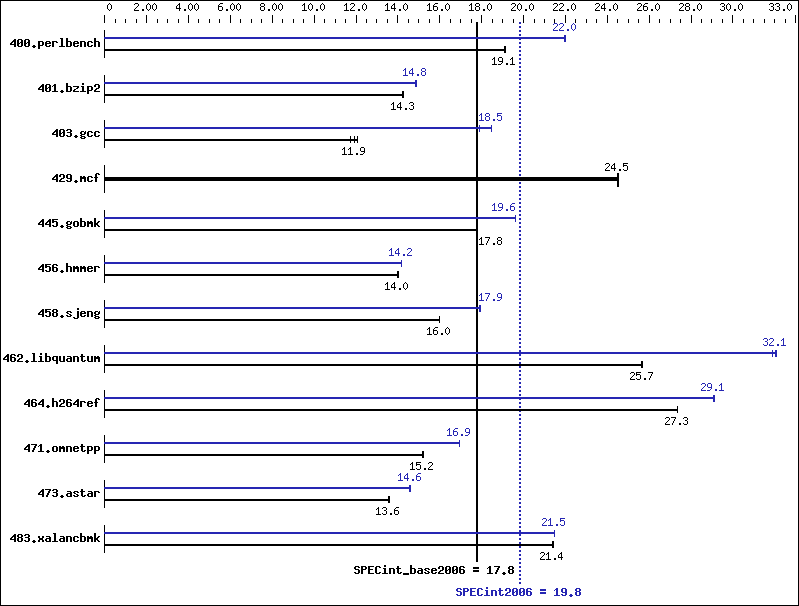

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 511 | 19.1 | 511 | 19.1 | 511 | 19.1 | 444 | 22.0 | 445 | 22.0 | 444 | 22.0 |
| 401.bzip2 | 677 | 14.3 | 676 | 14.3 | 680 | 14.2 | 651 | 14.8 | 650 | 14.8 | 649 | 14.9 |
| 403.gcc | 676 | 11.9 | 668 | 12.1 | 687 | 11.7 | 450 | 17.9 | 436 | 18.5 | 435 | 18.5 |
| 429.mcf | 372 | 24.5 | 372 | 24.5 | 372 | 24.5 | 372 | 24.5 | 372 | 24.5 | 372 | 24.5 |
| 445.gobmk | 590 | 17.8 | 590 | 17.8 | 590 | 17.8 | 534 | 19.6 | 535 | 19.6 | 535 | 19.6 |
| 456.hmmer | 667 | 14.0 | 666 | 14.0 | 666 | 14.0 | 659 | 14.2 | 659 | 14.2 | 659 | 14.2 |
| 458.sjeng | 757 | 16.0 | 756 | 16.0 | 757 | 16.0 | 675 | 17.9 | 675 | 17.9 | 675 | 17.9 |
| 462.libquantum | 807 | 25.7 | 807 | 25.7 | 808 | 25.6 | 646 | 32.1 | 649 | 31.9 | 646 | 32.1 |
| 464.h264ref | 809 | 27.3 | 809 | 27.4 | 809 | 27.3 | 761 | 29.1 | 760 | 29.1 | 761 | 29.1 |
| 471.omnetpp | 412 | 15.2 | 411 | 15.2 | 411 | 15.2 | 369 | 16.9 | 369 | 16.9 | 369 | 16.9 |
| 473.astar | 517 | 13.6 | 517 | 13.6 | 517 | 13.6 | 482 | 14.6 | 481 | 14.6 | 481 | 14.6 |
| 483.xalancbmk | 322 | 21.4 | 322 | 21.4 | 323 | 21.4 | 321 | 21.5 | 321 | 21.5 | 321 | 21.5 |
General Notes
Tested systems can be used with Shin-G ATX case, Antec NeoPower 480W power supply Product description located as of 7/2007: http://www.intel.com/products/motherboard/DQ965GF/index.htm The system bus runs at 1066 MHz System was configured with integrated graphics card Binaries were built on Windows XP Professional SP2 with 4GB of RAM and /3GB boot switch
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Base Optimization Flags
C benchmarks:
| -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qprefetch /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 403.gcc: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 -link /FORCE:MULTIPLE |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -QxT -O2 -Qipo -Qprec_div- -Qansi-alias /F512000000 -link /FORCE:MULTIPLE |
| 456.hmmer: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll2 -Qansi-alias /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 458.sjeng: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll4 /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 462.libquantum: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll4 -Ob0 -Qprefetch -Qopt-streaming-stores:always /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 464.h264ref: | Same as 456.hmmer |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
