SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM System x3655 (AMD Opteron 2220)

CPU2006 license: 11 Test date: Jul-2007
Test sponsor: IBM Corporation Hardware Availability: Jan-2007
Tested by: IBM Corporation Software Availability: Mar-2007

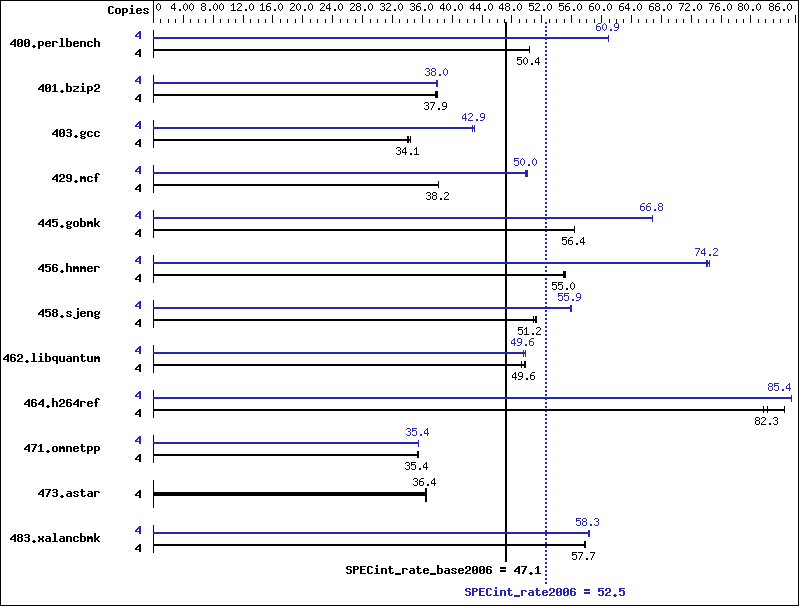

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2220
CPU Characteristics:
CPU MHz: 2800
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1, 2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 16 GB (8 x 2GB DDR2-5300 ECC)
Disk Subsystem: 1 x 36 GB SAS, 10000 RPM
Other Hardware: None
Software
Operating System: SLES 10 (x86_64), 2.6.16.21-0.8-smp
Compiler: QLogic PathScale
Compiler Suite, Release 3.0
Auto Parallel: No
File System: ext3
System State: Multi-user, run level 3
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap 8.1

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 4 776 50.4 775 50.4 776 50.3 4 641 61.0 641 60.9 642 60.9
401.bzip2 4 1017 38.0 1017 37.9 1021 37.8 4 1015 38.0 1017 37.9 1015 38.0
403.gcc 4 936 34.4 944 34.1 946 34.1 4 750 42.9 750 42.9 753 42.8
429.mcf 4 955 38.2 956 38.2 956 38.1 4 730 50.0 728 50.1 732 49.8
445.gobmk 4 744 56.4 744 56.4 744 56.4 4 628 66.8 629 66.8 628 66.8
456.hmmer 4 680 54.9 678 55.0 677 55.1 4 503 74.2 502 74.4 504 74.0
458.sjeng 4 951 50.9 943 51.3 946 51.2 4 865 55.9 867 55.8 866 55.9
462.libquantum 4 1682 49.3 1664 49.8 1670 49.6 4 1666 49.7 1673 49.5 1672 49.6
464.h264ref 4 1076 82.3 1084 81.7 1047 84.5 4 1037 85.4 1036 85.4 1037 85.4
471.omnetpp 4 705 35.4 707 35.4 707 35.4 4 706 35.4 705 35.4 706 35.4
473.astar 4 769 36.5 772 36.4 772 36.4 4 769 36.5 772 36.4 772 36.4
483.xalancbmk 4 477 57.8 478 57.7 478 57.7 4 473 58.3 473 58.3 474 58.2

General Notes

 taskset utility used to bind CPU(s) to processes

Base Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -Ofast   -OPT:malloc_alg=1

C++ benchmarks:

 -Ofast   -m32   -L/tools/SmartHeap_8.1/lib -lsmartheap

Base Other Flags

C benchmarks:

 -IPA:max_jobs=2

C++ benchmarks:

 -IPA:max_jobs=2

Peak Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:opt=0
401.bzip2:  -O3   -LNO:ou_prod_max=10   -OPT:Ofast   -OPT:alias=disjoint
403.gcc:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -m32   -O3   -OPT:Ofast
429.mcf:  -m32   -O3   -ipa   -L/tools/SmartHeap_8.1/lib -lsmartheap
445.gobmk:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:alias=disjoint   -LNO:simd=0   -LNO:minvariant=off   -WOPT:retype_expr=on
456.hmmer:  -O2   -OPT:alias=disjoint   -OPT:malloc_alg=1   -CG:cflow=0
458.sjeng:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -IPA:plimit=50000   -IPA:pu_reorder=2
462.libquantum:  -O3   -ipa   -CG:local_fwd_sched=on   -IPA:space=1000
464.h264ref:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -IPA:plimit=20000   -OPT:alias=disjoint   -LNO:prefetch=0

C++ benchmarks:

471.omnetpp:  -Ofast   -CG:gcm=off   -m32   -L/tools/SmartHeap_8.1/lib -lsmartheap
473.astar:  basepeak = yes
483.xalancbmk:  -Ofast   -m32   -OPT:unroll_times_max=8   -L/tools/SmartHeap_8.1/lib -lsmartheap

Peak Other Flags

C benchmarks:

 -IPA:max_jobs=2

C++ benchmarks:

 -IPA:max_jobs=2

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.13.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.13.xml.
