SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

PRIMERGY TX200 S3, Intel Xeon processor 5140,
2.33 GHz

CPU2006 license: 22 Test date: Jul-2007
Test sponsor: Fujitsu Siemens Computers Hardware Availability: Jul-2006
Tested by: Fujitsu Siemens Computers Software Availability: Jun-2007

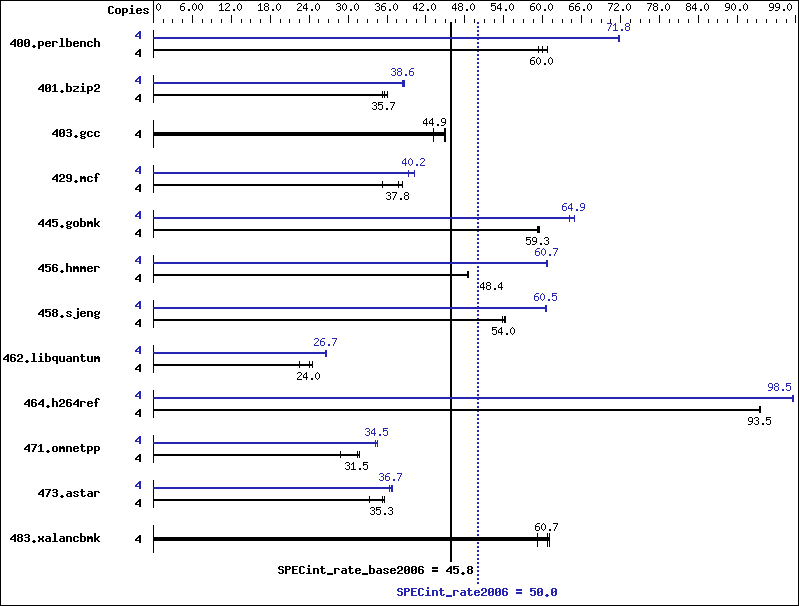

Benchmark results graph
Hardware
CPU Name: Intel Xeon 5140
CPU Characteristics: 1333 MHz system bus
CPU MHz: 2333
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 8 GB (4x2 GB DDR2 PC2-5300F, 2 rank, CAS 5-5-5,
with ECC)
Disk Subsystem: Seagate ST336754SS (SAS, 36GB, 15000rpm)
Other Hardware: None
Software
Operating System: SUSE LINUX Enterprise Server 10 (x86_64), Kernel
2.6.16.21-0.8-smp
Compiler: Intel C++ Compiler for IA32/EM64T application,
Version 10.0 - Build 20070308, Package-ID:
l_cc_p_10.0.023
Auto Parallel: No
File System: ext2
System State: Multiuser, Runlevel 3
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: Smart Heap Library, Version 8.1
binutils-2.17.tar.gz, Version 2.17

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 4 659 59.3 651 60.0 644 60.7 4 545 71.8 545 71.7 544 71.8
401.bzip2 4 1091 35.4 1082 35.7 1069 36.1 4 1000 38.6 1004 38.4 998 38.7
403.gcc 4 746 43.2 717 44.9 715 45.0 4 746 43.2 717 44.9 715 45.0
429.mcf 4 1035 35.3 964 37.8 949 38.5 4 930 39.2 907 40.2 908 40.2
445.gobmk 4 709 59.1 708 59.3 706 59.4 4 654 64.2 647 64.9 647 64.9
456.hmmer 4 772 48.3 770 48.5 771 48.4 4 615 60.7 614 60.8 616 60.6
458.sjeng 4 901 53.7 896 54.0 892 54.3 4 798 60.6 800 60.5 800 60.5
462.libquantum 4 3676 22.5 3453 24.0 3388 24.5 4 3131 26.5 3100 26.7 3100 26.7
464.h264ref 4 946 93.5 946 93.6 948 93.4 4 899 98.5 899 98.5 897 98.7
471.omnetpp 4 869 28.8 794 31.5 787 31.8 4 729 34.3 723 34.6 724 34.5
473.astar 4 844 33.3 795 35.3 790 35.6 4 772 36.4 765 36.7 763 36.8
483.xalancbmk 4 467 59.1 455 60.7 453 61.0 4 467 59.1 455 60.7 453 61.0

General Notes


 All binaries were built with 32-bit Intel compiler except:
 401.bzip2 and 456.hmmer in peak were built with 64-bit Intel
 compiler by changing the path for include and library files.

 BIOS configuration:
 Adjacent Sector Prefetch = Disable

 For information about Fujitsu Siemens Computers please see:
 http://www.fujitsu-siemens.com

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -xT   -O3   -ipo   -no-prec-div   -ansi-alias   -L/opt/SmartHeap_8_1/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/cce/10.0.023/bin/icc   -I/opt/intel/cce/10.0.023/include   -L/opt/intel/cce/10.0.023/lib
456.hmmer:  /opt/intel/cce/10.0.023/bin/icc   -I/opt/intel/cce/10.0.023/include   -L/opt/intel/cce/10.0.023/lib

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
401.bzip2:  -fast
403.gcc:  basepeak = yes
429.mcf:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -prefetch   -L/opt/SmartHeap_8_1/lib -lsmartheap
445.gobmk:  Same as 400.perlbench
456.hmmer:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -unroll2
458.sjeng:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -unroll4
462.libquantum:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -prefetch   -opt-streaming-stores always
464.h264ref:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -ansi-alias   -L/opt/SmartHeap_8_1/lib -lsmartheap
473.astar:  Same as 471.omnetpp
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/FSC_Intel_flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/FSC_Intel_flags.xml.
