SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

Dell Precision 690 (Intel 5160, 3.00 GHz)

SPECfp®2006 = 16.9

CPU2006 license: 55 Test date: Aug-2007
Test sponsor: Dell Inc. Hardware Availability: May-2006
Tested by: Dell Inc. Software Availability: Jun-2007

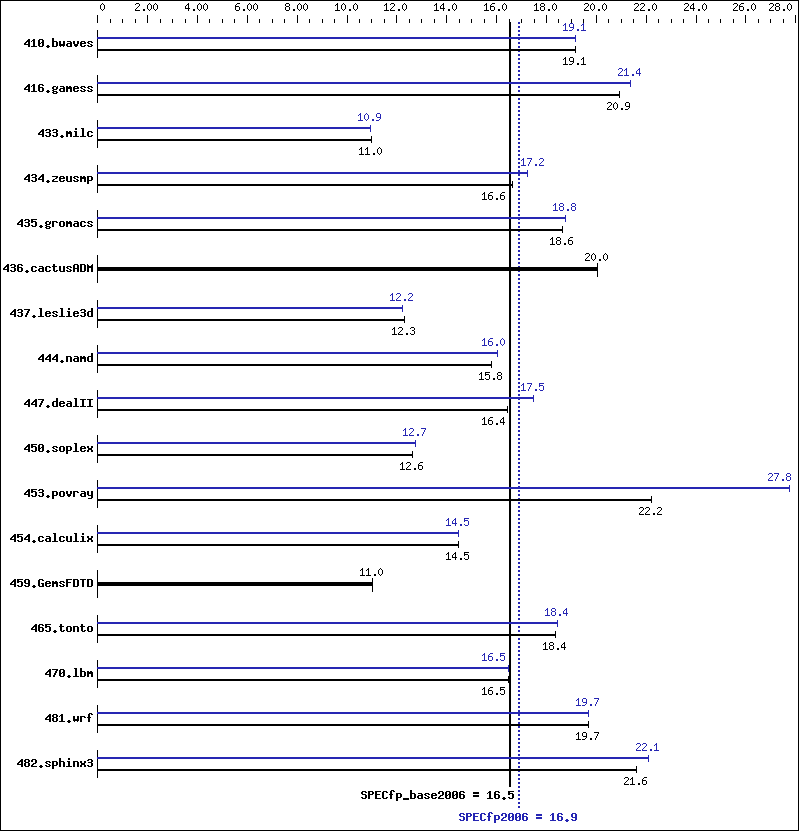

Benchmark results graph
Hardware
CPU Name: Intel Xeon 5160
CPU Characteristics: 1333 MHz Bus Speed
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 8 GB (8x1 GB 667 MHz ECC CL5 FB-DIMM)
Disk Subsystem: 1 x 73GB SAS 10K RPM
Other Hardware: None
Software
Operating System: Windows XP Professional x64 Edition SP2
Compiler: Intel C++ Compiler for Intel 64, Version 10.0
Build 20070426 Package ID: W_CC_P_10.0.025
Intel Visual Fortran Compiler for Intel 64,
Version 10.0
Build 20070426 Package ID: W_FC_P_10.0.025
Microsoft Visual Studio 2005 SP1
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 8.0 for x64

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 710 19.1 710 19.1 710 19.1 710 19.1 710 19.1 710 19.1
416.gamess 935 20.9 935 20.9 935 20.9 916 21.4 916 21.4 916 21.4
433.milc 837 11.0 837 11.0 837 11.0 839 10.9 839 10.9 839 10.9
434.zeusmp 547 16.6 547 16.6 547 16.6 528 17.2 528 17.2 528 17.2
435.gromacs 383 18.6 383 18.6 383 18.6 380 18.8 380 18.8 380 18.8
436.cactusADM 596 20.0 596 20.0 596 20.0 596 20.0 596 20.0 596 20.0
437.leslie3d 763 12.3 764 12.3 764 12.3 768 12.2 768 12.2 768 12.2
444.namd 508 15.8 508 15.8 508 15.8 501 16.0 501 16.0 501 16.0
447.dealII 696 16.4 696 16.4 696 16.4 655 17.5 655 17.5 655 17.5
450.soplex 660 12.6 660 12.6 660 12.6 654 12.7 654 12.7 654 12.7
453.povray 239 22.2 239 22.2 239 22.2 192 27.8 192 27.8 192 27.8
454.calculix 569 14.5 569 14.5 569 14.5 569 14.5 569 14.5 569 14.5
459.GemsFDTD 963 11.0 963 11.0 963 11.0 963 11.0 963 11.0 963 11.0
465.tonto 536 18.4 536 18.4 536 18.4 534 18.4 534 18.4 534 18.4
470.lbm 835 16.5 835 16.5 835 16.5 835 16.5 835 16.5 835 16.5
481.wrf 568 19.7 568 19.7 568 19.7 568 19.7 568 19.7 568 19.7
482.sphinx3 901 21.6 901 21.6 901 21.6 882 22.1 882 22.1 882 22.1

General Notes

 Binaries were built on Windows Vista Ultimate (64-bit)

 BIOS Settings
   Snoop Filter                 : OFF
   Adjacent Cache Line Prefetch : ON
   Hardware Prefetcher          : ON

   Snoop Filter
     Preserves cache coherency while minimizing snoops
     to remote nodes.

   Adjacent Cache Line Prefetch
     Prefetch data in order to shorten execution cycles
     and maximize data processing efficiency.

Base Compiler Invocation

C benchmarks:

 icl   -Qstd=c99

C++ benchmarks:

 icl

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64
416.gamess:  -DSPEC_CPU_P64
433.milc:  -D_Complex=   -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -D_Complex=   -DSPEC_CPU_P64
436.cactusADM:  -D_Complex=   -DSPEC_CPU_P64   -Qlowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -D_Complex=   -DSPEC_CPU_P64   -DBOOST_NO_INTRINSIC_WCHAR_T   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -D_Complex=   -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -Qlowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -D_Complex=   -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -D_Complex=   -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -fast   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   /F950000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -fast   -Qauto_ilp32   /F950000000    -link /FORCE:MULTIPLE

Peak Compiler Invocation

C benchmarks:

 icl   -Qstd=c99

C++ benchmarks:

 icl

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qstd=c99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Oa   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE
470.lbm:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Qscalar-rep-   -Qprefetch   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE
482.sphinx3:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

444.namd:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Oa   -Qcxx_features   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE
447.dealII:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qprefetch   -Qcxx_features   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE
450.soplex:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx_features   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE
453.povray:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qansi-alias   -Qcxx_features   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  ONESTEP   -fast   /F950000000    -link /FORCE:MULTIPLE
416.gamess:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F950000000    -link /FORCE:MULTIPLE
434.zeusmp:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxT   -O2   -Qprec-div-   -Qunroll0   -Qscalar-rep-   /F950000000    -link /FORCE:MULTIPLE
437.leslie3d:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F950000000    -link /FORCE:MULTIPLE
459.GemsFDTD:  basepeak = yes
465.tonto:  Same as 437.leslie3d

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Oa   -Qauto_ilp32   /F950000000    -link /FORCE:MULTIPLE
436.cactusADM:  basepeak = yes
454.calculix:  -fast   -Qauto_ilp32   /F950000000    -link /FORCE:MULTIPLE
481.wrf:  Same as 454.calculix

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/dell.ic10.windows.flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/dell.ic10.windows.flags.xml.
