SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

ProLiant DL385 G2
(3.0 GHz AMD Opteron 2222)

CPU2006 license: 3 Test date: Aug-2007
Test sponsor: Hewlett-Packard Company Hardware Availability: Sep-2007
Tested by: Hewlett-Packard Company Software Availability: Oct-2007

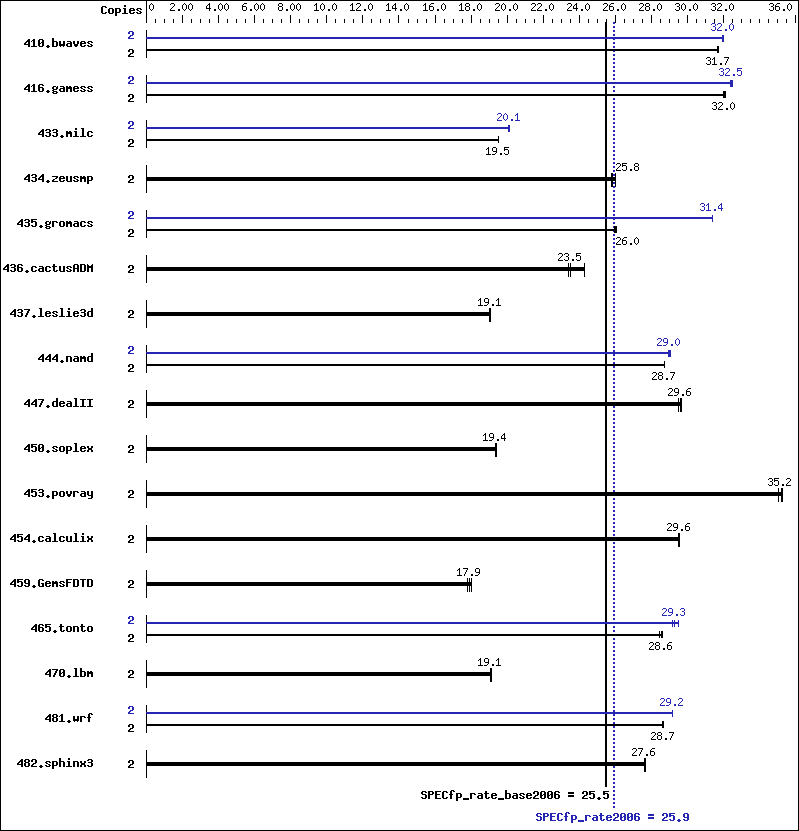

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2222
CPU Characteristics:
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 16 GB (4x4 GB, PC2-5300P CL5)
Disk Subsystem: 1x72 GB 10 K SAS
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (x86_64) SP1
kernel 2.6.16.46-0.12-smp
Compiler: The Portland Group (PGI)
PGI pgf90 7.1-0 Fortran Compiler
PGI pgcc 7.1-0 C Compiler
PGI pgCC 7.1-0 C++ Compiler
Auto Parallel: No
File System: ext2
System State: Multi-user, run level 3
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: none

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 2 857 31.7 857 31.7 858 31.7 2 851 32.0 850 32.0 850 32.0
416.gamess 2 1223 32.0 1224 32.0 1220 32.1 2 1209 32.4 1206 32.5 1206 32.5
433.milc 2 942 19.5 941 19.5 940 19.5 2 913 20.1 914 20.1 912 20.1
434.zeusmp 2 704 25.8 705 25.8 700 26.0 2 704 25.8 705 25.8 700 26.0
435.gromacs 2 550 26.0 549 26.0 548 26.0 2 455 31.4 455 31.4 455 31.4
436.cactusADM 2 1021 23.4 984 24.3 1017 23.5 2 1021 23.4 984 24.3 1017 23.5
437.leslie3d 2 984 19.1 987 19.0 985 19.1 2 984 19.1 987 19.0 985 19.1
444.namd 2 559 28.7 558 28.7 558 28.7 2 553 29.0 552 29.1 555 28.9
447.dealII 2 772 29.6 775 29.5 771 29.7 2 772 29.6 775 29.5 771 29.7
450.soplex 2 861 19.4 859 19.4 861 19.4 2 861 19.4 859 19.4 861 19.4
453.povray 2 304 35.0 302 35.2 302 35.2 2 304 35.0 302 35.2 302 35.2
454.calculix 2 558 29.6 558 29.6 560 29.5 2 558 29.6 558 29.6 560 29.5
459.GemsFDTD 2 1178 18.0 1184 17.9 1193 17.8 2 1178 18.0 1184 17.9 1193 17.8
465.tonto 2 688 28.6 689 28.6 692 28.4 2 672 29.3 667 29.5 674 29.2
470.lbm 2 1437 19.1 1440 19.1 1439 19.1 2 1437 19.1 1440 19.1 1439 19.1
481.wrf 2 779 28.7 779 28.7 780 28.6 2 766 29.2 766 29.2 766 29.2
482.sphinx3 2 1411 27.6 1410 27.6 1411 27.6 2 1411 27.6 1410 27.6 1411 27.6

Operating System Notes

Environment stack size set to 'unlimited'
ulimit -l set to 1048576
'numactl' was used to bind copies to the cores
Set vm/nr_hugepages=1024 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Fortran benchmarks:

 pgf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -Mnomain
436.cactusADM:  -DSPEC_CPU_LP64   -Mnomain
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:8   -tp k8-64   -Bstatic_pgi

C++ benchmarks:

 -fast   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:8   --zc_eh   -tp k8-64   -Bstatic_pgi

Fortran benchmarks:

 -fast   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:8   -tp k8-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

 -fast   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:8   -tp k8-64   -Bstatic_pgi

Base Other Flags

C benchmarks:

 -w

C++ benchmarks:

 -w

Fortran benchmarks:

 -w

Benchmarks using both Fortran and C:

 -w

Peak Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Fortran benchmarks:

 pgf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -Mpfi(pass 1)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mipa=noarg(pass 2)   -Mpfo(pass 2)   -fast   -O4   -Mdse   -Mfprelaxed   -Msmartalloc=huge:8   -tp k8-64   -Bstatic_pgi
470.lbm:  basepeak = yes
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -fast   -O4   -Mfprelaxed   -Msmartalloc=huge:32   --zc_eh   -tp k8-64   -Bstatic_pgi
447.dealII:  basepeak = yes
450.soplex:  basepeak = yes
453.povray:  basepeak = yes

Fortran benchmarks:

410.bwaves:  -fast   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc   -tp k8-64   -Bstatic_pgi
416.gamess:  -fast   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Mvect=noaltcode   -Msmartalloc=huge:64   -tp k8-64   -Bstatic_pgi
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -fast   -Mfprelaxed   -Msmartalloc=huge:128   -Mipa=fast   -Mipa=inline   -Mvect=noaltcode   -tp k8-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

435.gromacs:  -fast   -O4   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:16   -tp k8-64   -Mfpapprox=rsqrt   -Bstatic_pgi
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  -fast   -Mfprelaxed   -Msmartalloc=huge:32   -Mvect=noaltcode   -tp k8-64   -Bstatic_pgi

Peak Other Flags

C benchmarks:

 -w

C++ benchmarks:

 -w

Fortran benchmarks:

 -w

Benchmarks using both Fortran and C:

 -w

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/hp-pgi710_flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/hp-pgi710_flags.xml.
