| CPU2006 license: | 97 | Test date: | Aug-2007 |
|---|---|---|---|
| Test sponsor: | Acer Incorporated | Hardware Availability: | Nov-2006 |
| Tested by: | Acer Incorporated | Software Availability: | Jun-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5310 |
| CPU Characteristics: | 1066MHz system bus |
| CPU MHz: | 1600 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1, 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 x 2048MB ECC FB-DIMM DDR2-667 CL5-5-5) |
| Disk Subsystem: | 1 x 73GB 10000RPM SAS HDD |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 10 EM64T kernel |
| Compiler: | Intel C++ Compiler for Linux32 and Linux64 version 10.0 Build 20070426 Package ID: l_cc_p_10.0.023 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Multi-user, level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap Library 8.1 |

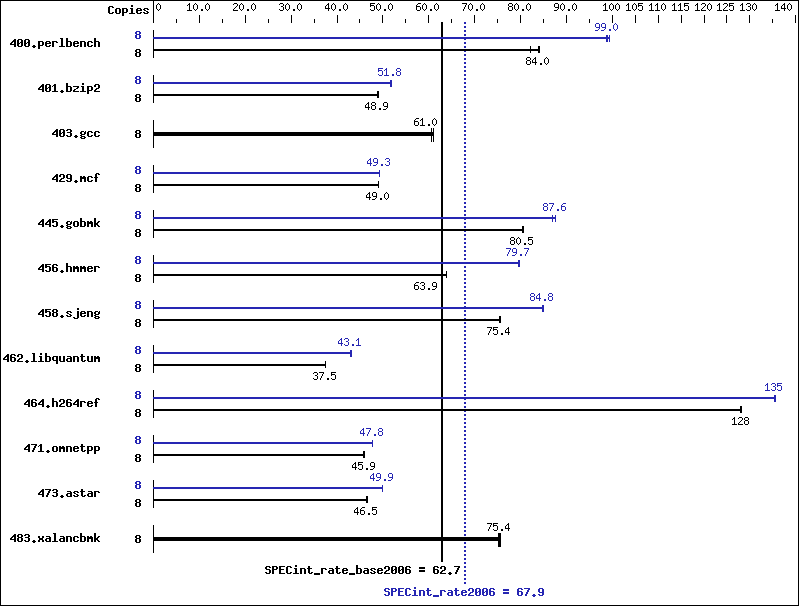

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 952 | 82.1 | 930 | 84.1 | 931 | 84.0 | 8 | 789 | 99.0 | 791 | 98.8 | 786 | 99.4 |
| 401.bzip2 | 8 | 1574 | 49.1 | 1578 | 48.9 | 1581 | 48.8 | 8 | 1490 | 51.8 | 1493 | 51.7 | 1492 | 51.8 |
| 403.gcc | 8 | 1054 | 61.1 | 1056 | 61.0 | 1062 | 60.7 | 8 | 1054 | 61.1 | 1056 | 61.0 | 1062 | 60.7 |
| 429.mcf | 8 | 1486 | 49.1 | 1488 | 49.0 | 1488 | 49.0 | 8 | 1478 | 49.4 | 1480 | 49.3 | 1482 | 49.2 |
| 445.gobmk | 8 | 1041 | 80.6 | 1042 | 80.5 | 1043 | 80.5 | 8 | 957 | 87.7 | 958 | 87.6 | 965 | 86.9 |
| 456.hmmer | 8 | 1167 | 64.0 | 1171 | 63.8 | 1168 | 63.9 | 8 | 939 | 79.5 | 937 | 79.7 | 937 | 79.7 |
| 458.sjeng | 8 | 1281 | 75.6 | 1284 | 75.4 | 1283 | 75.4 | 8 | 1141 | 84.8 | 1143 | 84.7 | 1140 | 84.9 |
| 462.libquantum | 8 | 4418 | 37.5 | 4420 | 37.5 | 4419 | 37.5 | 8 | 3850 | 43.1 | 3846 | 43.1 | 3851 | 43.0 |
| 464.h264ref | 8 | 1381 | 128 | 1383 | 128 | 1381 | 128 | 8 | 1307 | 135 | 1309 | 135 | 1307 | 135 |
| 471.omnetpp | 8 | 1090 | 45.9 | 1089 | 45.9 | 1090 | 45.9 | 8 | 1047 | 47.8 | 1047 | 47.7 | 1047 | 47.8 |
| 473.astar | 8 | 1208 | 46.5 | 1207 | 46.5 | 1205 | 46.6 | 8 | 1127 | 49.8 | 1124 | 50.0 | 1125 | 49.9 |
| 483.xalancbmk | 8 | 733 | 75.3 | 730 | 75.6 | 732 | 75.4 | 8 | 733 | 75.3 | 730 | 75.6 | 732 | 75.4 |
General Notes
This result was measured on the Acer Altos R520
The Altos R720 and Altos R520 are electronically equivalent.
BIOS Settings
Snoop Filter set to OFF
Snoop Filter preserves cache coherency while
minimizing snoops to remote nodes.
Adjacent Cache Line Prefetch set to OFF
Prefetch data in order to shorten execution cycles
and maximize data processing efficiency.
Optimization for high-frequency FSB applications set to ON
taskset was used to bind copies to cores
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/spec/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec_div -ansi-alias |
| 456.hmmer: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always |
| 464.h264ref: | Same as 456.hmmer |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec_div -ansi-alias -Wl,-z,muldefs -L/spec/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | Same as 471.omnetpp |
| 483.xalancbmk: | basepeak = yes |
