SPEC® CINT2006 Result

Hewlett-Packard Company

ProLiant DL580 G4
(3.0 GHz, Intel Xeon processor 7120M)

Hardware
CPU Name:	Intel Xeon 7120M
CPU Characteristics:	3.0 GHz, 800 MHz system bus
CPU MHz:	3000
FPU:	Integrated
CPU(s) enabled:	2 cores, 1 chip, 2 cores/chip, 2 threads/core
CPU(s) orderable:	1,2,4 chips
Primary Cache:	12 K micro-ops I + 16 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
L3 Cache:	4 MB I+D on chip per chip
Other Cache:	None
Memory:	32 GB (16x2 GB PC2-3200R)
Disk Subsystem:	1x72 GB 15K SAS
Other Hardware:	None

Software
Operating System:	SuSE Linux Enterprise Server 10 (x86_64) kernel 2.6.16.21-0.8-smp
Compiler:	Intel C++ Compiler for IA32/EM64T applications, Version 10.0 Build 20070426 Package ID: l_cc_p_10.0.023
Auto Parallel:	No
File System:	ext2
System State:	Multi-user run level 3
Base Pointers:	32-bit
Peak Pointers:	32/64-bit
Other Software:	MicroQuill SmartHeap 8.1 libraries

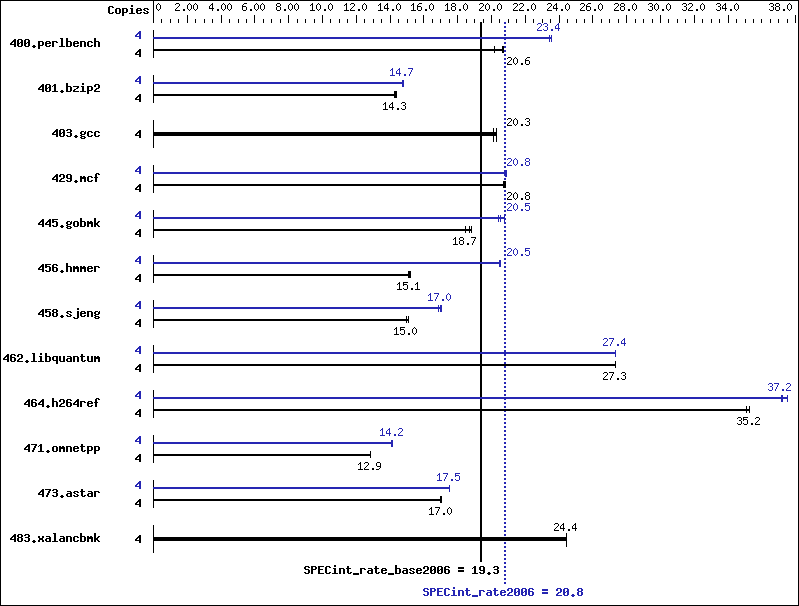

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	4	1894	20.6	1885	20.7	1938	20.2	4	1668	23.4	1658	23.6	1667	23.4
401.bzip2	4	2706	14.3	2688	14.4	2694	14.3	4	2620	14.7	2608	14.8	2622	14.7
403.gcc	4	1588	20.3	1589	20.3	1603	20.1	4	1588	20.3	1589	20.3	1603	20.1
429.mcf	4	1757	20.8	1753	20.8	1760	20.7	4	1751	20.8	1753	20.8	1747	20.9
445.gobmk	4	2276	18.4	2243	18.7	2228	18.8	4	2046	20.5	2022	20.7	2058	20.4
456.hmmer	4	2457	15.2	2464	15.1	2469	15.1	4	1822	20.5	1816	20.6	1821	20.5
458.sjeng	4	3212	15.1	3228	15.0	3228	15.0	4	2871	16.9	2839	17.0	2849	17.0
462.libquantum	4	3029	27.4	3033	27.3	3030	27.3	4	3029	27.4	3029	27.4	3029	27.4
464.h264ref	4	2524	35.1	2512	35.2	2512	35.2	4	2381	37.2	2377	37.2	2359	37.5
471.omnetpp	4	1943	12.9	1945	12.9	1944	12.9	4	1772	14.1	1767	14.2	1766	14.2
473.astar	4	1649	17.0	1651	17.0	1650	17.0	4	1602	17.5	1606	17.5	1604	17.5
483.xalancbmk	4	1130	24.4	1130	24.4	1130	24.4	4	1130	24.4	1130	24.4	1130	24.4

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run

 BIOS configuration:
  Power Regulator Disabled
  Adjacent Sector Prefetch Enabled
  Hardware Prefetcher Enabled
  Hyper-Threading Technology Enabled

icc

icpc

-xP -ipo -O3 -static -no-prec-div

403.gcc:

	icc
401.bzip2:	/opt/intel/cce/10.0.023/bin/icc -L/opt/intel/cce/10.0.023/lib -I/opt/intel/cce/10.0.023/include
456.hmmer:	/opt/intel/cce/10.0.023/bin/icc -L/opt/intel/cce/10.0.023/lib -I/opt/intel/cce/10.0.023/include

icpc

400.perlbench:	-prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -no-prec-div -ansi-alias -prefetch
401.bzip2:	-prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -no-prec-div
403.gcc:	basepeak = yes
429.mcf:	-xP -ipo -O3 -static -no-prec-div -prefetch -L/cpu2006.1.0/SmartHeap_8.1/lib -lsmartheap
445.gobmk:	-prof-gen(pass 1) -prof-use(pass 2) -xP -O2 -ipo -no-prec_div -ansi-alias
456.hmmer:	-prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -static -no-prec-div -unroll2 -ansi-alias
458.sjeng:	-prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -static -no-prec-div -unroll4
462.libquantum:	Same as 458.sjeng
464.h264ref:	Same as 456.hmmer

471.omnetpp:	-prof-gen(pass 1) -prof-use(pass 2) -xP -O3 -ipo -no-prec_div -ansi-alias -Wl,-z,muldefs -L/cpu2006.1.0/SmartHeap_8.1/lib -lsmartheap
473.astar:	Same as 471.omnetpp
483.xalancbmk:	basepeak = yes

403.gcc:

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/hp-ic10-flags.20090714.xml.
