SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

PowerEdge 860 (Intel Xeon X3220, 2.40 GHz)

CPU2006 license: 55 Test date: Sep-2007
Test sponsor: Dell Inc. Hardware Availability: Jan-2007
Tested by: Dell Inc. Software Availability: Nov-2007

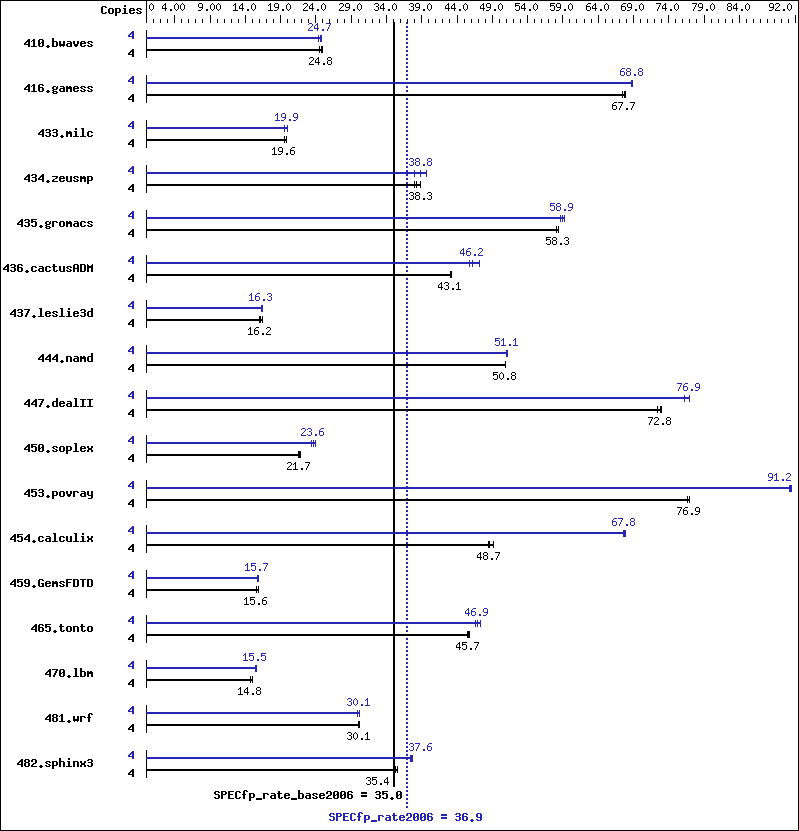

Benchmark results graph
Hardware
CPU Name: Intel Xeon X3220
CPU Characteristics: 1066MHz system bus
CPU MHz: 2400
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 8 GB (4x2 GB 667 Mhz DIMM)
Disk Subsystem: 1 x 73 GB SAS 10k RPM
Other Hardware: None
Software
Operating System: 64-Bit SUSE LINUX Enterprise Server 10
Compiler: Intel C++ and Fortran Compiler for Linux32 and
Linux64 version 10.1
Build 20070725
Auto Parallel: No
File System: ReiserFS
System State: Multi-user, run level 3
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap library V8.1

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 2188 24.8 2179 25.0 2222 24.5 4 2227 24.4 2199 24.7 2198 24.7
416.gamess 4 1157 67.7 1154 67.9 1161 67.5 4 1138 68.8 1139 68.8 1138 68.8
433.milc 4 1880 19.5 1851 19.8 1871 19.6 4 1875 19.6 1836 20.0 1842 19.9
434.zeusmp 4 957 38.0 938 38.8 951 38.3 4 958 38.0 937 38.8 919 39.6
435.gromacs 4 490 58.3 491 58.2 489 58.4 4 482 59.2 487 58.7 485 58.9
436.cactusADM 4 1106 43.2 1111 43.0 1109 43.1 4 1046 45.7 1034 46.2 1013 47.2
437.leslie3d 4 2324 16.2 2340 16.1 2289 16.4 4 2308 16.3 2312 16.3 2281 16.5
444.namd 4 631 50.8 631 50.8 630 50.9 4 628 51.0 628 51.1 627 51.1
447.dealII 4 631 72.5 627 72.9 628 72.8 4 601 76.2 595 76.9 595 76.9
450.soplex 4 1551 21.5 1533 21.8 1538 21.7 4 1426 23.4 1396 23.9 1413 23.6
453.povray 4 277 76.9 278 76.6 276 77.0 4 233 91.3 233 91.2 233 91.2
454.calculix 4 681 48.5 678 48.7 671 49.2 4 488 67.6 487 67.8 486 67.9
459.GemsFDTD 4 2683 15.8 2716 15.6 2718 15.6 4 2676 15.9 2700 15.7 2705 15.7
465.tonto 4 860 45.8 865 45.5 862 45.7 4 831 47.4 840 46.9 843 46.7
470.lbm 4 3665 15.0 3722 14.8 3722 14.8 4 3540 15.5 3574 15.4 3553 15.5
481.wrf 4 1480 30.2 1486 30.1 1482 30.1 4 1483 30.1 1494 29.9 1483 30.1
482.sphinx3 4 2222 35.1 2205 35.4 2191 35.6 4 2085 37.4 2072 37.6 2074 37.6

Compiler Invocation Notes

OMP_NUM_THREADS set to number of cores
KMP_STACK_SIZE set to 64M
KMP_AFFINITY set to physical,0

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
'/usr/bin/taskset' used to bind processes to CPUs

Platform Notes

BIOS Settings:
 Adjacent Cache Line Prefetch = Disabled (default Enabled)
 Hardware Prefetcher = Disabled (default Enabled)

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks (except as noted below):

 /home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/bin/icc   -L/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/lib   -I/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/include
433.milc:  icc

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/bin/icpc   -L/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/lib   -I/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/include

Fortran benchmarks (except as noted below):

 ifort
437.leslie3d:  /home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/bin/ifort   -L/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/lib   -I/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/include

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
470.lbm:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -scalar-rep-   -prefetch   -opt-malloc-options=3
482.sphinx3:  -fast   -unroll2

C++ benchmarks:

444.namd:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
447.dealII:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias   -scalar-rep-
450.soplex:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -opt-malloc-options=3
453.povray:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  -fast   -prefetch
416.gamess:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -ansi-alias   -scalar-rep-
434.zeusmp:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast
437.leslie3d:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -opt-malloc-options=3
459.GemsFDTD:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -prefetch
465.tonto:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -auto

Benchmarks using both Fortran and C:

435.gromacs:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -auto-ilp32
436.cactusADM:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -prefetch   -auto-ilp32
454.calculix:  -fast   -unroll-aggressive   -auto-ilp32
481.wrf:  -fast   -auto-ilp32

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10.1-FP-intel64-linux-flags.20090714.13.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10.1-FP-intel64-linux-flags.20090714.13.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 13:55:15 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 2 October 2007.
