CPU2006 license: | 3 | Test date: | Sep-2007 |
---|---|---|---|
Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Jun-2006 |
Tested by: | Hewlett-Packard Company | Software Availability: | Nov-2007 |
Hardware | |
---|---|
CPU Name: | Intel Xeon 5110 |
CPU Characteristics: | 1.6 GHz, 4 MB L2 shared, 1066 MHz system bus |
CPU MHz: | 1600 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
CPU(s) orderable: | 1 or 2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 4 MB I+D on chip per chip |
L3 Cache: | None |
Other Cache: | None |
Memory: | 8 GB (8x1 GB PC2-5300F CL5) |
Disk Subsystem: | 1x72 GB 10 K SAS |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SuSE Linux Enterprise Server 10 (x86_64) SP1 kernel 2.6.16.46-0.12-smp |
Compiler: | Intel C++ and Fortran Compiler for Linux32 and Linux64 version 10.1, Build 20070725 |
Auto Parallel: | No |
File System: | ext2 |
System State: | Multi-user run level 3 |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | binutils-2.17.50 |

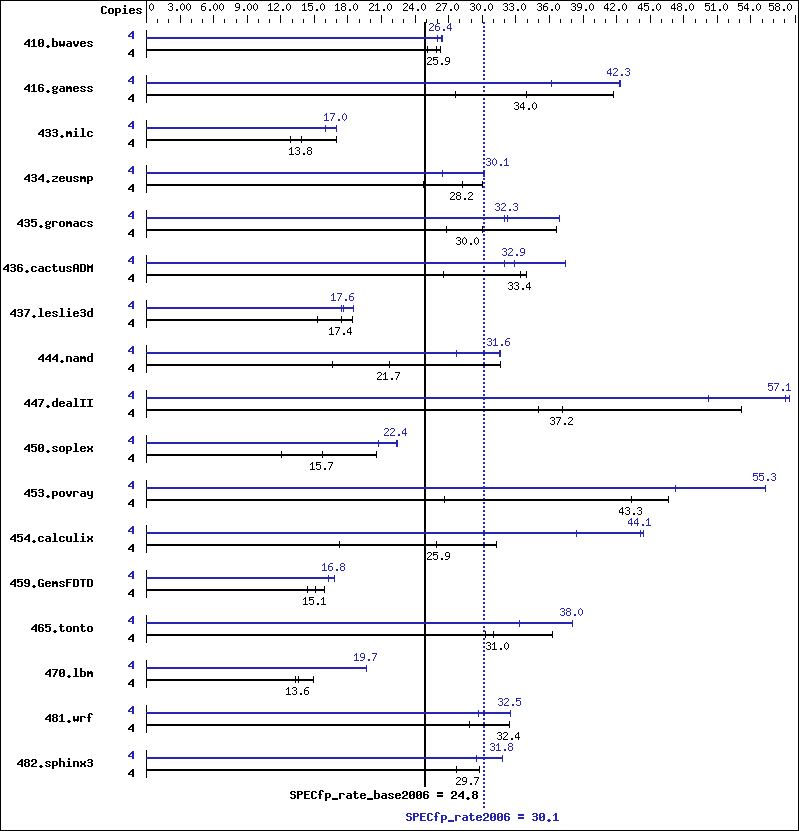

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 4 | 2067 | 26.3 | 2166 | 25.1 | 2096 | 25.9 | 4 | 2060 | 26.4 | 2092 | 26.0 | 2059 | 26.4 |
416.gamess | 4 | 2836 | 27.6 | 2306 | 34.0 | 1877 | 41.7 | 4 | 1851 | 42.3 | 2167 | 36.1 | 1853 | 42.3 |
433.milc | 4 | 2846 | 12.9 | 2655 | 13.8 | 2158 | 17.0 | 4 | 2163 | 17.0 | 2300 | 16.0 | 2162 | 17.0 |
434.zeusmp | 4 | 1291 | 28.2 | 1473 | 24.7 | 1212 | 30.0 | 4 | 1208 | 30.1 | 1378 | 26.4 | 1207 | 30.2 |
435.gromacs | 4 | 1066 | 26.8 | 953 | 30.0 | 780 | 36.6 | 4 | 885 | 32.3 | 894 | 32.0 | 774 | 36.9 |
436.cactusADM | 4 | 1430 | 33.4 | 1799 | 26.6 | 1406 | 34.0 | 4 | 1496 | 31.9 | 1454 | 32.9 | 1276 | 37.5 |
437.leslie3d | 4 | 2163 | 17.4 | 2455 | 15.3 | 2046 | 18.4 | 4 | 2154 | 17.5 | 2131 | 17.6 | 2036 | 18.5 |
444.namd | 4 | 1476 | 21.7 | 1929 | 16.6 | 1015 | 31.6 | 4 | 1158 | 27.7 | 1014 | 31.6 | 1016 | 31.6 |
447.dealII | 4 | 1231 | 37.2 | 1307 | 35.0 | 861 | 53.1 | 4 | 912 | 50.2 | 796 | 57.5 | 801 | 57.1 |
450.soplex | 4 | 2122 | 15.7 | 2775 | 12.0 | 1622 | 20.6 | 4 | 1609 | 20.7 | 1491 | 22.4 | 1488 | 22.4 |
453.povray | 4 | 491 | 43.3 | 800 | 26.6 | 456 | 46.7 | 4 | 450 | 47.3 | 385 | 55.3 | 385 | 55.3 |
454.calculix | 4 | 1275 | 25.9 | 1912 | 17.3 | 1054 | 31.3 | 4 | 859 | 38.4 | 744 | 44.4 | 748 | 44.1 |
459.GemsFDTD | 4 | 2806 | 15.1 | 2955 | 14.4 | 2665 | 15.9 | 4 | 2603 | 16.3 | 2525 | 16.8 | 2528 | 16.8 |
465.tonto | 4 | 1300 | 30.3 | 1269 | 31.0 | 1084 | 36.3 | 4 | 1181 | 33.3 | 1034 | 38.1 | 1035 | 38.0 |
470.lbm | 4 | 4130 | 13.3 | 4039 | 13.6 | 3694 | 14.9 | 4 | 2794 | 19.7 | 2796 | 19.7 | 2796 | 19.7 |
481.wrf | 4 | 1549 | 28.8 | 1380 | 32.4 | 1377 | 32.5 | 4 | 1507 | 29.6 | 1376 | 32.5 | 1376 | 32.5 |
482.sphinx3 | 4 | 2819 | 27.7 | 2618 | 29.8 | 2623 | 29.7 | 4 | 2646 | 29.5 | 2449 | 31.8 | 2454 | 31.8 |
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run '/usr/bin/taskset' used to bind processes to CPUs KMP_AFFINITY set to physical,0 KMP_STACKSIZE set to 200M
BIOS configuration: Power Regulator set to Static High Performance Mode
icc |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-fast |
-fast |
-fast |
-fast |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -prof-gen(pass 1) -prof-use(pass 2) -fast -fno-alias -auto-ilp32 |
470.lbm: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -scalar-rep- -prefetch -opt-malloc-options=3 |
482.sphinx3: | -fast -unroll2 |
444.namd: | -prof-gen(pass 1) -prof-use(pass 2) -fast -fno-alias -auto-ilp32 |
447.dealII: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias -scalar-rep- |
450.soplex: | -prof-gen(pass 1) -prof-use(pass 2) -fast -opt-malloc-options=3 |
453.povray: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -ansi-alias |
410.bwaves: | -fast -prefetch |
416.gamess: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | -prof-gen(pass 1) -prof-use(pass 2) -fast |
437.leslie3d: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -opt-malloc-options=3 |
459.GemsFDTD: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -Ob0 -prefetch |
465.tonto: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -auto |
435.gromacs: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -auto-ilp32 |
436.cactusADM: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -prefetch -auto-ilp32 |
454.calculix: | -fast -unroll-aggressive -auto-ilp32 |
481.wrf: | -fast -auto-ilp32 |
