SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

HP Integrity rx2660 (1.66GHz/18MB Dual-Core Intel
Itanium)

CPU2006 license: 03 Test date: Sep-2007
Test sponsor: Hewlett-Packard Company Hardware Availability: Nov-2007
Tested by: Hewlett-Packard Company Software Availability: Sep-2007

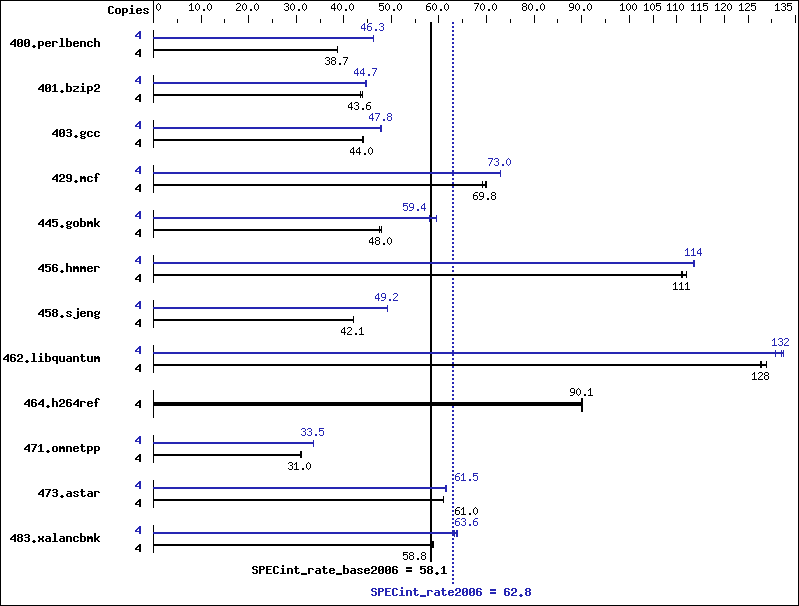

Benchmark results graph
Hardware
CPU Name: Dual-Core Intel Itanium 9140M
CPU Characteristics: 1.66GHz/18MB, 667MHz FSB
CPU MHz: 1666
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip, 2 threads/core
CPU(s) orderable: 1-2 chips
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 1 MB I + 256 KB D on chip per core
L3 Cache: 9 MB I+D on chip per core
Other Cache: None
Memory: 16 GB (8x2GB DIMMs)
Disk Subsystem: 73GB 10K RPM SAS
Other Hardware: None
Software
Operating System: HPUX11i-MCOE B.11.31 (LR)
Compiler: HP C/aC++ Developer's Bundle C.11.31.03
HP Fortran90 Compiler B.11.31.03
Auto Parallel: No
File System: vxfs
System State: Multi-user
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: MicroQuill Smartheap 8.1

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 4 1008 38.8 1009 38.7 1013 38.6 4 844 46.3 843 46.3 846 46.2
401.bzip2 4 877 44.0 887 43.5 885 43.6 4 865 44.6 864 44.7 862 44.8
403.gcc 4 733 43.9 732 44.0 730 44.1 4 675 47.7 672 47.9 673 47.8
429.mcf 4 527 69.2 523 69.8 521 70.1 4 501 72.8 500 73.0 499 73.0
445.gobmk 4 874 48.0 882 47.6 875 48.0 4 724 58.0 707 59.4 705 59.5
456.hmmer 4 336 111   333 112   336 111   4 328 114   329 114   328 114
458.sjeng 4 1149 42.1 1149 42.1 1150 42.1 4 985 49.1 983 49.2 984 49.2
462.libquantum 4 650 128   649 128   643 129   4 626 132   627 132   633 131
464.h264ref 4 982 90.1 983 90.1 982 90.1 4 982 90.1 983 90.1 982 90.1
471.omnetpp 4 806 31.0 805 31.1 809 30.9 4 745 33.5 744 33.6 745 33.5
473.astar 4 460 61.0 460 61.0 461 61.0 4 457 61.4 457 61.5 457 61.5
483.xalancbmk 4 470 58.7 470 58.8 470 58.8 4 436 63.3 432 63.8 434 63.6

Operating System Notes

   The system had the September 2007 HP-UX 11i v3 Mission Critical
   Operating Environment (MCOE) and compilers installed, along with
   the following patches:

   PHSS_36349  linker + fdp cumulative patch
   PHSS_36351  Math Library Cumulative Patch
   PHSS_36352  Integrity Unwind Library
   PHSS_36350  aC++ Runtime (A.06.15)
   PHSS_36354  assembler patch

   The following kernel tunables were set, in addition to the defaults
   set by the Mission Critical OE:

   maxdsiz=3221225472
   maxssiz=401604608
   maxrsessiz=41943040

Base Compiler Invocation

C benchmarks:

 /opt/ansic/bin/cc -Ae

C++ benchmarks:

 /opt/aCC/bin/aCC -Aa

Base Portability Flags

400.perlbench:  -DSPEC_CPU_HPUX_IA64
403.gcc:  -DSPEC_CPU_HPUX
462.libquantum:  -DSPEC_CPU_HPUX
483.xalancbmk:  -DSPEC_CPU_HPUX_IA64

Base Optimization Flags

C benchmarks:

 +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   -Wl,-N

C++ benchmarks:

 +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   -Wl,-N   /opt/smartheap/SmartHeap_8.1/lib/libsmartheapC.a /opt/smartheap/SmartHeap_8.1/lib/libsmartheap.a

Peak Compiler Invocation

C benchmarks:

 /opt/ansic/bin/cc -Ae

C++ benchmarks:

 /opt/aCC/bin/aCC -Aa

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_HPUX_IA64
403.gcc:  -DSPEC_CPU_HPUX
462.libquantum:  -DSPEC_CPU_HPUX
483.xalancbmk:  -DSPEC_CPU_HPUX_IA64

Peak Optimization Flags

C benchmarks:

400.perlbench:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   -Wl,-N
401.bzip2:  Same as 400.perlbench
403.gcc:  Same as 400.perlbench
429.mcf:  Same as 400.perlbench
445.gobmk:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Odataprefetch=direct
456.hmmer:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M
458.sjeng:  Same as 445.gobmk
462.libquantum:  Same as 456.hmmer
464.h264ref:  basepeak = yes

C++ benchmarks:

471.omnetpp:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   /opt/smartheap/SmartHeap_8.1/lib/libsmartheapC.a /opt/smartheap/SmartHeap_8.1/lib/libsmartheap.a
473.astar:  +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Onoparmsoverlap   /opt/smartheap/SmartHeap_8.1/lib/libsmartheapC.a /opt/smartheap/SmartHeap_8.1/lib/libsmartheap.a
483.xalancbmk:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Onoparmsoverlap   /opt/smartheap/SmartHeap_8.1/lib/libsmartheapC.a /opt/smartheap/SmartHeap_8.1/lib/libsmartheap.a

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.07.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.07.xml.
