SPEC® CFP2006 Result

Hewlett-Packard Company

HP Integrity rx3600 (1.66GHz/18MB Dual-Core Intel
Itanium)

SPECfp®2006 = 20.2

SPECfp_base2006 = 19.6

CPU2006 license:	03	Test date:	Sep-2007
Test sponsor:	Hewlett-Packard Company	Hardware Availability:	Nov-2007
Tested by:	Hewlett-Packard Company	Software Availability:	Sep-2007

Hardware
CPU Name:	Dual-Core Intel Itanium 9140M
CPU Characteristics:	1.66GHz/18MB, 667MHz FSB
CPU MHz:	1666
FPU:	Integrated
CPU(s) enabled:	2 cores, 1 chip, 2 cores/chip
CPU(s) orderable:	1-2 chips
Primary Cache:	16 KB I + 16 KB D on chip per core
Secondary Cache:	1 MB I + 256 KB D on chip per core
L3 Cache:	9 MB I+D on chip per core
Other Cache:	None
Memory:	16 GB (8x2GB DIMMs, AD124A 8-DIMM memory carrier)
Disk Subsystem:	73GB 10K RPM SAS
Other Hardware:	None

Software
Operating System:	HPUX11i-MCOE B.11.31 (LR)
Compiler:	HP C/aC++ Developer's Bundle C.11.31.03 HP Fortran90 Compiler B.11.31.03
Auto Parallel:	No
File System:	vxfs
System State:	Multi-user
Base Pointers:	32-bit
Peak Pointers:	32-bit
Other Software:	MicroQuill Smartheap 8.1

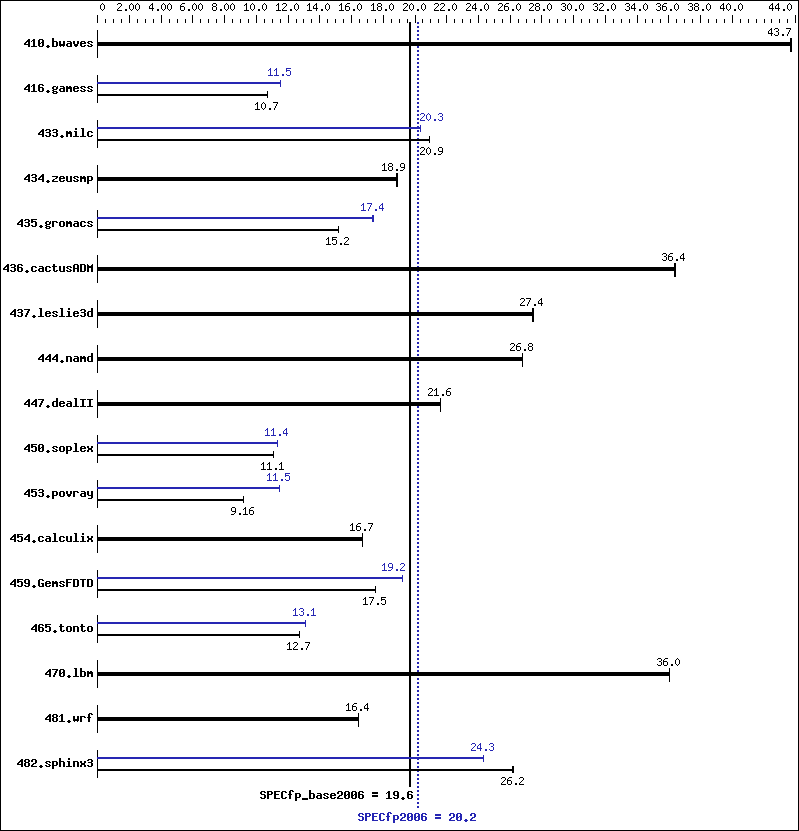

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	311	43.7	311	43.7	311	43.7	311	43.7	311	43.7	311	43.7
416.gamess	1826	10.7	1826	10.7	1826	10.7	1700	11.5	1701	11.5	1701	11.5
433.milc	439	20.9	439	20.9	439	20.9	451	20.3	451	20.4	451	20.3
434.zeusmp	482	18.9	482	18.9	483	18.9	482	18.9	482	18.9	483	18.9
435.gromacs	470	15.2	470	15.2	470	15.2	411	17.4	412	17.4	411	17.4
436.cactusADM	329	36.3	328	36.4	329	36.4	329	36.3	328	36.4	329	36.4
437.leslie3d	343	27.4	342	27.5	343	27.4	343	27.4	342	27.5	343	27.4
444.namd	300	26.8	299	26.8	300	26.8	300	26.8	299	26.8	300	26.8
447.dealII	530	21.6	530	21.6	530	21.6	530	21.6	530	21.6	530	21.6
450.soplex	752	11.1	752	11.1	752	11.1	734	11.4	734	11.4	735	11.4
453.povray	581	9.16	581	9.16	581	9.16	464	11.5	464	11.5	464	11.5
454.calculix	495	16.7	495	16.7	495	16.7	495	16.7	495	16.7	495	16.7
459.GemsFDTD	605	17.5	605	17.5	606	17.5	553	19.2	553	19.2	553	19.2
465.tonto	773	12.7	772	12.7	773	12.7	752	13.1	752	13.1	752	13.1
470.lbm	381	36.1	381	36.0	381	36.0	381	36.1	381	36.0	381	36.0
481.wrf	681	16.4	681	16.4	681	16.4	681	16.4	681	16.4	681	16.4
482.sphinx3	745	26.2	744	26.2	744	26.2	801	24.3	801	24.3	801	24.3

Operating System Notes

   The system had the September 2007 HP-UX 11i v3 Mission Critical
   Operating Environment (MCOE) and compilers installed, along with
   the following patches:

   PHSS_36349  linker + fdp cumulative patch
   PHSS_36351  Math Library Cumulative Patch
   PHSS_36352  Integrity Unwind Library
   PHSS_36350  aC++ Runtime (A.06.15)
   PHSS_36354  assembler patch

   The following kernel tunables were set, in addition to the defaults
   set by the Mission Critical OE:

   maxdsiz=3221225472
   maxssiz=401604608
   maxrsessiz=41943040

Platform Notes

 The "cpuconfig" EFI command was used prior to booting
   to deconfigure processors.

 Although two cores were enabled during testing,
   the SPEC CPU2006 benchmarks used only one core.

 The setboot command was used to disable hyperthreading.

Base Compiler Invocation

Base Portability Flags

453.povray:	-DSPEC_CPU_NEED_INVHYP
481.wrf:	-DNOUNDERSCORE +noppu

Peak Compiler Invocation

C benchmarks:

/opt/ansic/bin/cc -Ae

C++ benchmarks:

/opt/aCC/bin/aCC -Aa

Fortran benchmarks:

/opt/fortran90/bin/f90

Benchmarks using both Fortran and C:

/opt/ansic/bin/cc -Ae /opt/fortran90/bin/f90

Peak Portability Flags

453.povray:	-DSPEC_CPU_NEED_INVHYP
481.wrf:	-DNOUNDERSCORE +noppu

Peak Optimization Flags

C benchmarks:

433.milc:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Onoparmsoverlap -Wl,-N
470.lbm:	basepeak = yes
482.sphinx3:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Onoparmsoverlap

C++ benchmarks:

444.namd:	basepeak = yes
447.dealII:	basepeak = yes
450.soplex:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Onoparmsoverlap -Wl,-N
453.povray:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M

Fortran benchmarks:

410.bwaves:	basepeak = yes
416.gamess:	+Ofaster -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Odataprefetch=direct -Wl,-N
434.zeusmp:	basepeak = yes
437.leslie3d:	basepeak = yes
459.GemsFDTD:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Odataprefetch=direct -Wl,-N
465.tonto:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Odataprefetch=direct

Benchmarks using both Fortran and C:

435.gromacs:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Onoparmsoverlap
436.cactusADM:	basepeak = yes
454.calculix:	basepeak = yes
481.wrf:	basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.07.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.07.xml.
