CPU2006 license: | 97 | Test date: | Oct-2007 |
---|---|---|---|
Test sponsor: | Acer Incorporated | Hardware Availability: | Nov-2007 |
Tested by: | Acer Incorporated | Software Availability: | Nov-2007 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E7310 |
CPU Characteristics: | 1066MHz system bus |
CPU MHz: | 1600 |
FPU: | Integrated |
CPU(s) enabled: | 16 cores, 4 chips, 4 cores/chip |
CPU(s) orderable: | 1, 2, 4 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 4 MB I+D on chip per chip, 2 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 16 GB (16 x 1048MB ECC FB-DIMM DDR2-667 CL5-5-5) |
Disk Subsystem: | 1 x 73GB 10000PRM SAS HDD |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SuSE Linux Enterprise Server 10 SP1 EM64T (kernel 2.6.16.46-0.12-smp) |
Compiler: | Intel C++ and Fortran Compiler for Linux32 and Linux64 version 10.1 Build 20070725 |
Auto Parallel: | Yes |
File System: | ReiserFS |
System State: | Multi-user, level 3 |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | MicroQuill SmartHeap Library 8.1 |

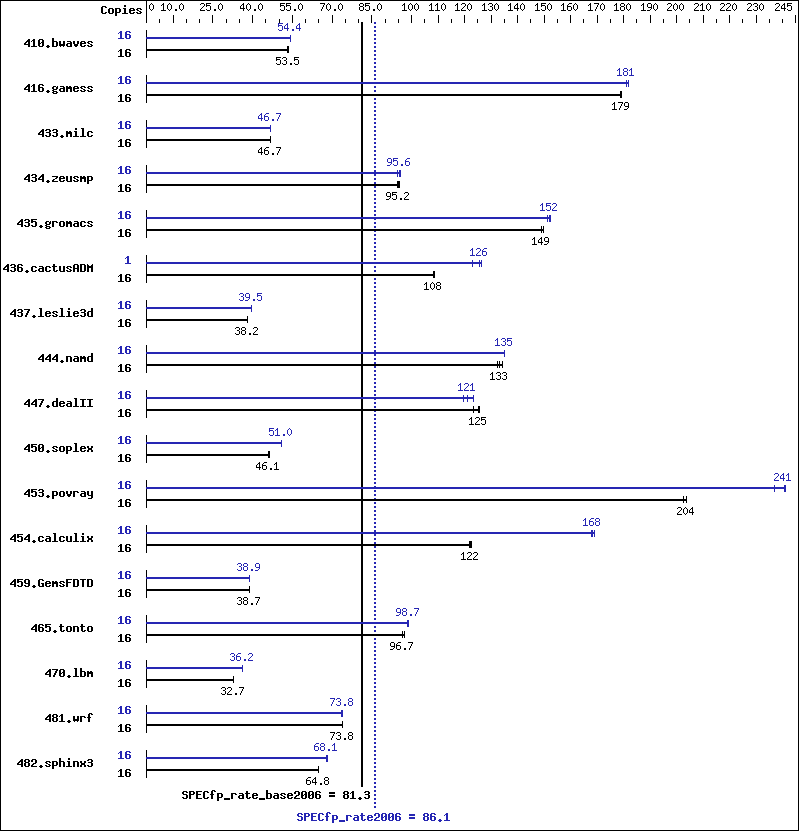

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 16 | 4079 | 53.3 | 4065 | 53.5 | 4063 | 53.5 | 16 | 4000 | 54.4 | 3995 | 54.4 | 3998 | 54.4 |
416.gamess | 16 | 1746 | 179 | 1748 | 179 | 1753 | 179 | 16 | 1729 | 181 | 1728 | 181 | 1722 | 182 |
433.milc | 16 | 3140 | 46.8 | 3143 | 46.7 | 3148 | 46.7 | 16 | 3145 | 46.7 | 3146 | 46.7 | 3146 | 46.7 |
434.zeusmp | 16 | 1529 | 95.2 | 1525 | 95.5 | 1538 | 94.7 | 16 | 1537 | 94.7 | 1521 | 95.7 | 1524 | 95.6 |
435.gromacs | 16 | 767 | 149 | 766 | 149 | 762 | 150 | 16 | 749 | 152 | 752 | 152 | 755 | 151 |
436.cactusADM | 16 | 1764 | 108 | 1768 | 108 | 1758 | 109 | 1 | 97.2 | 123 | 95.1 | 126 | 94.5 | 126 |
437.leslie3d | 16 | 3932 | 38.2 | 3932 | 38.2 | 3930 | 38.3 | 16 | 3808 | 39.5 | 3807 | 39.5 | 3809 | 39.5 |
444.namd | 16 | 969 | 132 | 962 | 133 | 954 | 135 | 16 | 951 | 135 | 951 | 135 | 951 | 135 |
447.dealII | 16 | 1483 | 123 | 1463 | 125 | 1455 | 126 | 16 | 1529 | 120 | 1509 | 121 | 1481 | 124 |
450.soplex | 16 | 2883 | 46.3 | 2897 | 46.1 | 2898 | 46.0 | 16 | 2616 | 51.0 | 2620 | 50.9 | 2616 | 51.0 |
453.povray | 16 | 420 | 203 | 417 | 204 | 417 | 204 | 16 | 354 | 241 | 359 | 237 | 353 | 241 |
454.calculix | 16 | 1082 | 122 | 1077 | 123 | 1078 | 122 | 16 | 785 | 168 | 781 | 169 | 786 | 168 |
459.GemsFDTD | 16 | 4383 | 38.7 | 4386 | 38.7 | 4388 | 38.7 | 16 | 4358 | 39.0 | 4361 | 38.9 | 4362 | 38.9 |
465.tonto | 16 | 1628 | 96.7 | 1628 | 96.7 | 1619 | 97.2 | 16 | 1593 | 98.9 | 1596 | 98.7 | 1594 | 98.7 |
470.lbm | 16 | 6715 | 32.7 | 6716 | 32.7 | 6716 | 32.7 | 16 | 6071 | 36.2 | 6071 | 36.2 | 6070 | 36.2 |
481.wrf | 16 | 2422 | 73.8 | 2421 | 73.8 | 2421 | 73.8 | 16 | 2421 | 73.8 | 2418 | 73.9 | 2431 | 73.5 |
482.sphinx3 | 16 | 4810 | 64.8 | 4810 | 64.8 | 4813 | 64.8 | 16 | 4577 | 68.1 | 4581 | 68.1 | 4580 | 68.1 |
BIOS Settings Hardware Prefetcher set to OFF Adjacent Cache Line Prefetch set to OFF Optimization for high-frequency FSB applications set to OFF All results used taskset to bind processes to cores.
icc |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-fast |
-fast |
-fast |
-fast |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -prof-gen(pass 1) -prof-use(pass 2) -fast -fno-alias -auto-ilp32 |
470.lbm: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -scalar-rep- -prefetch -opt-malloc-options=3 |
482.sphinx3: | -fast -unroll2 |
444.namd: | -prof-gen(pass 1) -prof-use(pass 2) -fast -fno-alias -auto-ilp32 |
447.dealII: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias -scalar-rep- |
450.soplex: | -prof-gen(pass 1) -prof-use(pass 2) -fast -opt-malloc-options=3 |
453.povray: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -ansi-alias |
410.bwaves: | -fast -prefetch |
416.gamess: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | -prof-gen(pass 1) -prof-use(pass 2) -fast |
437.leslie3d: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -opt-malloc-options=3 |
459.GemsFDTD: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -Ob0 -prefetch |
465.tonto: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -auto |
435.gromacs: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -auto-ilp32 |
436.cactusADM: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -prefetch -parallel -auto-ilp32 |
454.calculix: | -fast -unroll-aggressive -auto-ilp32 |
481.wrf: | -fast -auto-ilp32 |
