SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

SGI

SGI Altix 4700 Density System (Itanium Processor
9150M 1.66GHz/24M)

CPU2006 license: 4 Test date: Oct-2007
Test sponsor: SGI Hardware Availability: Nov-2007
Tested by: SGI Software Availability: Nov-2007

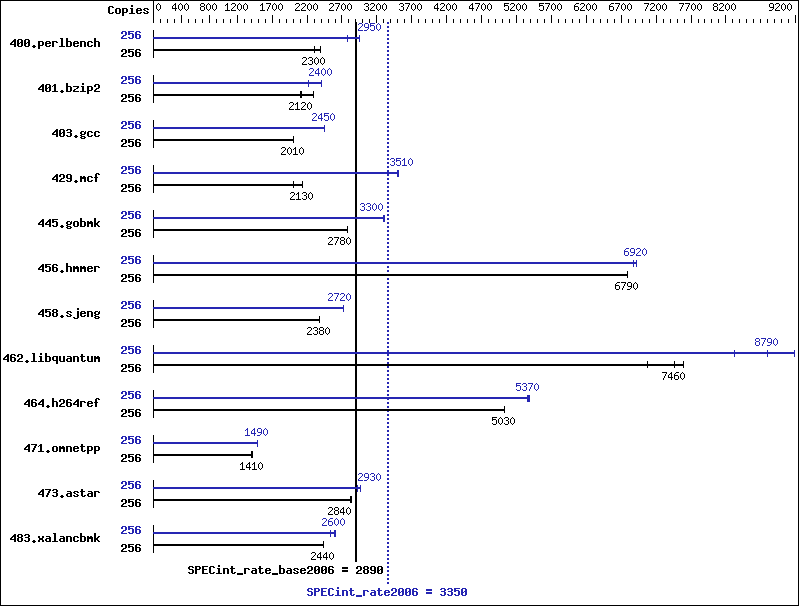

Benchmark results graph
Hardware
CPU Name: Dual-Core Intel Itanium 9150M
CPU Characteristics: 667MHz FSB
CPU MHz: 1669
FPU: Integrated
CPU(s) enabled: 256 cores, 128 chips, 2 cores/chip
CPU(s) orderable: 4 to 256 blades with 2 chips per blade
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 1 MB I + 256 KB D on chip per core
L3 Cache: 12 MB I+D on chip per core
Other Cache: None
Memory: 512 GB (8*1GB DDR2-400 DIMMS per 4 core module)
Disk Subsystem: 2.4 TB RAID 4+1
32 x 73 GB SCSI (Seagate Cheetah 15k rpm)
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (ia64) SP1,
Kernel 2.6.16.53-0.16-default
Compiler: Intel C++ Compiler for Linux 10.1 (Build
20071005)
MicroQuill SmartHeap Library 8
(www.microquill.com)
Auto Parallel: No
File System: xfs
System State: Multi-user
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: SGI ProPack 5 Service Pack 3

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 256 1045 2390 1087 2300 1087 2300 256 900 2780 846 2960 847 2950
401.bzip2 256 1078 2290 1163 2120 1173 2110 256 1111 2220 1025 2410 1029 2400
403.gcc 256 1028 2010 1027 2010 1026 2010 256 840 2450 841 2450 839 2460
429.mcf 256 1166 2000 1094 2130 1092 2140 256 665 3510 668 3500 664 3510
445.gobmk 256 967 2780 966 2780 966 2780 256 814 3300 813 3300 813 3300
456.hmmer 256 352 6790 352 6790 352 6780 256 347 6880 345 6920 345 6920
458.sjeng 256 1306 2370 1303 2380 1304 2380 256 1137 2720 1137 2720 1137 2720
462.libquantum 256 750 7070 711 7460 698 7590 256 638 8320 578 9180 603 8790
464.h264ref 256 1126 5030 1126 5030 1126 5030 256 1058 5350 1053 5380 1055 5370
471.omnetpp 256 1136 1410 1132 1410 1128 1420 256 1076 1490 1076 1490 1076 1490
473.astar 256 634 2840 636 2830 632 2840 256 607 2960 615 2920 614 2930
483.xalancbmk 256 724 2440 727 2430 725 2440 256 696 2540 679 2600 680 2600

General Notes

Processes were bound to CPUs using dplace.
limit stacksize unlimited

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_IA64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
471.omnetpp:  -DSPEC_CPU_LP64
473.astar:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -no-opt-prefetch-initial-values   -ansi-alias

C++ benchmarks:

 -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -no-opt-prefetch-initial-values   -ansi-alias   -Wl,-z,muldefs   libsmartheapC64.a   libsmartheap64.a

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -inline-factor=150   -ansi-alias
401.bzip2:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -fno-alias   -auto-ilp32   -ansi-alias
403.gcc:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -unroll-aggressive   -auto-ilp32   -no-opt-prefetch-initial-values   -ansi-alias
429.mcf:  -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -auto-ilp32   -ansi-alias
445.gobmk:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -auto-ilp32   -no-opt-prefetch-initial-values   -ansi-alias
456.hmmer:  -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -auto-ilp32   -no-opt-prefetch-initial-values   -ansi-alias
458.sjeng:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -unroll-aggressive   -ansi-alias
462.libquantum:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -unroll-aggressive   -opt-mod-versioning   -ansi-alias
464.h264ref:  -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -auto-ilp32   -unroll-aggressive   -opt-mod-versioning   -no-prefetch   -fno-alias   -inline-factor=150   -ansi-alias

C++ benchmarks:

471.omnetpp:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -fno-alias   -inline-factor=150   -ansi-alias   -Wl,-z,muldefs   libsmartheapC64.a   libsmartheap64.a
473.astar:  -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -no-prefetch   -inline-factor=150   -ansi-alias   -Wl,-z,muldefs   libsmartheapC64.a   libsmartheap64.a
483.xalancbmk:  -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -unroll-aggressive   -no-prefetch   -ansi-alias   -Wl,-z,muldefs   libsmartheapC64.a   libsmartheap64.a

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic91-ipf.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic91-ipf.xml.
