SPEC® CFP2006 Result

Copyright 2006-2016 Standard Performance Evaluation Corporation

Supermicro

Motherboard H8DMU+

CPU2006 license: 001176 Test date: Oct-2007
Test sponsor: Supermicro Hardware Availability: Jul-2007
Tested by: Supermicro Software Availability: Feb-2007

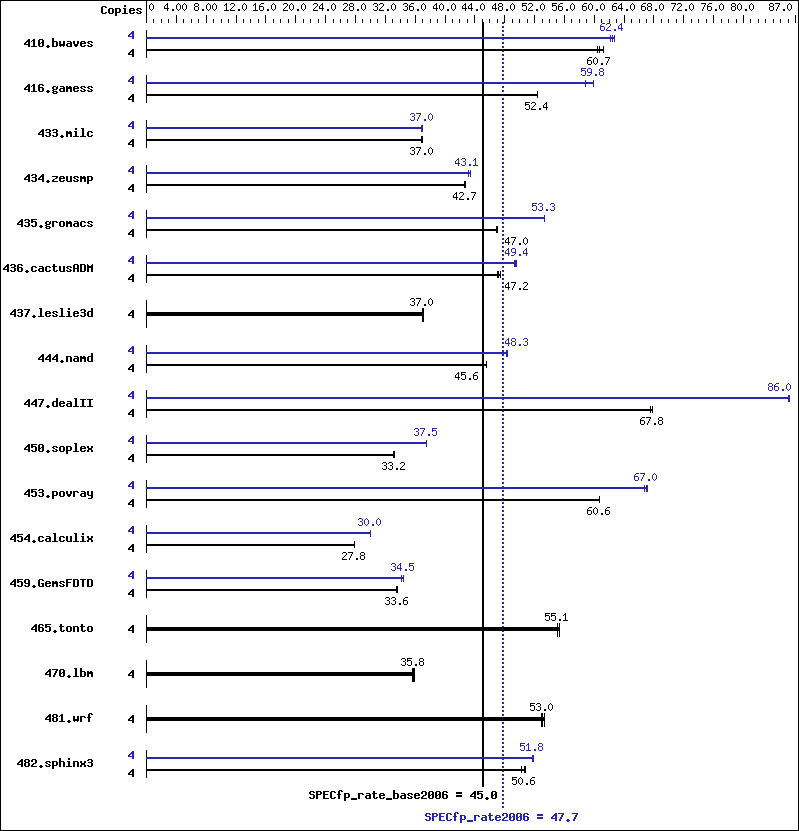

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2218
CPU Characteristics:
CPU MHz: 2600
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2GB, DDR2-667 CL5 ECC Reg Dual Rank)
Disk Subsystem: SATA, 250 GB
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (x86_64) SP1,
kernel 2.6.16.46-0.12-default
Compiler: QLogic PathScale
Compiler Suite, Release 3.0
Auto Parallel: No
File System: ReiserFS
System State: Multi-user, run level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 889 61.2 896 60.7 900 60.4 4 874 62.2 868 62.7 871 62.4
416.gamess 4 1494 52.4 1495 52.4 1494 52.4 4 1309 59.8 1331 58.8 1308 59.9
433.milc 4 995 36.9 991 37.0 993 37.0 4 995 36.9 991 37.0 993 37.0
434.zeusmp 4 852 42.7 854 42.6 853 42.7 4 845 43.1 838 43.4 845 43.1
435.gromacs 4 608 47.0 608 47.0 608 47.0 4 536 53.3 536 53.3 535 53.4
436.cactusADM 4 1015 47.1 1006 47.5 1012 47.2 4 967 49.4 969 49.3 964 49.6
437.leslie3d 4 1013 37.1 1018 36.9 1017 37.0 4 1013 37.1 1018 36.9 1017 37.0
444.namd 4 704 45.6 704 45.6 705 45.5 4 664 48.3 665 48.2 664 48.3
447.dealII 4 675 67.8 677 67.5 675 67.8 4 531 86.2 532 86.0 532 86.0
450.soplex 4 1007 33.1 1005 33.2 1003 33.2 4 889 37.5 889 37.5 888 37.6
453.povray 4 351 60.6 351 60.7 351 60.6 4 317 67.2 317 67.0 319 66.7
454.calculix 4 1186 27.8 1186 27.8 1186 27.8 4 1098 30.1 1098 30.0 1098 30.0
459.GemsFDTD 4 1268 33.5 1260 33.7 1263 33.6 4 1231 34.5 1242 34.2 1231 34.5
465.tonto 4 711 55.4 714 55.1 715 55.0 4 711 55.4 714 55.1 715 55.0
470.lbm 4 1542 35.6 1534 35.8 1530 35.9 4 1542 35.6 1534 35.8 1530 35.9
481.wrf 4 842 53.0 838 53.3 844 53.0 4 842 53.0 838 53.3 844 53.0
482.sphinx3 4 1541 50.6 1536 50.7 1550 50.3 4 1508 51.7 1505 51.8 1505 51.8

General Notes

 taskset utility used to bind CPU(s) to processes
 All memory slots filled on all chips
 Tested systems can be used with CSE-825TQ-R700LPV case,
 To ensure system stability, a 550W (minimum) ATX power supply
 [4-pin (+12V), 8-pin (+12V) and 24-pin are required]
 Product description located as of
 http://www.supermicro.com/Aplus/motherboard/Opteron2000/MCP55/H8DMU+.cfm

Base Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Fortran benchmarks:

 pathf95

Benchmarks using both Fortran and C:

 pathcc   pathf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -Ofast

C++ benchmarks:

 -Ofast

Fortran benchmarks:

 -Ofast   -OPT:malloc_alg=1

Benchmarks using both Fortran and C:

 -Ofast   -OPT:malloc_alg=1

Peak Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Fortran benchmarks:

 pathf95

Benchmarks using both Fortran and C:

 pathcc   pathf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  -Ofast   -CG:cflow=off   -LNO:prefetch=1   -OPT:malloc_alg=1
470.lbm:  basepeak = yes
482.sphinx3:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:Ofast   -WOPT:aggstr=0   -m32

C++ benchmarks:

444.namd:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -fno-exceptions
447.dealII:  -Ofast   -static   -INLINE:aggressive=on   -OPT:malloc_alg=1   -m32   -fno-exceptions
450.soplex:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -m32   -O3   -OPT:IEEE_arith=3   -CG:load_exe=0   -CG:movnti=1   -LNO:minvariant=off   -LNO:prefetch=1   -fno-exceptions
453.povray:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -fno-fast-math

Fortran benchmarks:

410.bwaves:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:Ofast   -OPT:IEEE_arith=3   -LNO:blocking=off   -LNO:ignore_feedback=off
416.gamess:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O2   -OPT:Ofast   -OPT:ro=3   -OPT:unroll_size=256
434.zeusmp:  -Ofast   -CG:local_fwd_sched=on   -LNO:blocking=off   -LNO:interchange=off   -LNO:fu=10   -LNO:full_unroll_outer=on
437.leslie3d:  basepeak = yes
459.GemsFDTD:  -Ofast   -LNO:fission=2   -LNO:prefetch=0
465.tonto:  basepeak = yes

Benchmarks using both Fortran and C:

435.gromacs:  -O3   -OPT:rsqrt=2   -OPT:ro=3
436.cactusADM:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:prefetch=3   -LNO:prefetch_ahead=5   -LNO:ou_prod_max=10   -LNO:full_unroll=5   -ipa
454.calculix:  -Ofast   -LNO:simd=0   -WOPT:mem_opnds=on
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.06.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.06.xml.
