SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

NEC Corporation

Express5800/120Li
(Intel Xeon processor 5130)

SPECint®2006 = 15.3

CPU2006 license: 9006 Test date: Oct-2007
Test sponsor: NEC Corporation Hardware Availability: May-2007
Tested by: NEC Corporation Software Availability: Jun-2007

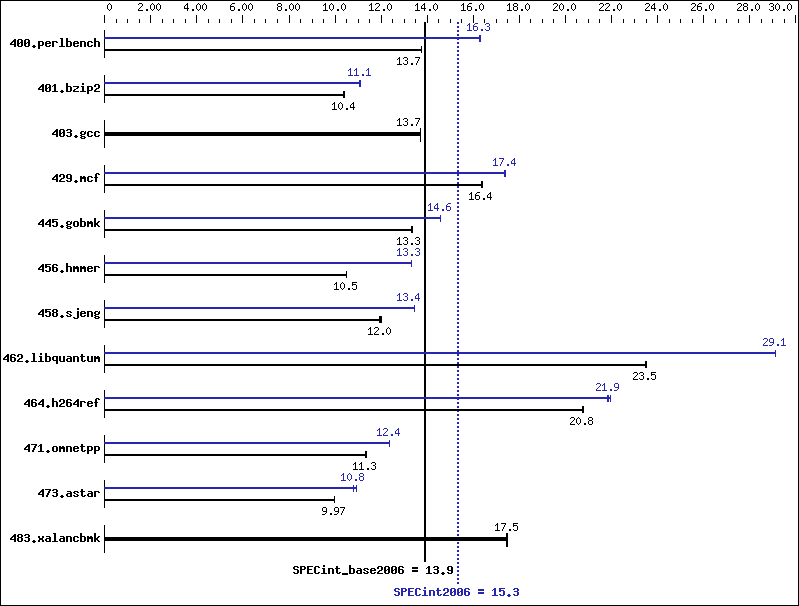

Benchmark results graph
Hardware
CPU Name: Intel Xeon 5130
CPU Characteristics: 2.00 GHz, 4 MB L2, 1333 MHz bus
CPU MHz: 2000
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 8 GB (8x1 GB PC2-5300F, 2 rank, CL5-5-5, ECC)
Disk Subsystem: 1x73.2 GB SAS, 15000RPM
Other Hardware: None
Software
Operating System: 64-Bit SUSE LINUX Enterprise Server 10, Kernel
2.6.16.21-0.8-smp for x86_64
Compiler: Intel C++ Compiler for IA32/EM64T application,
Version 10.0 - Build 20070426 Package ID:
l_cc_p_10.0.023
Auto Parallel: No
File System: ext2
System State: Multiuser, Runlevel 3
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap library 8.1
binutils-2.17.tar.gz, Version 2.17

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 711 13.7  711 13.7 710 13.8  600 16.3 600 16.3 601 16.3
401.bzip2 931 10.4  927 10.4 928 10.4  870 11.1 868 11.1 871 11.1
403.gcc 588 13.7  587 13.7 587 13.7  588 13.7 587 13.7 587 13.7
429.mcf 557 16.4  557 16.4 558 16.3  526 17.4 524 17.4 524 17.4
445.gobmk 786 13.3  786 13.3 786 13.3  720 14.6 719 14.6 720 14.6
456.hmmer 889 10.5  888 10.5 889 10.5  700 13.3 700 13.3 700 13.3
458.sjeng 1011 12.0  1014 11.9 1008 12.0  900 13.5 900 13.4 901 13.4
462.libquantum 882 23.5  882 23.5 882 23.5  712 29.1 712 29.1 712 29.1
464.h264ref 1066 20.8  1067 20.7 1066 20.8  1009 21.9 1012 21.9 1013 21.8
471.omnetpp 551 11.3  552 11.3 551 11.3  506 12.3 505 12.4 506 12.4
473.astar 704 9.97 702 10.0 705 9.96 650 10.8 641 10.9 651 10.8
483.xalancbmk 394 17.5  394 17.5 395 17.5  394 17.5 394 17.5 395 17.5

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run

General Notes


All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer,
for peak, are compiled in 64-bit mode

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -xT   -ipo   -O3   -no-prec-div   -Wl,-z,muldefs   -L/opt/SmartHeap_8.1/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/cce/10.0.023/bin/icc   -L/opt/intel/cce/10.0.023/lib   -I/opt/intel/cce/10.0.023/include
456.hmmer:  /opt/intel/cce/10.0.023/bin/icc   -L/opt/intel/cce/10.0.023/lib   -I/opt/intel/cce/10.0.023/include

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -ansi-alias   -prefetch
401.bzip2:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast
403.gcc:  basepeak = yes
429.mcf:  -fast   -prefetch
445.gobmk:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O2   -ipo   -no-prec_div   -ansi-alias
456.hmmer:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias
458.sjeng:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4
462.libquantum:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -Ob0   -prefetch   -opt-streaming-stores always
464.h264ref:  Same as 456.hmmer

C++ benchmarks:

471.omnetpp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O3   -ipo   -no-prec_div   -ansi-alias   -Wl,-z,muldefs   -L/opt/SmartHeap_8.1/lib -lsmartheap
473.astar:  Same as 471.omnetpp
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/NEC-ic10-INT-ia32-intel64-linux-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/NEC-ic10-INT-ia32-intel64-linux-flags.xml.
