CPU2006 license: | 22 | Test date: | Oct-2007 |
---|---|---|---|
Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Dec-2007 |
Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2007 |
Hardware | |
---|---|
CPU Name: | Intel Xeon X3210 |
CPU Characteristics: | 1066 MHz system bus |
CPU MHz: | 2133 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
CPU(s) orderable: | 1 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 4 GB (4x1 GB PC2-6400E, 2 rank, CAS 6-6-6, with ECC) |
Disk Subsystem: | Fujitsu MAY2036RC (SAS, 36GB, 10000rpm) |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
Compiler: | Intel C++ Compiler for Linux32 and Linux64 Version 10.1 - Build 20070725 |
Auto Parallel: | Yes |
File System: | ext2 |
System State: | Multiuser, Runlevel 3 |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Smart Heap Library, Version 8.1 binutils-2.17.tar.gz, Version 2.17 |

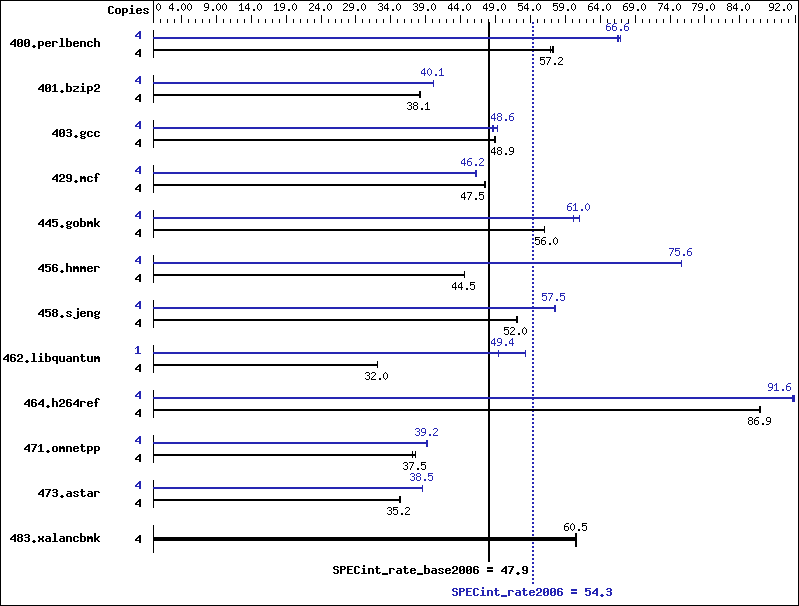

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 4 | 682 | 57.3 | 687 | 56.9 | 683 | 57.2 | 4 | 587 | 66.6 | 588 | 66.5 | 584 | 66.9 |
401.bzip2 | 4 | 1010 | 38.2 | 1014 | 38.1 | 1013 | 38.1 | 4 | 963 | 40.1 | 962 | 40.1 | 961 | 40.2 |
403.gcc | 4 | 659 | 48.8 | 658 | 48.9 | 658 | 48.9 | 4 | 662 | 48.6 | 664 | 48.5 | 653 | 49.3 |
429.mcf | 4 | 768 | 47.5 | 767 | 47.6 | 768 | 47.5 | 4 | 789 | 46.2 | 791 | 46.1 | 790 | 46.2 |
445.gobmk | 4 | 749 | 56.0 | 749 | 56.0 | 750 | 56.0 | 4 | 698 | 60.1 | 687 | 61.0 | 688 | 61.0 |
456.hmmer | 4 | 839 | 44.5 | 838 | 44.5 | 838 | 44.6 | 4 | 494 | 75.6 | 494 | 75.6 | 493 | 75.7 |
458.sjeng | 4 | 931 | 52.0 | 932 | 52.0 | 928 | 52.2 | 4 | 842 | 57.5 | 842 | 57.5 | 840 | 57.6 |
462.libquantum | 4 | 2585 | 32.1 | 2587 | 32.0 | 2587 | 32.0 | 1 | 419 | 49.4 | 389 | 53.2 | 420 | 49.4 |
464.h264ref | 4 | 1019 | 86.9 | 1019 | 86.8 | 1018 | 87.0 | 4 | 964 | 91.8 | 967 | 91.5 | 966 | 91.6 |
471.omnetpp | 4 | 666 | 37.5 | 674 | 37.1 | 666 | 37.5 | 4 | 637 | 39.2 | 637 | 39.2 | 639 | 39.1 |
473.astar | 4 | 794 | 35.4 | 797 | 35.2 | 797 | 35.2 | 4 | 730 | 38.5 | 730 | 38.5 | 729 | 38.5 |
483.xalancbmk | 4 | 456 | 60.5 | 457 | 60.4 | 456 | 60.6 | 4 | 456 | 60.5 | 457 | 60.4 | 456 | 60.6 |
This result has been produced with binaries provided and compiled by Intel. All binaries were built with 32-bit Intel compiler except: 401.bzip2 and 456.hmmer in peak were built with 64-bit Intel compiler by changing the path for include and library files. BIOS configuration: Hardware Prefetch = Disable, Adjacent Sector Prefetch = Disable For information about Fujitsu Siemens Computers please see: http://www.fujitsu-siemens.com
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-fast -inline-calloc -opt-malloc-options=3 |
-xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
icpc |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
429.mcf: | -fast -prefetch |
445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
483.xalancbmk: | basepeak = yes |
