SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Intel Corporation

Intel D975XBX2 motherboard (Intel Core 2 Quad
QX6800)

SPECint®2006 = 22.1

CPU2006 license: 13 Test date: Nov-2007
Test sponsor: Intel Corporation Hardware Availability: Sep-2007
Tested by: Intel Corporation Software Availability: Nov-2007

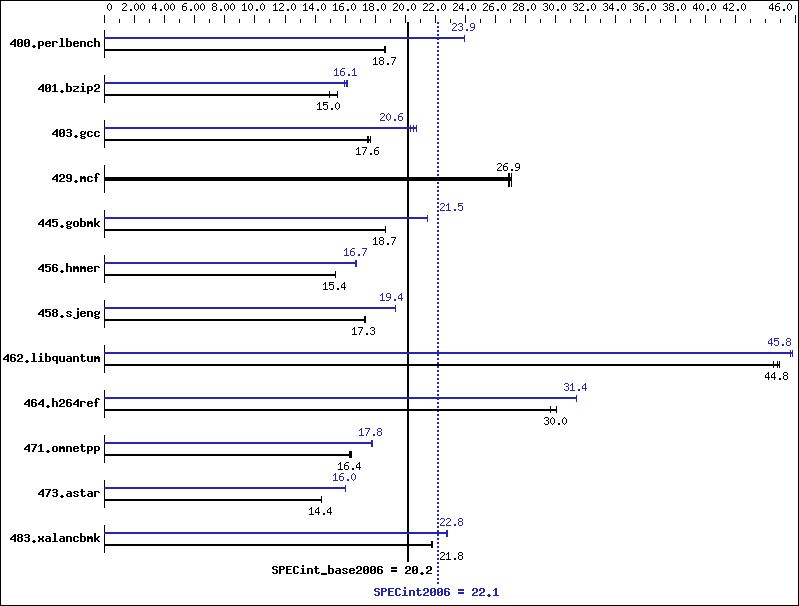

Benchmark results graph
Hardware
CPU Name: Intel Core 2 Quad QX6800
CPU Characteristics: 2.93 GHz 1066 MHz FSB
CPU MHz: 2933
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 4 GB (4x1GB Micron MT16HTF12864AY-80ED4 DDR2-800
CL5)
Disk Subsystem: Seagate 320GB NCQ SATA, 16MB cache, 7200 RPM
Other Hardware: None
Software
Operating System: Windows Vista64 Ultimate
Compiler: Intel C++ Compiler for IA32 version 10.1
Build 20070913 Package ID: w_cc_p_10.1.011
Microsoft Visual Studio 2005 SP1 (for libraries)
Auto Parallel: Yes
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: SmartHeap Library Version 8.1 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 524 18.7 524 18.7 524 18.7 408 23.9 408 23.9 408 23.9
401.bzip2 645 15.0 646 14.9 623 15.5 601 16.1 605 16.0 596 16.2
403.gcc 458 17.6 460 17.5 454 17.7 388 20.8 391 20.6 395 20.4
429.mcf 337 27.1 339 26.9 338 26.9 337 27.1 339 26.9 338 26.9
445.gobmk 562 18.7 562 18.7 562 18.7 488 21.5 488 21.5 488 21.5
456.hmmer 607 15.4 607 15.4 607 15.4 558 16.7 558 16.7 558 16.7
458.sjeng 698 17.3 699 17.3 698 17.3 625 19.4 625 19.4 625 19.4
462.libquantum 465 44.5 463 44.8 462 44.9 454 45.6 453 45.8 452 45.8
464.h264ref 737 30.0 746 29.6 736 30.1 705 31.4 704 31.4 705 31.4
471.omnetpp 381 16.4 383 16.3 382 16.4 351 17.8 351 17.8 351 17.8
473.astar 486 14.5 487 14.4 487 14.4 438 16.0 438 16.0 438 16.0
483.xalancbmk 316 21.8 317 21.8 317 21.8 303 22.8 303 22.8 303 22.8

General Notes

 Tested systems can be used with Shin-G ATX case, Antec NeoPower 480W power supply
 Product description located as of 11/2007:
 http://www.intel.com/products/motherboard/D975XBX2/index.htm
 The system bus runs at 1066 MHz
 System was configured with Asus EN8800GTX discrete graphics card
 Binaries were built on Windows Vista32
 The following VS 2005 SP1 updates were applied: KB926601 and KB932232

Base Compiler Invocation

C benchmarks:

 icl -Qvc8   -Qc99

C++ benchmarks:

 icl -Qvc8

Base Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Base Optimization Flags

C benchmarks:

 -fast   -Qparallel   -Qpar-runtime-control   -Qvec-guard-write   /F512000000   libguide40.lib

C++ benchmarks:

 -fast   -Qcxx_features   /F512000000   shlw32m.lib   libguide40.lib    -link /FORCE:MULTIPLE

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks:

 icl -Qvc8   -Qc99

C++ benchmarks:

 icl -Qvc8

Peak Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Peak Optimization Flags

C benchmarks:

400.perlbench:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qansi-alias   -Qprefetch   -Qparallel   -Qpar-runtime-control   /F512000000   shlw32m.lib   libguide40.lib    -link /FORCE:MULTIPLE
401.bzip2:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qprefetch   /F512000000   libguide40.lib
403.gcc:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F512000000   libguide40.lib
429.mcf:  basepeak = yes
445.gobmk:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxT   -O2   -Qipo   -Qprec-div-   -Qansi-alias   /F512000000
456.hmmer:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Qansi-alias   -Qopt-multi-version-aggressive   /F512000000   libguide40.lib
458.sjeng:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll4   /F512000000   libguide40.lib
462.libquantum:  -fast   -Qunroll4   -Ob0   -Qprefetch   -Qopt-streaming-stores:always   -Qparallel   -Qpar-runtime-control   /F512000000   libguide40.lib
464.h264ref:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Qansi-alias   /F512000000   libguide40.lib

C++ benchmarks:

471.omnetpp:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qansi-alias   -Qopt-ra-region-strategy=block   -Qcxx_features   /F512000000   shlw32m.lib   libguide40.lib    -link /FORCE:MULTIPLE
473.astar:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qansi-alias   -Qopt-ra-region-strategy=routine   -Qcxx_features   /F512000000   shlw32m.lib   libguide40.lib    -link /FORCE:MULTIPLE
483.xalancbmk:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qansi-alias   -Qcxx_features   /F512000000   shlw32m.lib   libguide40.lib    -link /FORCE:MULTIPLE

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.09.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.09.xml.
