SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

Dell Precision M6300 (Intel X9000, 2.80 GHz)

CPU2006 license: 55 Test date: Dec-2007
Test sponsor: Dell Inc. Hardware Availability: Jan-2008
Tested by: Dell Inc. Software Availability: Nov-2007

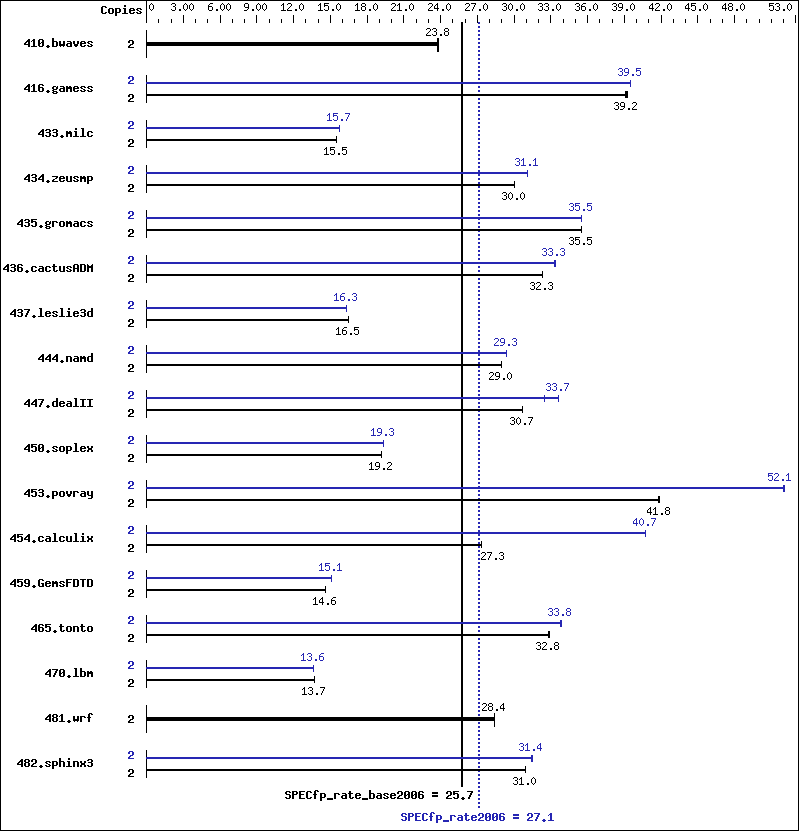

Benchmark results graph
Hardware
CPU Name: Intel Core 2 Extreme X9000
CPU Characteristics: 800 MHz Bus Speed
CPU MHz: 2800
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 4 GB (2x2 GB 667 MHz CL5 DDR2)
Disk Subsystem: 1 x 120GB SATA 7200 RPM
Other Hardware: None
Software
Operating System: Windows XP Professional x64 Edition SP2
Compiler: Intel C++ Compiler for Intel 64, Version 10.1
Build 20070809 Package ID: w_cc_p_10.1.011
Intel Visual Fortran Compiler for Intel 64,
Version 10.0
Build 20070809 Package ID: w_fc_p_10.1.011
Microsoft Visual Studio 2005 SP1
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 8.1 for x64

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 2 1142 23.8 1140 23.8 1139 23.9 2 1142 23.8 1140 23.8 1139 23.9
416.gamess 2 1002 39.1 999 39.2 998 39.2 2 990 39.5 992 39.5 992 39.5
433.milc 2 1183 15.5 1182 15.5 1182 15.5 2 1168 15.7 1168 15.7 1168 15.7
434.zeusmp 2 606 30.0 606 30.0 606 30.0 2 585 31.1 585 31.1 585 31.1
435.gromacs 2 403 35.5 402 35.5 402 35.5 2 402 35.5 402 35.5 402 35.5
436.cactusADM 2 739 32.3 739 32.3 739 32.3 2 717 33.4 717 33.3 717 33.3
437.leslie3d 2 1140 16.5 1139 16.5 1140 16.5 2 1151 16.3 1149 16.4 1151 16.3
444.namd 2 554 28.9 554 29.0 554 29.0 2 547 29.3 547 29.3 546 29.4
447.dealII 2 746 30.7 745 30.7 746 30.7 2 705 32.5 680 33.7 680 33.7
450.soplex 2 869 19.2 869 19.2 868 19.2 2 862 19.3 863 19.3 863 19.3
453.povray 2 254 41.8 254 41.8 254 41.9 2 204 52.1 204 52.1 205 52.0
454.calculix 2 604 27.3 603 27.3 603 27.3 2 405 40.7 405 40.8 405 40.7
459.GemsFDTD 2 1456 14.6 1453 14.6 1453 14.6 2 1408 15.1 1405 15.1 1405 15.1
465.tonto 2 599 32.9 599 32.8 599 32.8 2 581 33.9 582 33.8 582 33.8
470.lbm 2 1999 13.7 1999 13.7 1999 13.7 2 2018 13.6 2018 13.6 2018 13.6
481.wrf 2 787 28.4 786 28.4 786 28.4 2 787 28.4 786 28.4 786 28.4
482.sphinx3 2 1259 31.0 1259 31.0 1261 30.9 2 1242 31.4 1237 31.5 1240 31.4

General Notes

 Binaries were built on Windows Vista Ultimate (64-bit)

Base Compiler Invocation

C benchmarks:

 icl   -Qstd=c99

C++ benchmarks:

 icl

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   -Qlowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -Qlowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -fast   -Qauto-ilp32   /F1000000000   shlw64m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qauto-ilp32   -Qcxx_features   /F1000000000   shlw64m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -fast   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE

Peak Compiler Invocation

C benchmarks:

 icl   -Qstd=c99

C++ benchmarks:

 icl

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qstd=c99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll2   -Oa   /F1000000000   shlw64m.lib    -link /FORCE:MULTIPLE
470.lbm:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll2   -Qscalar-rep-   -Qprefetch   /F1000000000   shlw64m.lib    -link /FORCE:MULTIPLE
482.sphinx3:  -fast   -Qauto-ilp32   -Qunroll2   /F1000000000   shlw64m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

444.namd:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Oa   -Qcxx_features   /F1000000000   shlw64m.lib    -link /FORCE:MULTIPLE
447.dealII:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll2   -Qprefetch   -Qcxx_features   /F1000000000   shlw64m.lib    -link /FORCE:MULTIPLE
450.soplex:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qcxx_features   /F1000000000   shlw64m.lib    -link /FORCE:MULTIPLE
453.povray:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll4   -Qansi-alias   -Qcxx_features   /F1000000000   shlw64m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F1000000000    -link /FORCE:MULTIPLE
434.zeusmp:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxT   -O2   -Qprec-div-   -Qunroll0   -Qscalar-rep-   /F1000000000    -link /FORCE:MULTIPLE
437.leslie3d:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qprefetch   /F1000000000    -link /FORCE:MULTIPLE
459.GemsFDTD:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll2   -Ob0   -Qprefetch   /F1000000000    -link /FORCE:MULTIPLE
465.tonto:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll4   -Qauto   /F1000000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Oa   -Qprefetch   /F1000000000    -link /FORCE:MULTIPLE
436.cactusADM:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll2   -Qprefetch   /F1000000000    -link /FORCE:MULTIPLE
454.calculix:  -fast   -Qauto-ilp32   -Qunroll-aggressive   /F1000000000    -link /FORCE:MULTIPLE
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/dell.ic10.1.windows.flags.20090714.01.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/dell.ic10.1.windows.flags.20090714.01.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 15:21:24 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 8 January 2008.
