CPU2006 license: | 3 | Test date: | Dec-2007 |
---|---|---|---|
Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Jan-2008 |
Tested by: | Hewlett-Packard Company | Software Availability: | Nov-2007 |
Hardware | |
---|---|
CPU Name: | Intel Xeon X5260 |
CPU Characteristics: | 3.33 GHz, 6 MB L2 shared, 1333 MHz system bus |
CPU MHz: | 3333 |
FPU: | Integrated |
CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 6 MB I+D on chip per chip |
L3 Cache: | None |
Other Cache: | None |
Memory: | 16 GB (8x2 GB PC2-5300F CL5) |
Disk Subsystem: | 1x72 GB 15 K SAS |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1 Kernel 2.6.16.46-0.12-smp |
Compiler: | Intel C++ Compiler for applications running on IA-32 and Intel 64, Version 10.1 Build 20070913 Package ID: l_cc_p_10.1.008 |
Auto Parallel: | Yes |
File System: | ext2 |
System State: | Multi-user run level 3 |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | MicroQuill SmartHeap Library 8.1 binutils-2.17.50 |

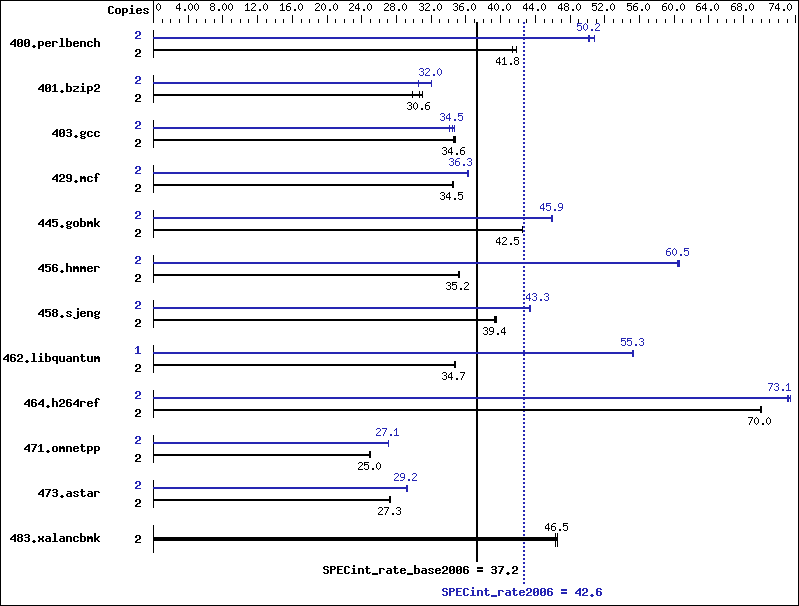

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 2 | 467 | 41.9 | 472 | 41.4 | 468 | 41.8 | 2 | 389 | 50.2 | 385 | 50.8 | 390 | 50.1 |
401.bzip2 | 2 | 630 | 30.6 | 623 | 31.0 | 646 | 29.9 | 2 | 603 | 32.0 | 633 | 30.5 | 603 | 32.0 |
403.gcc | 2 | 465 | 34.6 | 463 | 34.7 | 466 | 34.6 | 2 | 465 | 34.6 | 471 | 34.2 | 467 | 34.5 |
429.mcf | 2 | 529 | 34.5 | 529 | 34.5 | 528 | 34.5 | 2 | 502 | 36.3 | 502 | 36.3 | 505 | 36.1 |
445.gobmk | 2 | 494 | 42.5 | 494 | 42.5 | 494 | 42.5 | 2 | 457 | 45.9 | 457 | 45.9 | 457 | 45.9 |
456.hmmer | 2 | 530 | 35.2 | 531 | 35.1 | 530 | 35.2 | 2 | 309 | 60.4 | 309 | 60.5 | 308 | 60.6 |
458.sjeng | 2 | 613 | 39.5 | 615 | 39.3 | 615 | 39.4 | 2 | 559 | 43.3 | 558 | 43.3 | 558 | 43.4 |
462.libquantum | 2 | 1194 | 34.7 | 1194 | 34.7 | 1192 | 34.8 | 1 | 375 | 55.2 | 375 | 55.3 | 375 | 55.3 |
464.h264ref | 2 | 632 | 70.0 | 633 | 70.0 | 633 | 69.9 | 2 | 606 | 73.0 | 605 | 73.1 | 603 | 73.4 |
471.omnetpp | 2 | 503 | 24.9 | 499 | 25.1 | 500 | 25.0 | 2 | 462 | 27.1 | 462 | 27.0 | 462 | 27.1 |
473.astar | 2 | 515 | 27.3 | 514 | 27.3 | 517 | 27.2 | 2 | 480 | 29.2 | 481 | 29.2 | 481 | 29.2 |
483.xalancbmk | 2 | 297 | 46.5 | 297 | 46.5 | 298 | 46.3 | 2 | 297 | 46.5 | 297 | 46.5 | 298 | 46.3 |
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to physical,0 KMP_STACKSIZE set to 64M
BIOS configuration: Power Regulator set to Static High Performance Mode Adjacent Sector Prefetch Disabled
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-fast -inline-calloc -opt-malloc-options=3 |
-xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/cpu2006.1.0/SmartHeap_8.1/lib -lsmartheap |
icpc |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
429.mcf: | -fast -prefetch |
445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/cpu2006.1.0/SmartHeap_8.1/lib -lsmartheap |
473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/cpu2006.1.0/SmartHeap_8.1/lib -lsmartheap |
483.xalancbmk: | basepeak = yes |
