CPU2006 license: | 11 | Test date: | Dec-2007 |
---|---|---|---|
Test sponsor: | IBM Corporation | Hardware Availability: | Jan-2008 |
Tested by: | IBM Corporation | Software Availability: | Nov-2007 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5405 |
CPU Characteristics: | 1333MHz system bus |
CPU MHz: | 1997 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 16 GB (8 x 2 GB DDR2-5300F ECC) |
Disk Subsystem: | 1 x 36 GB SAS, 15000 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SuSE Linux Enterprise Server 10 (x86_64), Kernel 2.6.16.21-0.8-smp |
Compiler: | Intel C++ Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008 |
Auto Parallel: | Yes |
File System: | ReiserFS |
System State: | Multi-user, run level 3 |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | MicroQuill SmartHeap 8.1 Binutils 2.17.50.0.15 |

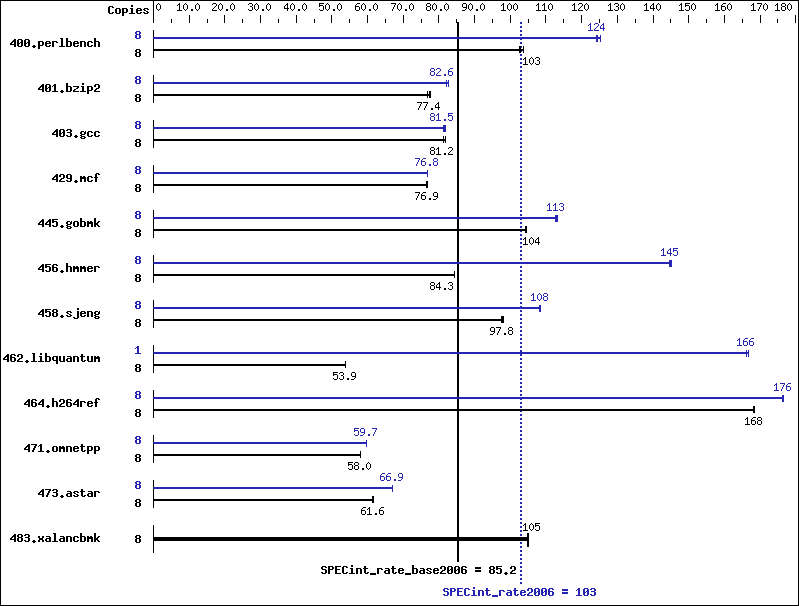

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 8 | 763 | 102 | 759 | 103 | 754 | 104 | 8 | 628 | 124 | 624 | 125 | 629 | 124 |
401.bzip2 | 8 | 994 | 77.7 | 997 | 77.4 | 1006 | 76.8 | 8 | 935 | 82.6 | 932 | 82.8 | 939 | 82.2 |
403.gcc | 8 | 793 | 81.2 | 787 | 81.8 | 793 | 81.2 | 8 | 787 | 81.8 | 790 | 81.5 | 791 | 81.4 |
429.mcf | 8 | 949 | 76.9 | 952 | 76.6 | 949 | 76.9 | 8 | 951 | 76.7 | 950 | 76.8 | 950 | 76.8 |
445.gobmk | 8 | 803 | 105 | 804 | 104 | 805 | 104 | 8 | 742 | 113 | 744 | 113 | 745 | 113 |
456.hmmer | 8 | 885 | 84.3 | 885 | 84.3 | 884 | 84.4 | 8 | 515 | 145 | 515 | 145 | 516 | 145 |
458.sjeng | 8 | 990 | 97.8 | 991 | 97.6 | 988 | 98.0 | 8 | 892 | 108 | 896 | 108 | 892 | 108 |
462.libquantum | 8 | 3076 | 53.9 | 3076 | 53.9 | 3076 | 53.9 | 1 | 125 | 166 | 125 | 166 | 124 | 167 |
464.h264ref | 8 | 1052 | 168 | 1052 | 168 | 1052 | 168 | 8 | 1003 | 176 | 1003 | 177 | 1004 | 176 |
471.omnetpp | 8 | 863 | 57.9 | 862 | 58.0 | 862 | 58.0 | 8 | 839 | 59.6 | 837 | 59.7 | 838 | 59.7 |
473.astar | 8 | 914 | 61.5 | 911 | 61.6 | 912 | 61.6 | 8 | 839 | 66.9 | 839 | 66.9 | 838 | 67.0 |
483.xalancbmk | 8 | 525 | 105 | 526 | 105 | 527 | 105 | 8 | 525 | 105 | 526 | 105 | 527 | 105 |
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode Hardware Sector Prefetch Enabled and Adjacent Sector Prefetch Disabled OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to physical,0 KMP_STACKSIZE set to 64M Powersaved dameon was disabled in OS taskset utility used to bind CPU(s) to processes
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-fast -inline-calloc -opt-malloc-options=3 |
-xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
icpc |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
429.mcf: | -fast -prefetch |
445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
483.xalancbmk: | basepeak = yes |
