| CPU2006 license: | 9008 | Test date: | Jan-2008 |
|---|---|---|---|
| Test sponsor: | ACTION S.A. | Hardware Availability: | Jan-2008 |
| Tested by: | ACTION S.A. | Software Availability: | Jun-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5405 |
| CPU Characteristics: | 2.0 GHz, 12MB L2, 1333MHz bus |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 x 2GB 667MHz CL5 DDR2 FB-DIMM SDRAM) |
| Disk Subsystem: | RAID 5 (5X 147GB SAS 15K RPM) |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows 2003 Server Enterprise Edition (32-bit) Service Pack 1 |
| Compiler: | Intel C++ Compiler for IA32 version 10.0 Build 20070426 Package ID: W_CC_P_10.0.025 Microsoft Visual Studio .Net 2003 (for libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | SmartHeap Library Version 8.0 |

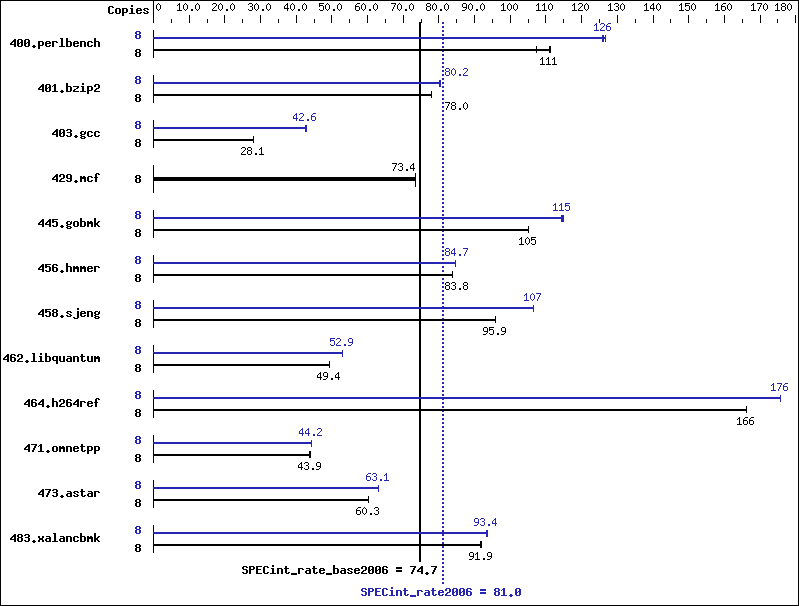

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 728 | 107 | 703 | 111 | 705 | 111 | 8 | 616 | 127 | 620 | 126 | 621 | 126 |
| 401.bzip2 | 8 | 989 | 78.0 | 991 | 77.9 | 990 | 78.0 | 8 | 959 | 80.5 | 963 | 80.2 | 964 | 80.1 |
| 403.gcc | 8 | 2290 | 28.1 | 2291 | 28.1 | 2295 | 28.1 | 8 | 1510 | 42.6 | 1511 | 42.6 | 1505 | 42.8 |
| 429.mcf | 8 | 995 | 73.4 | 994 | 73.4 | 995 | 73.4 | 8 | 995 | 73.4 | 994 | 73.4 | 995 | 73.4 |
| 445.gobmk | 8 | 798 | 105 | 798 | 105 | 798 | 105 | 8 | 731 | 115 | 734 | 114 | 732 | 115 |
| 456.hmmer | 8 | 891 | 83.8 | 891 | 83.8 | 891 | 83.8 | 8 | 881 | 84.7 | 881 | 84.7 | 881 | 84.7 |
| 458.sjeng | 8 | 1009 | 96.0 | 1009 | 95.9 | 1009 | 95.9 | 8 | 908 | 107 | 909 | 107 | 908 | 107 |
| 462.libquantum | 8 | 3362 | 49.3 | 3359 | 49.4 | 3358 | 49.4 | 8 | 3133 | 52.9 | 3129 | 53.0 | 3134 | 52.9 |
| 464.h264ref | 8 | 1065 | 166 | 1065 | 166 | 1065 | 166 | 8 | 1008 | 176 | 1008 | 176 | 1008 | 176 |
| 471.omnetpp | 8 | 1140 | 43.9 | 1140 | 43.8 | 1139 | 43.9 | 8 | 1132 | 44.2 | 1132 | 44.2 | 1132 | 44.2 |
| 473.astar | 8 | 932 | 60.3 | 932 | 60.3 | 932 | 60.3 | 8 | 890 | 63.1 | 889 | 63.1 | 890 | 63.1 |
| 483.xalancbmk | 8 | 600 | 91.9 | 600 | 91.9 | 602 | 91.7 | 8 | 592 | 93.3 | 591 | 93.4 | 590 | 93.5 |
General Notes
Product description located as of 1/2008: http://www.actina.pl Binaries were built on Windows XP Professional SP2 Start command was used to bind processes to CPUs
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Base Optimization Flags
C benchmarks:
| -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qprefetch /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 403.gcc: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 -link /FORCE:MULTIPLE |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -QxT -O2 -Qipo -Qprec_div- -Qansi-alias /F512000000 -link /FORCE:MULTIPLE |
| 456.hmmer: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll2 -Qansi-alias /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 458.sjeng: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll4 /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 462.libquantum: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll4 -Ob0 -Qprefetch -Qopt-streaming-stores:always /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 464.h264ref: | Same as 456.hmmer |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
