SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun Fire X4150

CPU2006 license: 6 Test date: Jan-2008
Test sponsor: Sun Microsystems Hardware Availability: Feb-2008
Tested by: Sun Microsystems Software Availability: Nov-2007

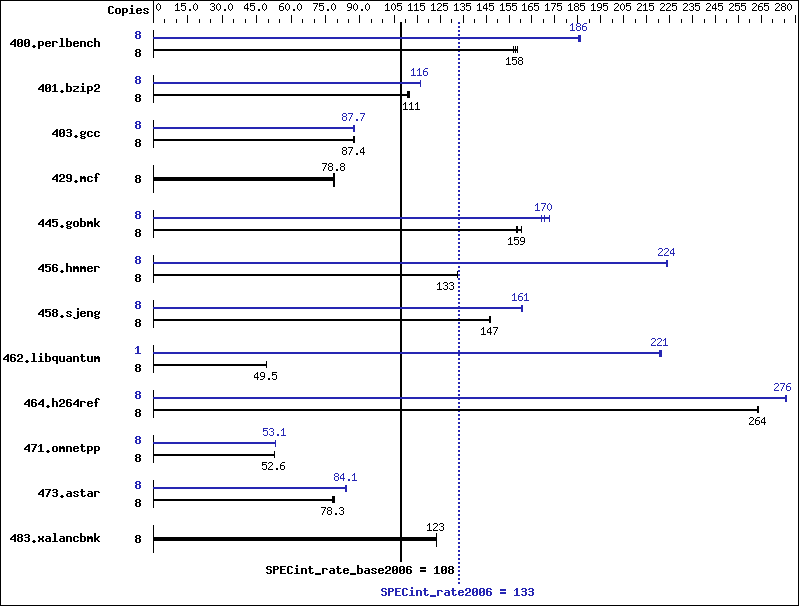

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5460
CPU Characteristics: 3.16 GHz, 2x6 MB L2 shared, 1333 MHz system bus
CPU MHz: 3166
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 (order by number of chips)
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2GB DDR2 PC2-5300F 2rank CAS 5-5-5
with ECC)
Disk Subsystem: SAS, 72 GB, 10K RPM
Other Hardware: None
Software
Operating System: SUSE LINUX Enterprise Server 10 SP1 for x86_64
Compiler: Intel C++ and Fortran Compiler for Linux32 and
Linux64 version 10.1
Build 20070725
Auto Parallel: Yes
File System: ReiserFS
System State: Multi-user, run level 3
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap library V8.1
Binutils 2.17.50.0.15

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 8 498 157   495 158   493 159   8 422   185   420   186   420   186
401.bzip2 8 696 111   693 111   695 111   8 663   116   663   116   662   117
403.gcc 8 738 87.2 737 87.4 735 87.6 8 739   87.2 734   87.7 735   87.7
429.mcf 8 925 78.8 923 79.0 928 78.6 8 925   78.8 923   79.0 928   78.6
445.gobmk 8 529 159   530 158   523 160   8 496   169   486   173   493   170
456.hmmer 8 562 133   563 132   563 133   8 334   224   333   224   333   224
458.sjeng 8 658 147   659 147   661 147   8 602   161   603   160   603   161
462.libquantum 8 3352 49.5 3351 49.5 3351 49.5 1 93.7 221   93.9 221   93.5 222
464.h264ref 8 671 264   672 264   671 264   8 642   276   641   276   643   276
471.omnetpp 8 950 52.6 951 52.6 949 52.7 8 941   53.1 941   53.1 941   53.1
473.astar 8 718 78.2 712 78.9 717 78.3 8 668   84.1 668   84.1 670   83.8
483.xalancbmk 8 448 123   448 123   448 123   8 448   123   448   123   448   123

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited
 OMP_NUM_THREADS set to 8
 KMP_STACKSIZE set to 64M
 KMP_AFFINITY set to physical,0

Platform Notes

 BIOS configuration:
 Hardware Prefetch = Disable; Adjacent Sector Prefetch = Disable

General Notes

 All benchmarks were compiled in 32-bit mode except 401.bzip2
 and 456.hmmer for peak were compiled in 64-bit mode

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast   -inline-calloc   -opt-malloc-options=3

C++ benchmarks:

 -xT   -ipo   -O3   -no-prec-div   -Wl,-z,muldefs   -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux64/bin/icc
456.hmmer:  /home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux64/bin/icc

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -ansi-alias   -prefetch
401.bzip2:  -L/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux64/lib -I/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux64/include   -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch
403.gcc:  -fast   -inline-calloc   -opt-malloc-options=3
429.mcf:  basepeak = yes
445.gobmk:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O2   -ipo   -no-prec-div   -ansi-alias
456.hmmer:  -L/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux64/lib -I/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux64/include   -fast   -unroll2   -ansi-alias   -opt-multi-version-aggressive
458.sjeng:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4
462.libquantum:  -fast   -unroll4   -Ob0   -prefetch   -opt-streaming-stores always   -vec-guard-write   -opt-malloc-options=3   -parallel   -par-runtime-control
464.h264ref:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O3   -ipo   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=block   -Wl,-z,muldefs   -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap
473.astar:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O3   -ipo   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=routine   -Wl,-z,muldefs   -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.24.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.24.xml.
