SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Limited

Fujitsu SPARC Enterprise M8000

SPECfp®2006 = 23.6

CPU2006 license: 19 Test date: Mar-2008
Test sponsor: Fujitsu Limited Hardware Availability: Apr-2007
Tested by: Sun Microsystems Software Availability: May-2008

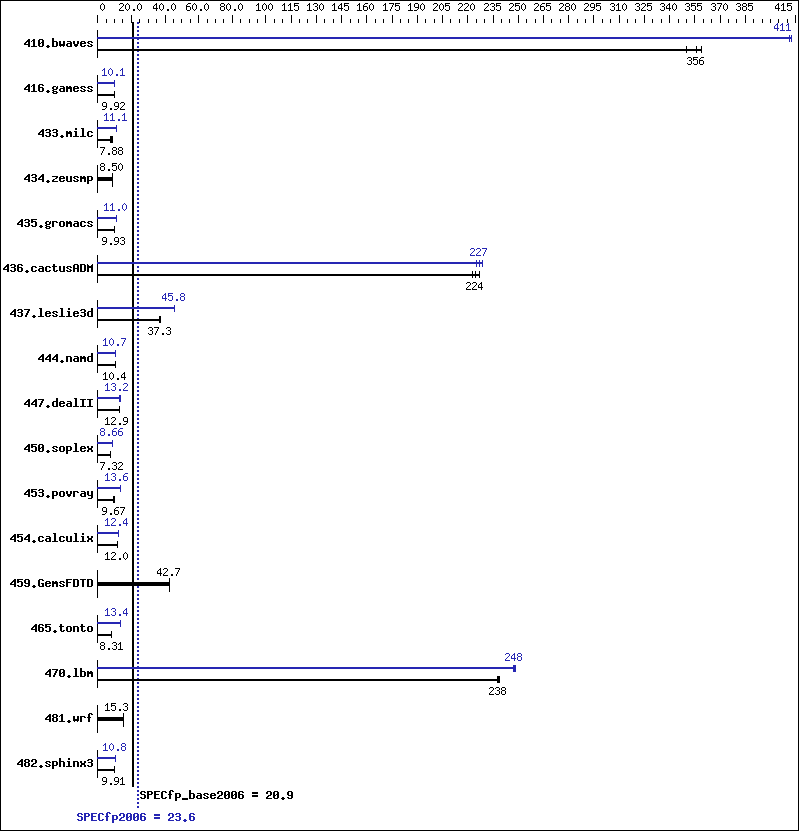

Benchmark results graph
Hardware
CPU Name: SPARC64 VI
CPU Characteristics:
CPU MHz: 2280
FPU: Integrated
CPU(s) enabled: 32 cores, 16 chips, 2 cores/chip, 2 threads/core
CPU(s) orderable: 1 to 4 CMUs; each CMU contains 2 or 4 chips
Primary Cache: 128 KB I + 128 KB D on chip per core
Secondary Cache: 5 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 256 GB (128 x 2 GB DIMMs)
Disk Subsystem: 73 GB 10,000 RPM Fujitsu MAY2073RC SAS
Other Hardware: None
Software
Operating System: Solaris 10 5/08 s10s_u5wos_08
Compiler: Sun Studio 12, see patch information below
Auto Parallel: Yes
File System: ufs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 38.9 350    38.1 356    37.8 359    33.1 411    33.0 411    33.0 412
416.gamess 1974   9.92 1973   9.92 1973   9.92 1932   10.1  1932   10.1  1931   10.1
433.milc 1165   7.88 1166   7.88 1069   8.58 828   11.1  828   11.1  838   11.0
434.zeusmp 1071   8.50 1071   8.50 1070   8.50 1071   8.50 1071   8.50 1070   8.50
435.gromacs 719   9.93 719   9.93 720   9.92 650   11.0  651   11.0  652   11.0
436.cactusADM 52.6 227    53.6 223    53.2 224    52.7 227    53.0 225    52.2 229
437.leslie3d 252   37.3  254   37.0  252   37.3  205   45.8  206   45.7  205   45.9
444.namd 768   10.4  767   10.4  767   10.4  748   10.7  748   10.7  748   10.7
447.dealII 885   12.9  889   12.9  887   12.9  864   13.2  831   13.8  870   13.2
450.soplex 1137   7.34 1139   7.32 1139   7.32 968   8.61 963   8.66 955   8.74
453.povray 551   9.65 549   9.70 550   9.67 392   13.6  389   13.7  391   13.6
454.calculix 689   12.0  688   12.0  687   12.0  669   12.3  666   12.4  665   12.4
459.GemsFDTD 249   42.6  249   42.7  248   42.7  249   42.6  249   42.7  248   42.7
465.tonto 1185   8.30 1183   8.32 1184   8.31 736   13.4  736   13.4  736   13.4
470.lbm 57.6 239    57.7 238    57.7 238    55.4 248    55.4 248    55.5 247
481.wrf 731   15.3  731   15.3  734   15.2  731   15.3  731   15.3  734   15.2
482.sphinx3 1966   9.91 1965   9.92 1977   9.86 1832   10.6  1810   10.8  1802   10.8

Compiler Invocation Notes


 Sun Studio compiler patches are available at
 http://developers.sun.com/sunstudio/downloads/patches/ss12_patches.jsp
 The tested configuration included patch 124867-02, 127000-02,
 124863-02, 124861-04

Operating System Notes


Stack size set to unlimited with "ulimit -s unlimited"

Program threads were bound to processors with:
    SUNW_MP_PROCBIND="1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37
                      39 41 43 45 47 49 51 53 55 57 59 61 63"

Behavior of parallel threads was set with:
    SUNW_MP_THR_IDLE=SPIN
SPIN specifies that an idle thread should spin while waiting at barrier
or waiting for new parallel regions to work on.

The maximum number of threads a program can create was set with:
    OMP_NUM_THREADS=32


 System Tunables:
 (/etc/system parameters)
    maxphys=4194304
       Defines the maximum size of I/O requests, in bytes.
    maxpgio=1024
       Defines the maximum number of page I/O requests that can
       be queued by the paging system.
    tune_t_fsflushr=4
       Controls how many seconds elapse between runs of the
       page flush daemon, fsflush.
    autoup=60
       Causes pages older than the listed number of seconds to
       be written by fsflush.
    bufhwm=3000
       Memory byte limit for caching I/O buffers
    segmap_percent=1
       Set maximum percent memory for file system cache

Platform Notes


 This result is measured on a Sun SPARC Enterprise
 M8000 Server.  Note that the Sun SPARC Enterprise
 M8000 and Fujitsu SPARC Enterprise M8000 are electrically
 equivalent.

 Memory is 8-way interleaved by filling all slots with
 the same capacity DIMMs.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Base Optimization Flags

C benchmarks:

 -fast   -xipo=2   -fma=fused   -xpagesize=4M   -xprefetch=latx:2   -xautopar   -xreduction   -xprefetch_level=3   -xprefetch_auto_type=indirect_array_access

C++ benchmarks:

 -library=stlport4   -fast   -xipo=2   -fma=fused   -xpagesize=4M   -xprefetch=latx:2   -xautopar   -xreduction   -xprefetch_level=2   -xalias_level=compatible

Fortran benchmarks:

 -fast   -xipo=2   -fma=fused   -xpagesize=4M   -xprefetch=latx:2   -xautopar   -xreduction   -xprefetch_level=2

Benchmarks using both Fortran and C:

 -fast(cc)   -fast(f90)   -xipo=2   -fma=fused   -xpagesize=4M   -xprefetch=latx:2   -xautopar   -xreduction   -xprefetch_level=3   -xprefetch_auto_type=indirect_array_access   -xprefetch_level=2

Base Other Flags

C benchmarks:

 -xjobs=64

C++ benchmarks:

 -xjobs=64

Fortran benchmarks:

 -xjobs=64

Benchmarks using both Fortran and C:

 -xjobs=64

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Peak Optimization Flags

C benchmarks:

433.milc:  -fast   -xipo=2   -fma=fused   -xpagesize=4M   -xprefetch=latx:2   -xalias_level=std   -xprefetch_level=3   -xprefetch_auto_type=indirect_array_access   -xalias_level=strong   -xprefetch_level=2
470.lbm:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -fma=fused   -xpagesize=4M   -xprefetch=latx:2   -xalias_level=std   -xprefetch_level=3   -xprefetch_auto_type=indirect_array_access   -xarch=v8plusb   -xprefetch_level=2   -xautopar   -xreduction
482.sphinx3:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -fma=fused   -xalias_level=std

C++ benchmarks:

444.namd:  -library=stlport4   -fast   -xipo=2   -fma=fused   -xpagesize=4M   -xprefetch=latx:2   -xalias_level=compatible   -xdepend
447.dealII:  -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -fma=fused   -xalias_level=compatible   -xdepend   -xrestrict   -xprefetch=latx:4.5
450.soplex:  -library=stlport4   -fast   -xipo=2   -fma=fused   -xpagesize=4M   -xprefetch=latx:2   -xdepend   -xprefetch_level=2   -xprefetch_auto_type=indirect_array_access   -Qoption cg -Qlp-ol=1   -Qoption cg -Qlp-it=3   -Qoption cg -Qlp-imb=1   -Qoption iropt -Apf:pdl=3
453.povray:  -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -fma=fused   -xpagesize=4M   -xprefetch=latx:2   -xalias_level=compatible   -xdepend   -xrestrict   -xprefetch=latx:4.5

Fortran benchmarks:

410.bwaves:  -fast   -xipo=2   -fma=fused   -xpagesize=512K   -xprefetch=latx:2   -xprefetch_level=2   -xautopar   -xreduction
416.gamess:  -fast   -xipo=2   -fma=fused   -xpagesize=4M   -xprefetch=latx:2   -xprefetch_level=2
434.zeusmp:  basepeak = yes
437.leslie3d:  -fast   -xipo=2   -xautopar   -xreduction   -fma=fused   -xprefetch_level=2   -xprefetch=latx:8.0
459.GemsFDTD:  basepeak = yes
465.tonto:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -fma=fused   -xpagesize=4M   -xprefetch=latx:2   -xarch=v8plusa   -xprefetch=latx:12   -lfast

Benchmarks using both Fortran and C:

435.gromacs:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xipo=2   -fma=fused   -xalias_level=std
436.cactusADM:  -fast(cc)   -fast(f90)   -xipo=2   -fma=fused   -xpagesize=4M   -xprefetch=latx:2   -xalias_level=std   -xprefetch_level=3   -xprefetch_auto_type=indirect_array_access   -xautopar   -xreduction
454.calculix:  -fast(cc)   -fast(f90)   -xipo=2   -fma=fused   -xalias_level=std
481.wrf:  basepeak = yes

Peak Other Flags

C benchmarks:

 -xjobs=64

C++ benchmarks:

 -xjobs=64

Fortran benchmarks:

 -xjobs=64

Benchmarks using both Fortran and C:

 -xjobs=64

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-and-gccfss4.2.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-and-gccfss4.2.xml.
