CPU2006 license: | 22 | Test date: | Mar-2008 |
---|---|---|---|
Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Dec-2007 |
Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2007 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E7310 |
CPU Characteristics: | 1067 MHz system bus |
CPU MHz: | 1600 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1,2,4 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 4 MB I+D on chip per chip, 2 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 64 GB (16x4 GB PC2-5300F, 2 rank, CL 5-5-5, ECC) |
Disk Subsystem: | 1x SAS, 73 GB, 15000 rpm |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
Compiler: | Intel C++ Compiler for Linux32 and Linux64, Version 10.1, Build 20070913 |
Auto Parallel: | Yes |
File System: | ext2 |
System State: | Multi-User Run Level 3 |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | MicroQuill SmartHeap Library, Version 8.1 binutils-2.17.50.0.5-0.1.x86_64 |

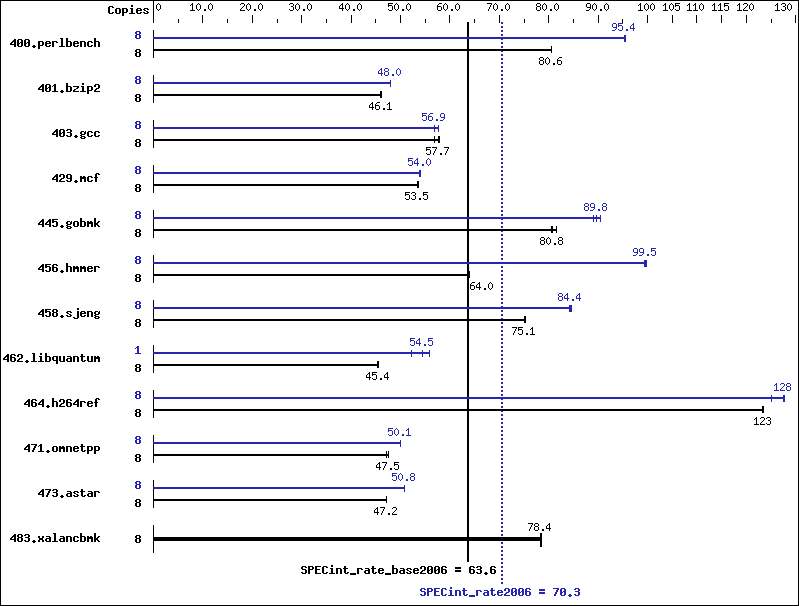

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 8 | 970 | 80.6 | 970 | 80.6 | 969 | 80.7 | 8 | 820 | 95.3 | 819 | 95.4 | 818 | 95.5 |
401.bzip2 | 8 | 1679 | 46.0 | 1675 | 46.1 | 1673 | 46.1 | 8 | 1611 | 47.9 | 1609 | 48.0 | 1607 | 48.1 |
403.gcc | 8 | 1115 | 57.7 | 1132 | 56.9 | 1113 | 57.9 | 8 | 1116 | 57.7 | 1131 | 56.9 | 1131 | 56.9 |
429.mcf | 8 | 1367 | 53.4 | 1364 | 53.5 | 1361 | 53.6 | 8 | 1350 | 54.1 | 1353 | 53.9 | 1352 | 54.0 |
445.gobmk | 8 | 1041 | 80.6 | 1039 | 80.8 | 1030 | 81.5 | 8 | 928 | 90.4 | 943 | 89.0 | 935 | 89.8 |
456.hmmer | 8 | 1165 | 64.0 | 1166 | 64.0 | 1166 | 64.0 | 8 | 750 | 99.5 | 749 | 99.7 | 750 | 99.5 |
458.sjeng | 8 | 1290 | 75.0 | 1289 | 75.1 | 1285 | 75.3 | 8 | 1144 | 84.6 | 1147 | 84.4 | 1150 | 84.2 |
462.libquantum | 8 | 3660 | 45.3 | 3648 | 45.4 | 3640 | 45.5 | 1 | 380 | 54.5 | 397 | 52.2 | 371 | 55.8 |
464.h264ref | 8 | 1433 | 124 | 1435 | 123 | 1436 | 123 | 8 | 1415 | 125 | 1388 | 128 | 1385 | 128 |
471.omnetpp | 8 | 1053 | 47.5 | 1061 | 47.1 | 1050 | 47.6 | 8 | 999 | 50.1 | 999 | 50.1 | 998 | 50.1 |
473.astar | 8 | 1189 | 47.2 | 1191 | 47.2 | 1190 | 47.2 | 8 | 1104 | 50.9 | 1106 | 50.8 | 1107 | 50.7 |
483.xalancbmk | 8 | 705 | 78.4 | 704 | 78.4 | 704 | 78.4 | 8 | 705 | 78.4 | 704 | 78.4 | 704 | 78.4 |
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores (default)
All binaries were built with 32-bit Intel compiler except: 401.bzip2 and 456.hmmer in peak were built with 64-bit Intel compiler by changing the path for include and library files. For information about Fujitsu Siemens Computers please see: http://www.fujitsu-siemens.com
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-fast -inline-calloc -opt-malloc-options=3 |
-xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
icpc |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
429.mcf: | -fast -prefetch |
445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
483.xalancbmk: | basepeak = yes |
